EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to70Bar |

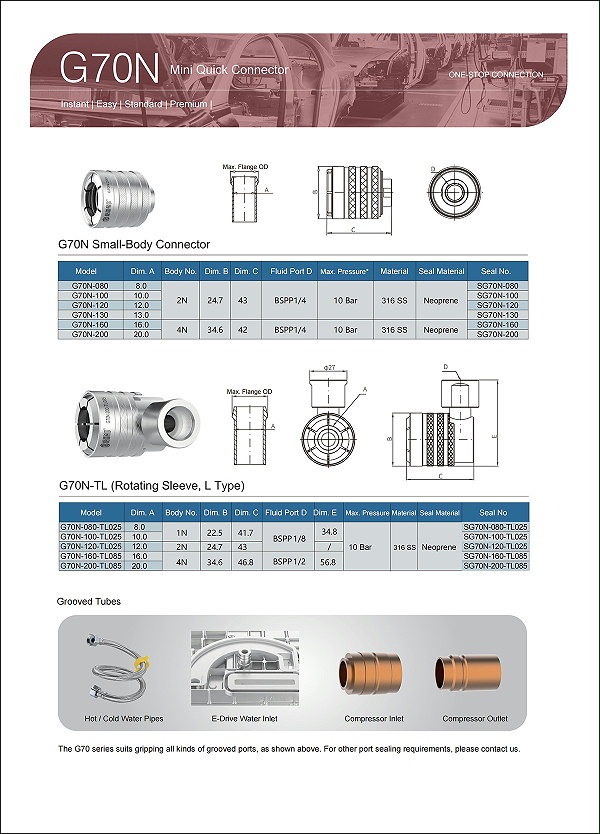

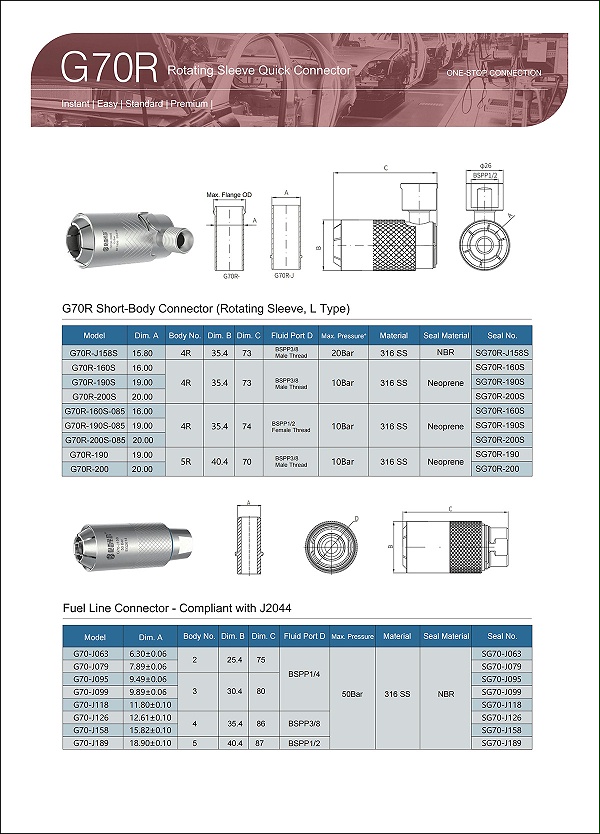

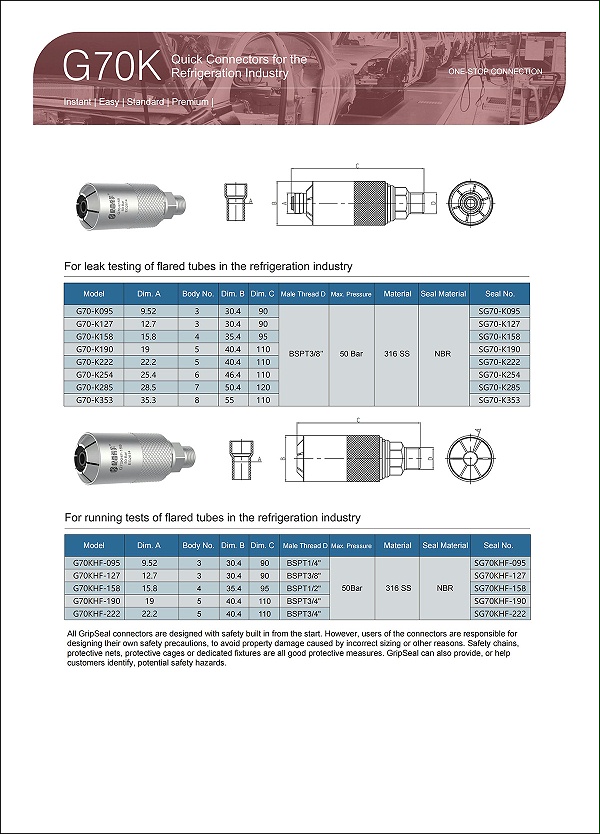

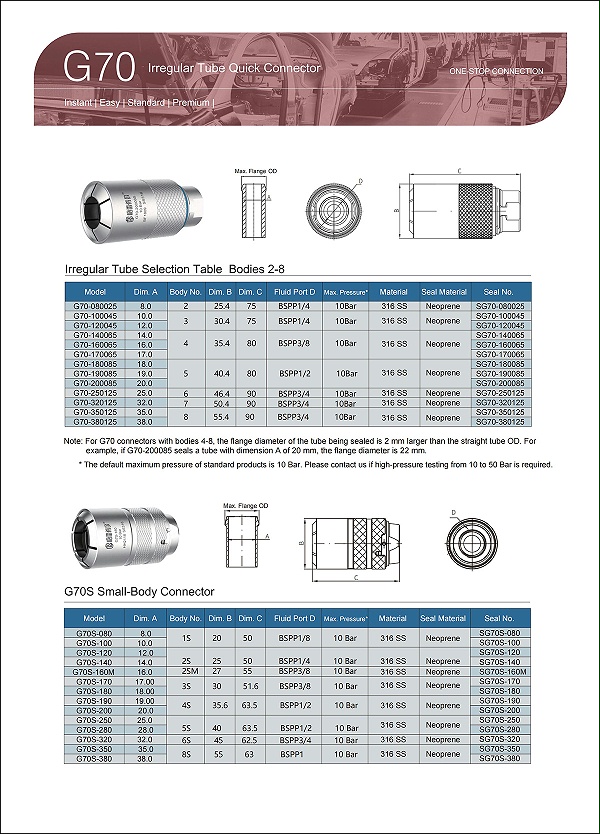

| Sealing range | Refer to the selection table |
| Top raised width | 4mm-8mm |
| traffic interface |
Refer to the selection table |
| main material | 316stainless steel |
| Main sealing ring material | Neoprene rubber, nitrile rubber |
| Internal sealing ring material | Nitrile rubber |
| operating temperature | -20℃-120℃ |
Product video
G70Conventional Quick Seal Connectors-Use the operation tutorial
Product parameters

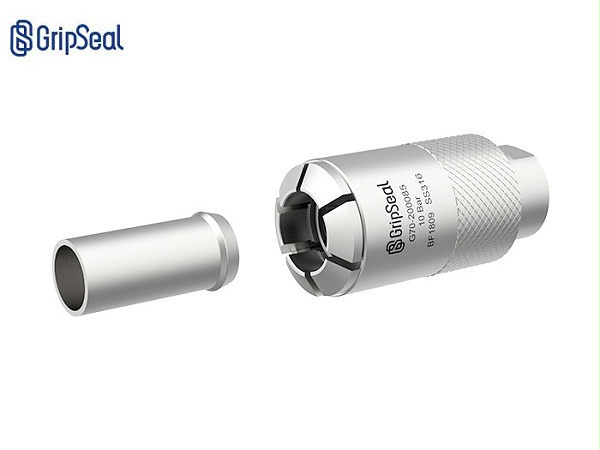

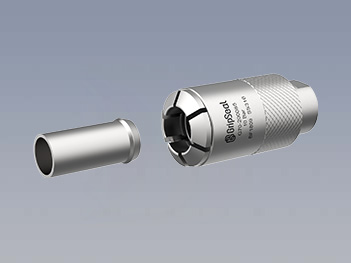

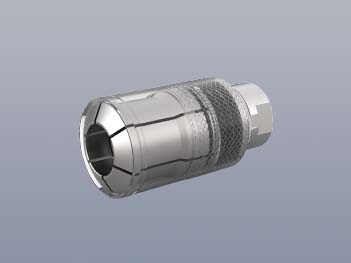

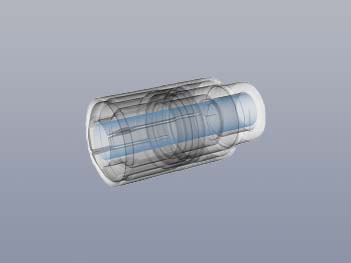

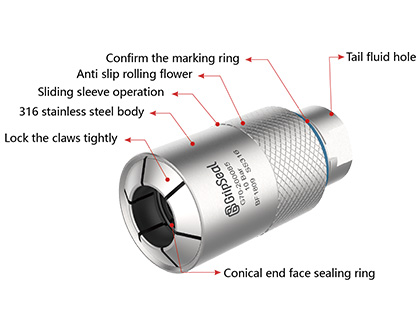

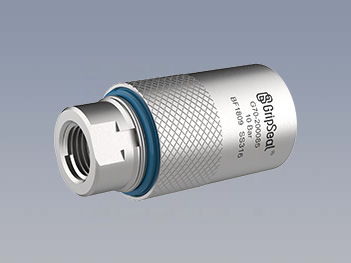

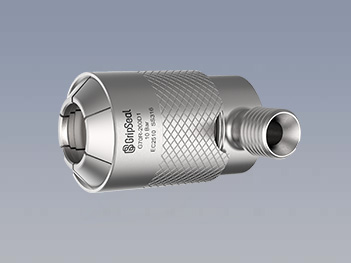

External clamp jaw locking, direct grab tube end raised feature
Reticulated knurling for increased friction and easy operation
Sliding sleeve structure, easy to push to achieve locking and disconnection
Pass-through design to reduce the loss of traffic and ensure the accuracy of test results

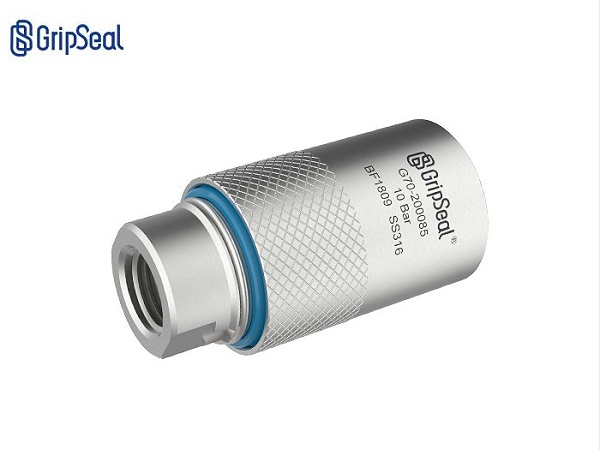

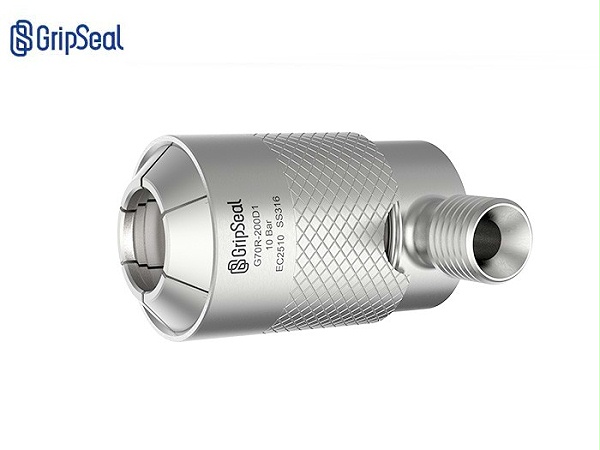

Side water intake:G70RType, with side water inlet option, shorter connector, suitable for tight spaces
Operation method

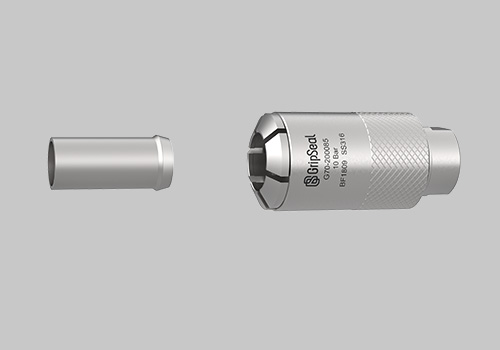

Align the joint to the pipe to be sealed

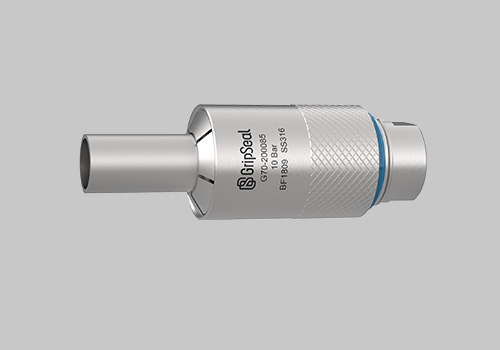

Push the joint to form a seal
G70P series lossless quick connector

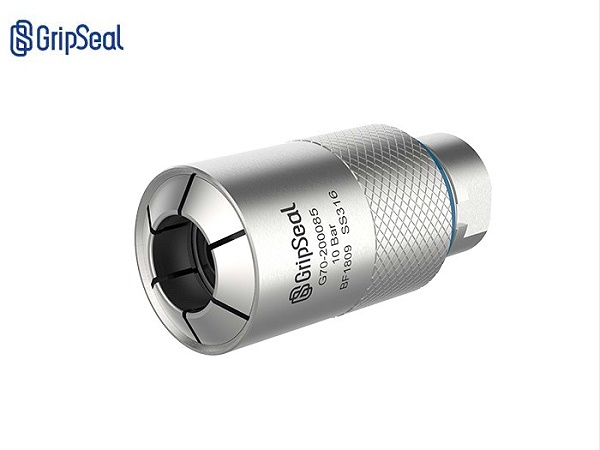

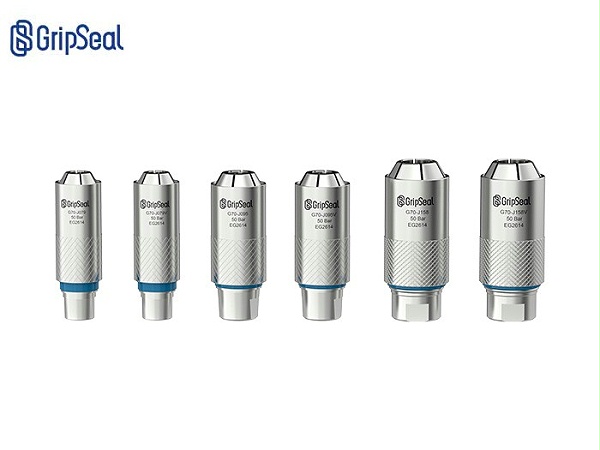

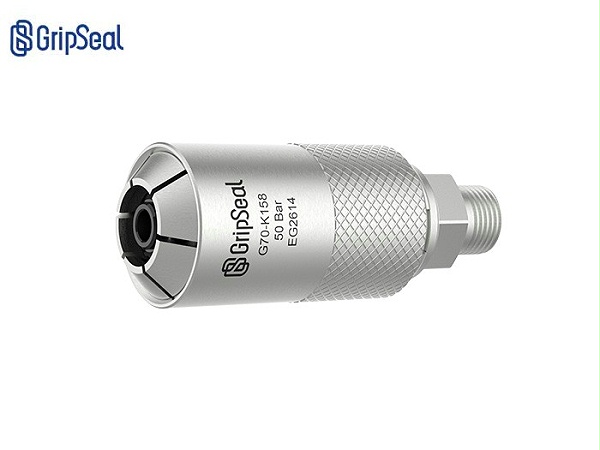

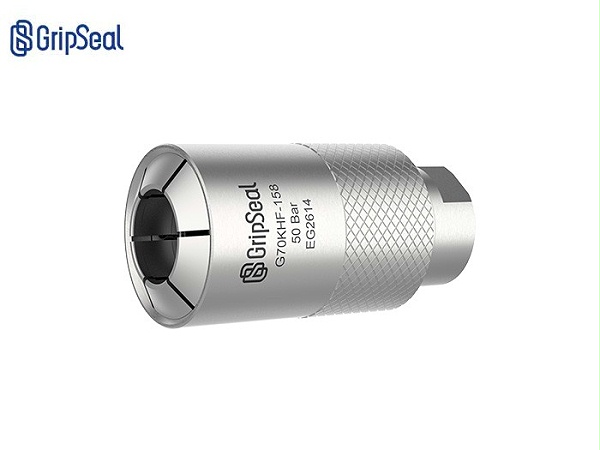

G70 series special-shaped tube quick connector
