EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to10Bar |

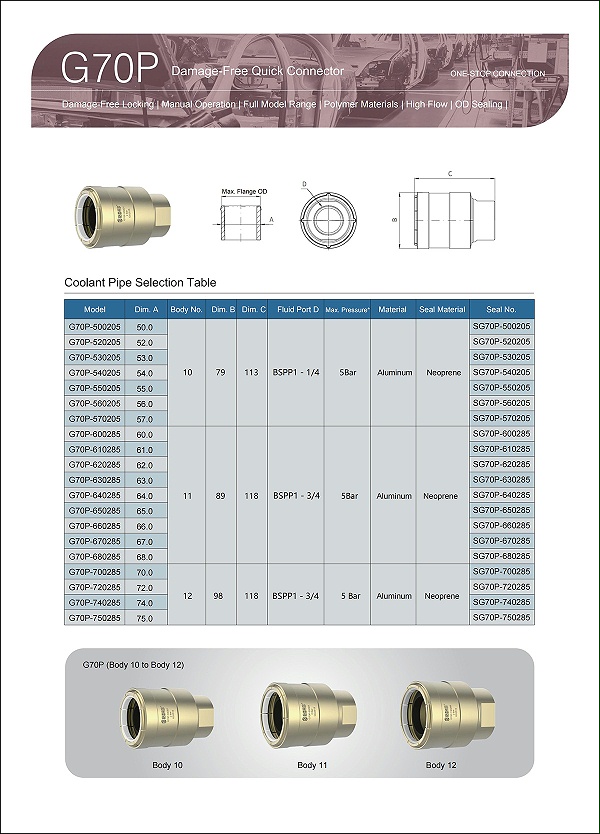

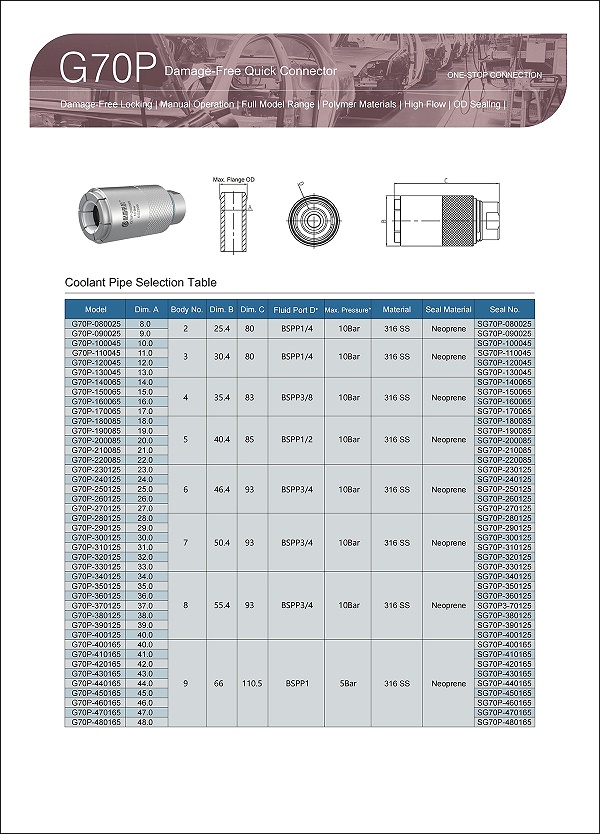

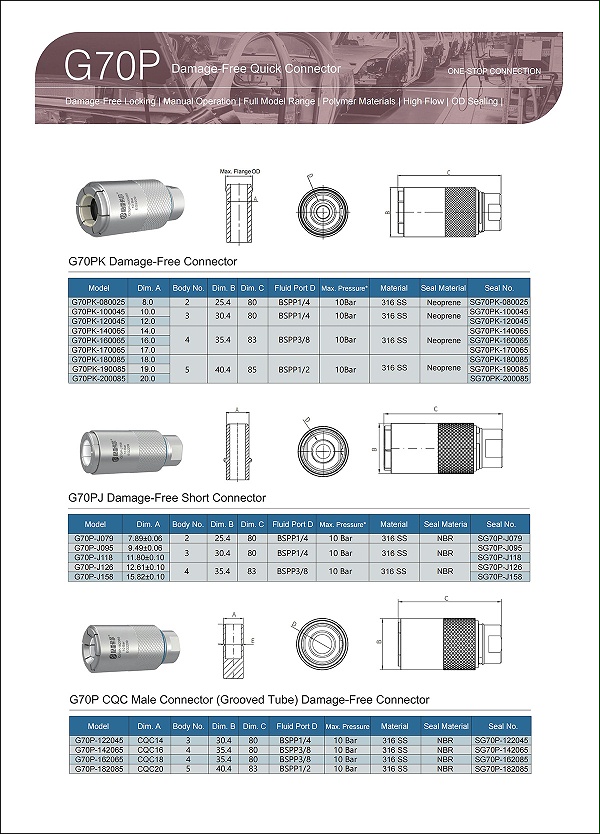

| Sealing range | Refer to the selection table |
| Top raised width | 4mm-8mm |
| traffic interface | Refer to the selection table |
| main material | 316stainless steel |
| Main sealing ring material | Neoprene, silicone |
| Internal sealing ring material | Nitrile rubber, EPDM |
| operating temperature | -20℃-120℃ |
Product video
G70PConventional Quick Seal Connectors-Use the operation tutorial

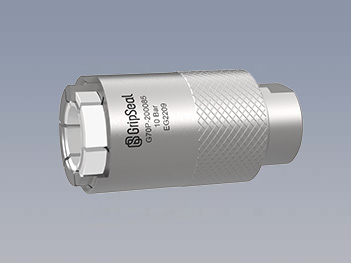

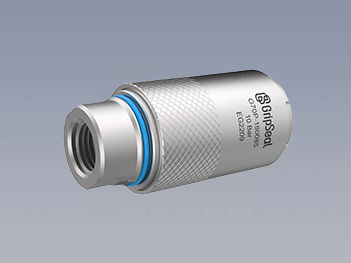

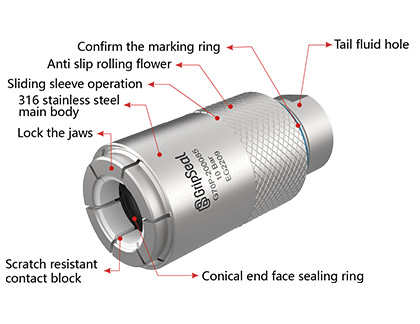

Product parameters

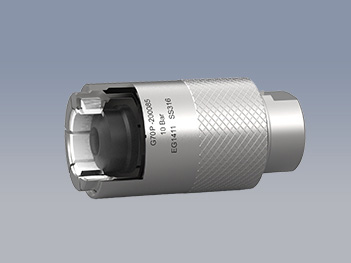

Polymer claws: no scratches on customer products
Reticulated knurling: increases friction and is easy to operate
Sliding sleeve structure: easy to push to achieve locking and disconnection

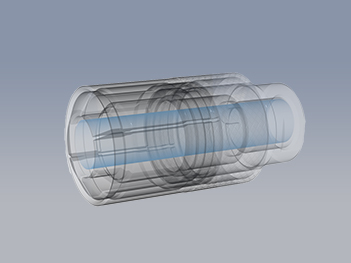

Pass-through design: reduce the loss of traffic and ensure the accuracy of test results
End face sealing ring: simple to replace and easy to maintain

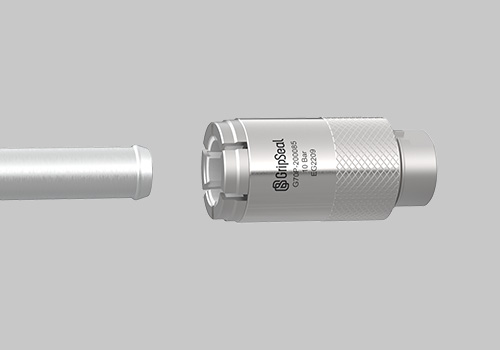

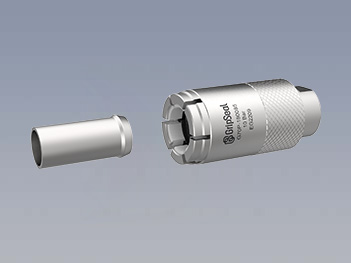

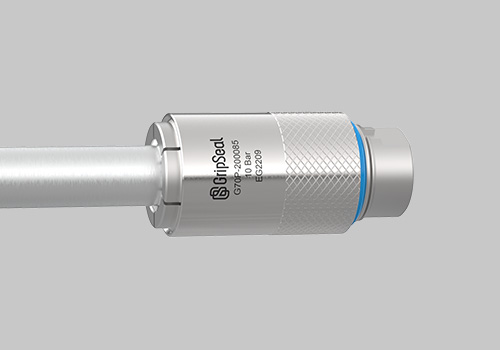

Operation method
Align the fitting to be sealed.
Push the connector to form a connection
New energy battery water cooling board test
Motor cooling system
Engine cooling water channel test

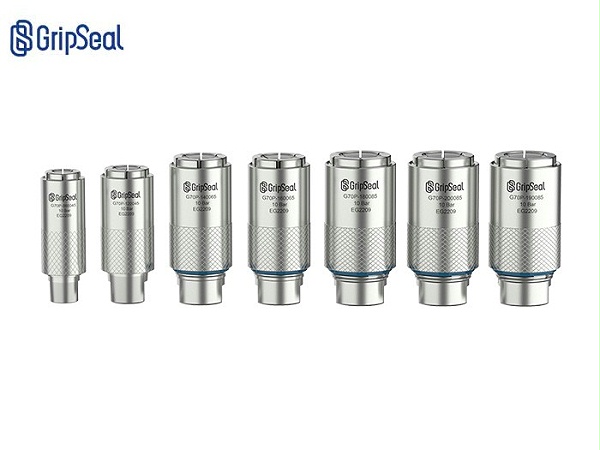

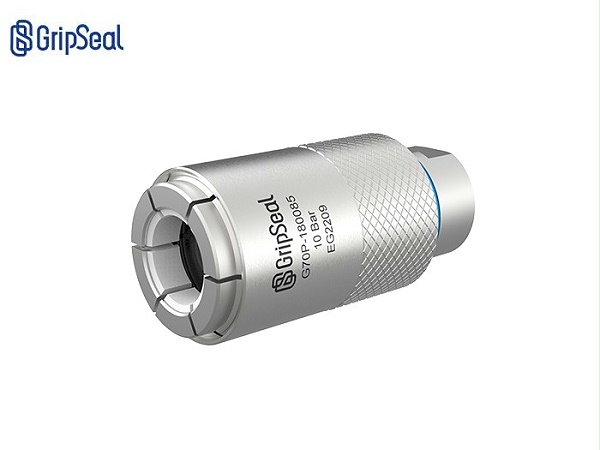

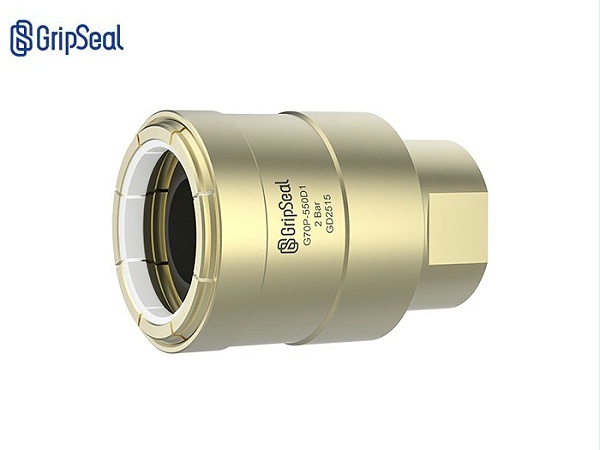

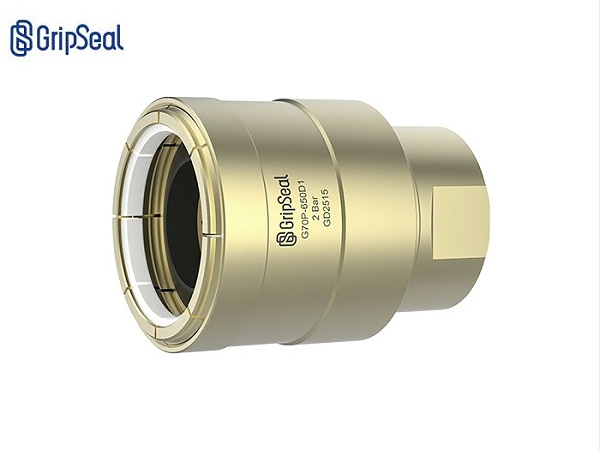

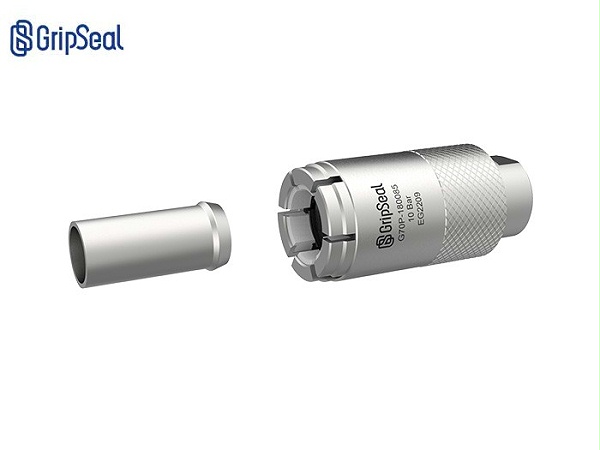

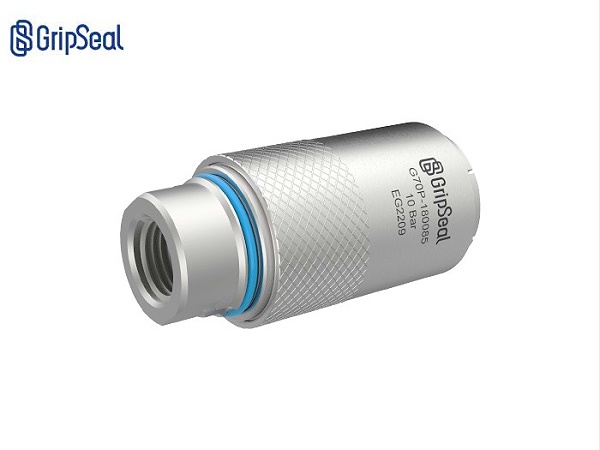

G70P series lossless quick connector
