Case name

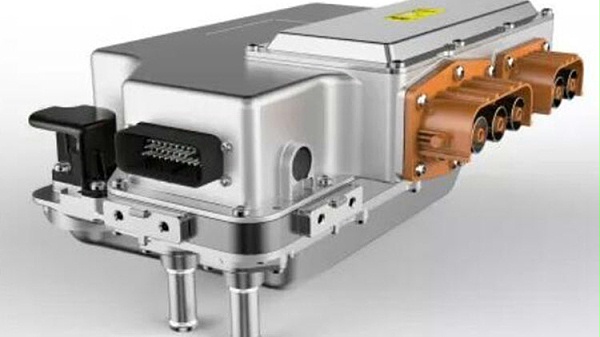

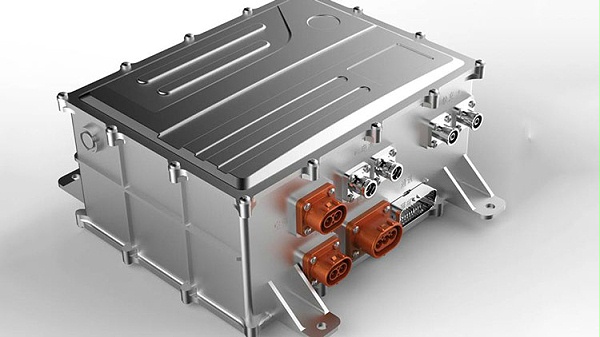

Electric vehicle motor airtight detectionQuick seal joint

customer demand

The industry manufacturer customer is a technology R & D and manufacturing enterprise of new energy vehicle motors and their controllers. The drive motors used in electric vehicles are different from conventional industrial motors and have stricter requirements. At present, the application of electric vehicle motors is increasingly common. In order to prevent the motor from malfunctioning due to low insulation resistance, it is necessary to ensure that the whole motor and the cooling water pipe have good airtightness. Among them, the electric vehicle motor system uses a leak detector to test the airtightness of the motor waterway, and some pipes need to be blocked, so a quick sealing joint is required.

Program introduction

Through the understanding of customer products, we provide customers withGripSealQuick Seal Connector Solution. SelectG25Series sealing joints,G25It is an internal expansion type manual quick connector for different inner diameter interfaces. Whether the sealing surface is a machine-added surface or a partially cast surface, an effective seal can be formed. It has the characteristics of simple operation, adaptive adjustment and convenient maintenance.

Program advantage

Realize fast sealing connection, complete series of models, high-quality material selection, reliable and durable, fast operation, and improve overall testing efficiency.

Customer feedback

Use GripSealQuick sealing joints are used for airtightness testing of motors, significantly reducing the labor intensity of operators and reducing the risk of misjudgment in testing. They are connected in one second and sealed instantaneously. We are very satisfied with GripSeal product quality and service.

application development

GripSealQuick-sealing connectors can also be applied to other test items of new energy vehicles, such as motor controller testing, battery testingPACKInclude cooling water plate and corresponding brake system, heat dissipation, axle, steering gear, pipeline, pump valve and other quick sealing connection tests.

related products

G25Series Quick Seal Coupling、G35Series Quick Seal Coupling。
