EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to10Bar |
| minimum insertion depth | 0,1,2No. Body:15mm |
| traffic interface | G1/8;G3/8;G1/2Threaded hole |
| main material | aluminum alloy |
| Main sealing ring material | neoprene/Medical silicone |
| Internal sealing ring material | Nitrile rubber |
| operating temperature | -20℃-120℃ |
Product video
G10Dseries-Automatic double force cylinder design operation video

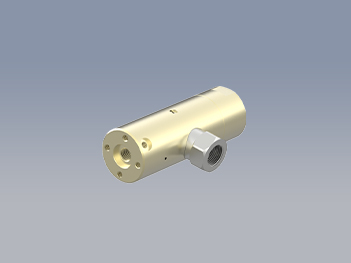

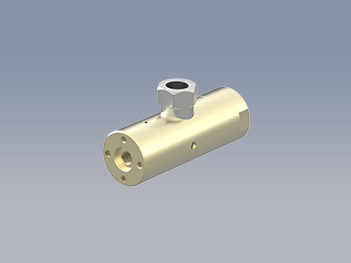

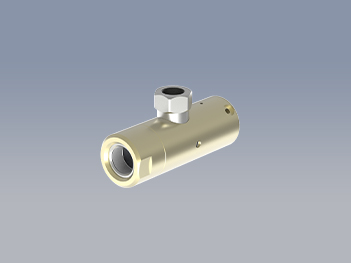

Product parameters

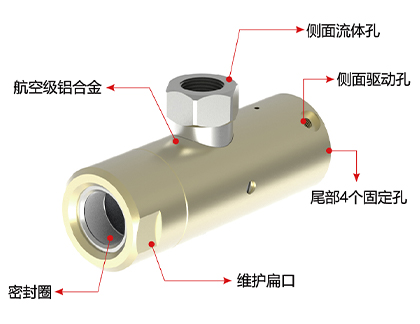

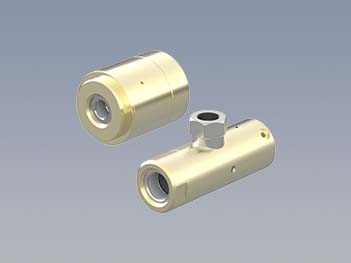

Side fluid holes: convenient for on-site wiring
Flexible customization: smaller outer diameter:G10DMore slender, suitable for space-constrained scenarios
Double thrust: stable seal extrusion pressure to maintain the stability of test results.

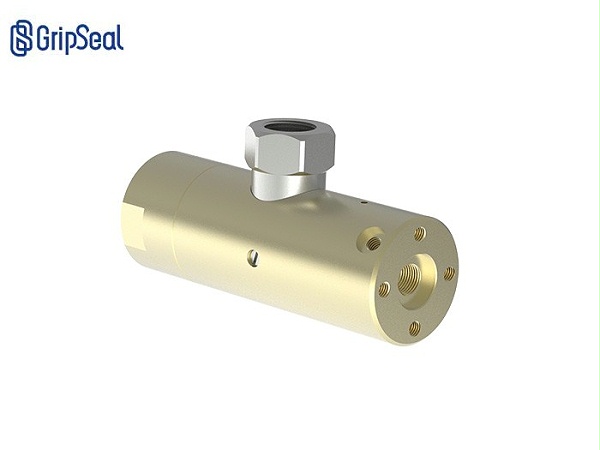

Multiple drive holes: Configure side and bottom drive holes at the same time, and choose flexibly according to the actual situation.
Maintenance flat mouth: easy to disassemble the connector, easy to maintain and replace the sealing ring.
Operation method

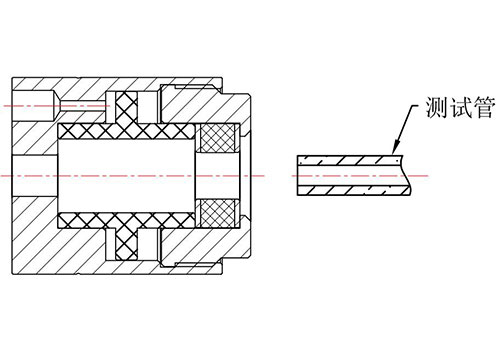

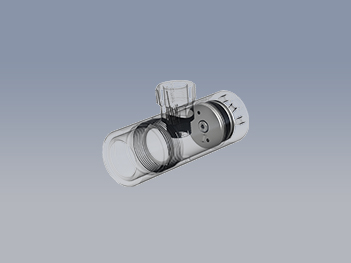

Place the test tubeG10Series, front-end test port
The air is fed from the driving hole. At this time, the sealing ring is squeezed, resulting in expansion, and then it is close to the outer wall of the test tube to form a seal.

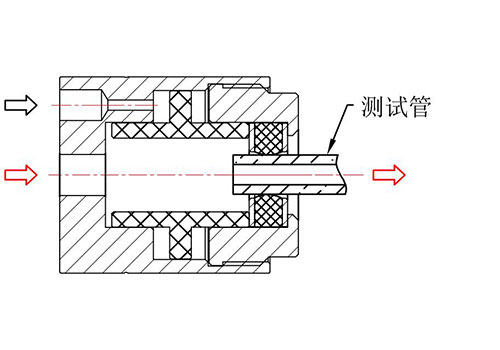

When the seal is formed, the test medium (e.g. compressed air, test liquid, etc.) is filled into the test hole at this time.
