G90 Pressure Bar Quick Connectors

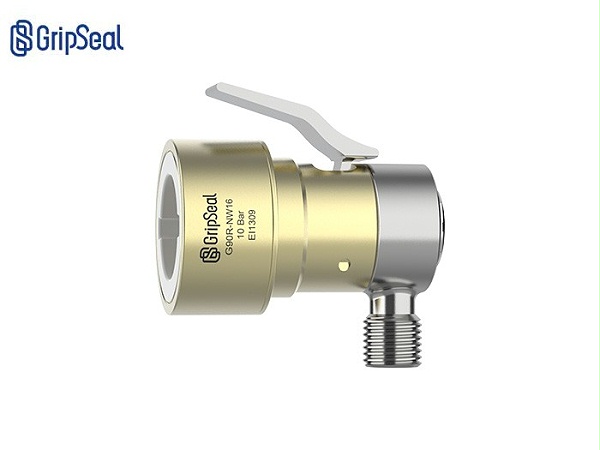

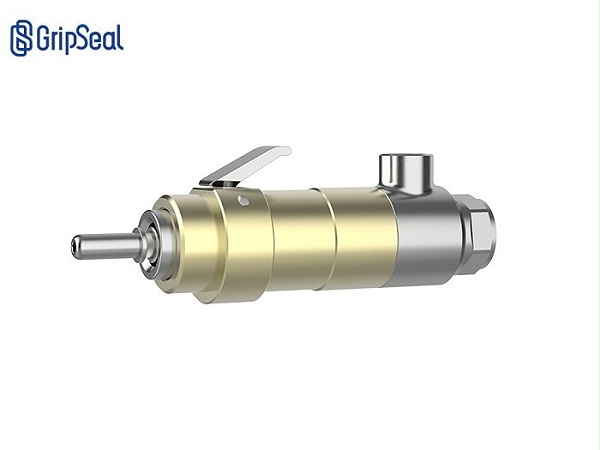

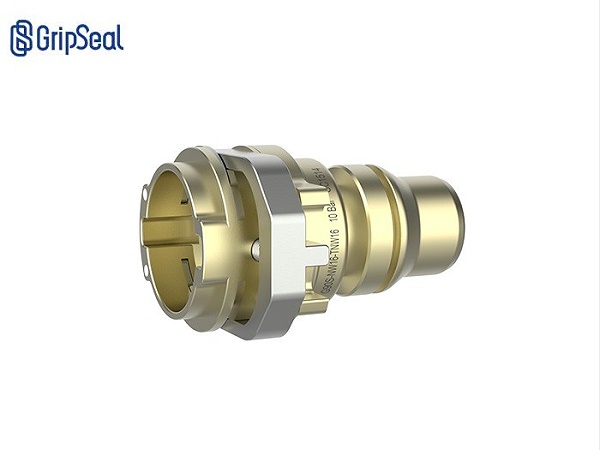

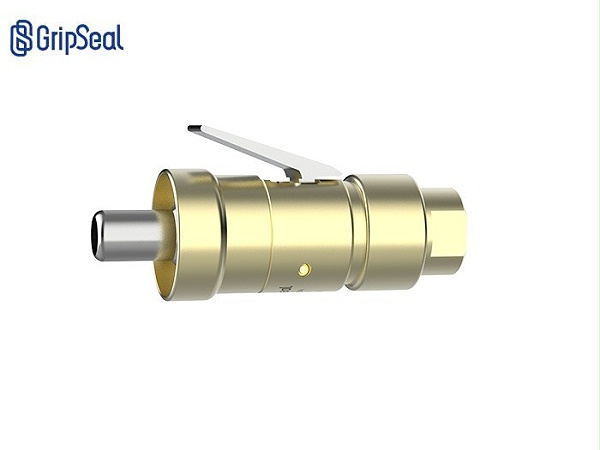

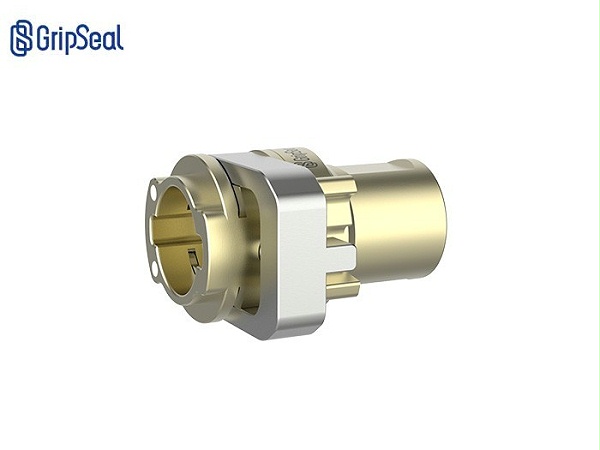

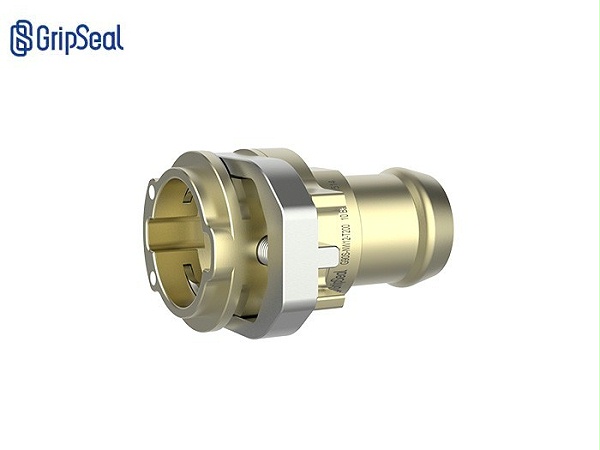

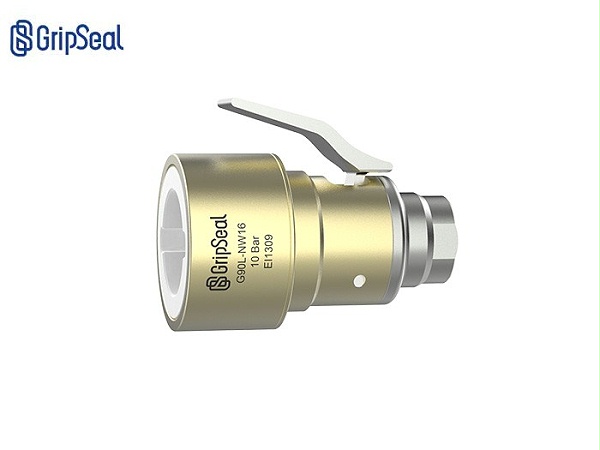

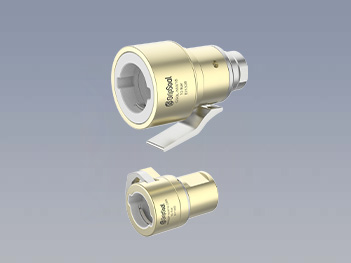

G90 series pressure bar connector

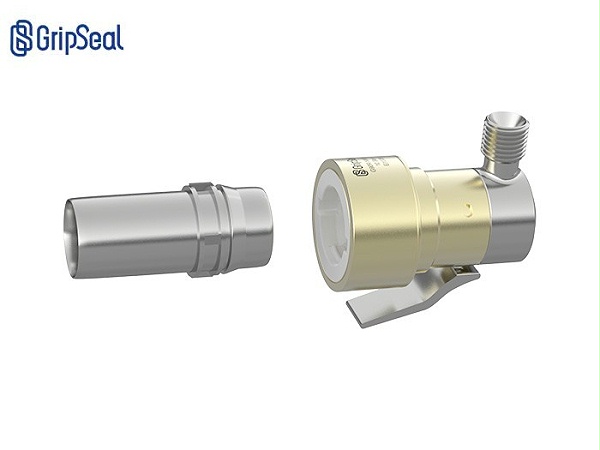

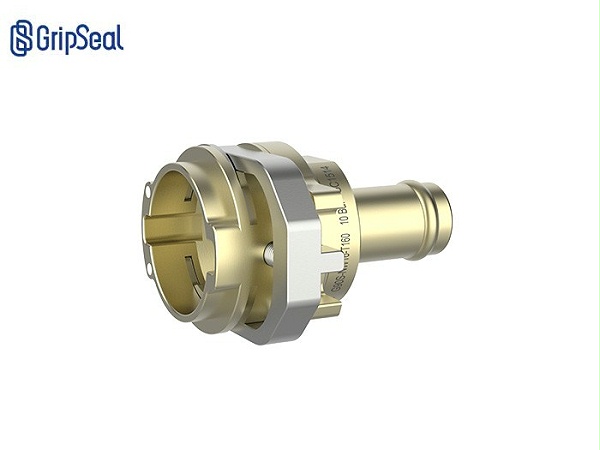

The G90 series connector is a pressure bar type manual connector. The main body is made of aluminum alloy, which reduces the operating strength while ensuring the strength of the connector. The internal structure is designed with a special structure, which will not damage the surface of the customer's product and ensure the integrity of the customer's appearance. It is widely used in engine fuel rails and new energy cooling nozzles.

EMAIL:info@gripseal.com

product parameters

Product parameters

Maximum operating pressure	From vacuum to10Bar
minimum insertion depth	10mm-56mm
traffic interface	G1/8，G1/4，G3/8，G1/2
main material	Aluminum alloy, stainless steel, nylon
Main sealing ring material	Nitrile rubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

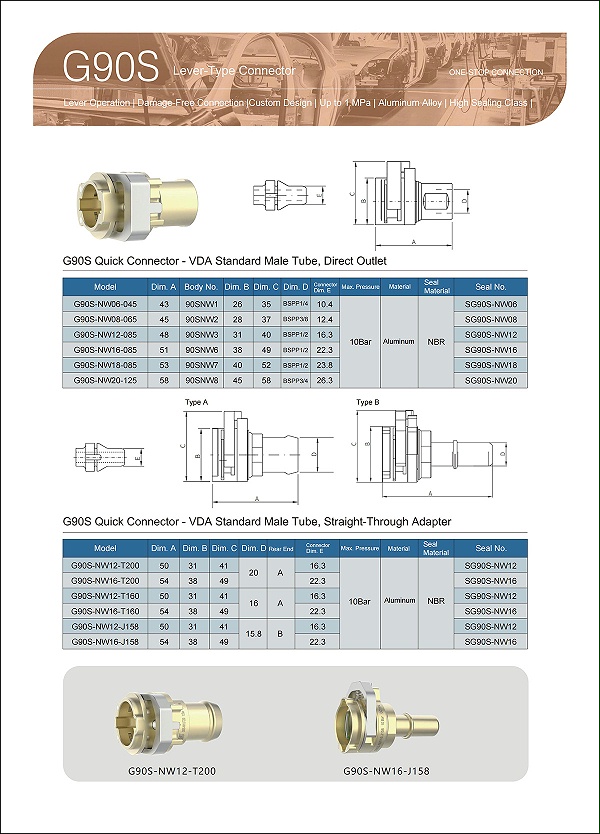

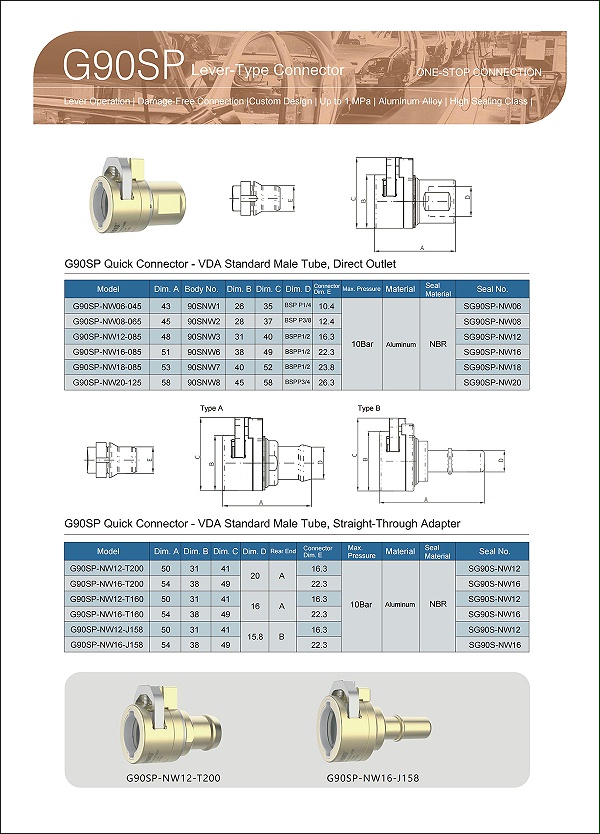

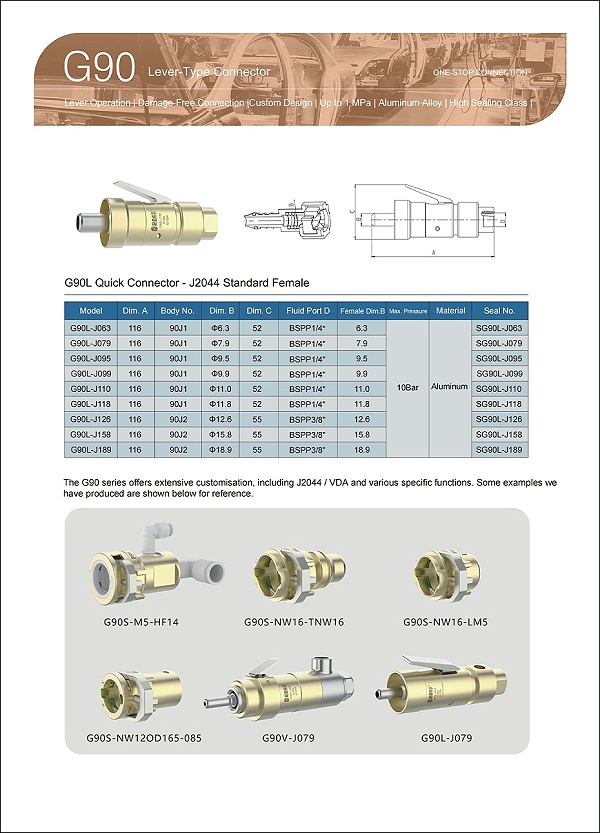

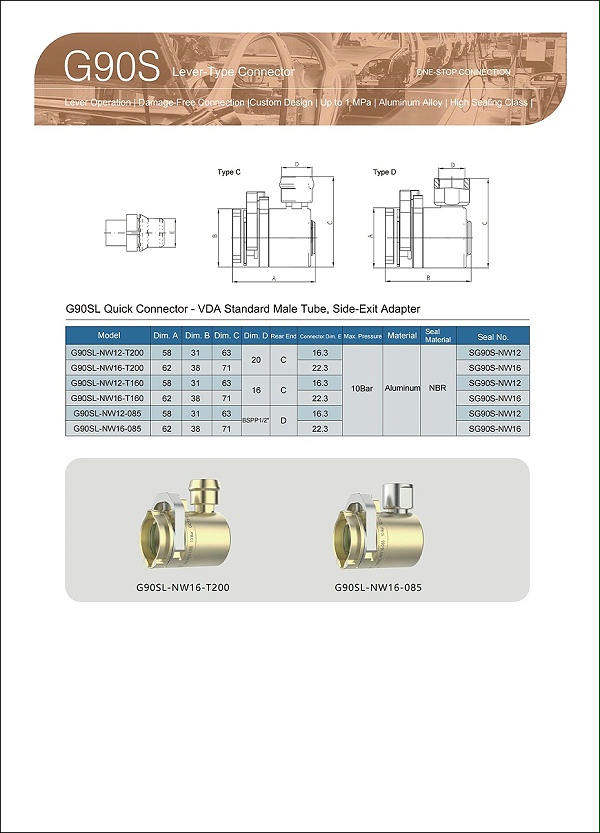

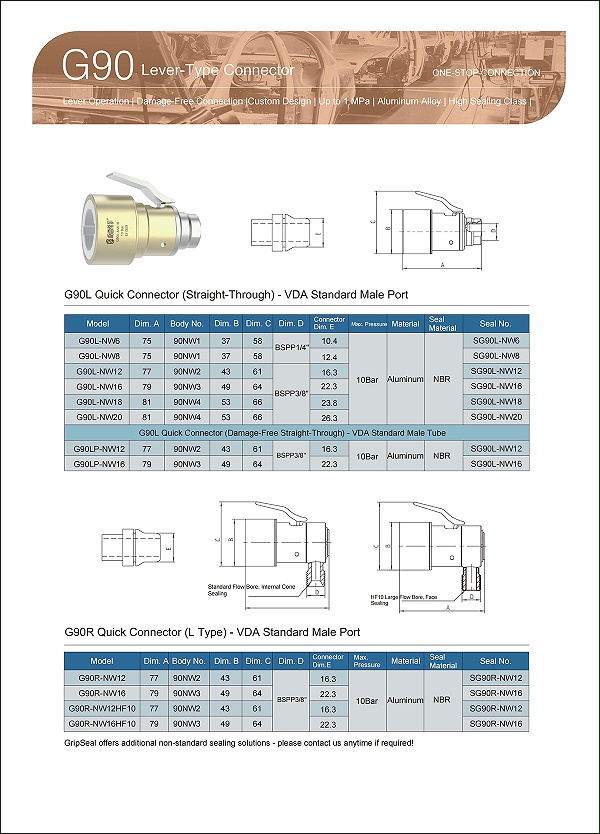

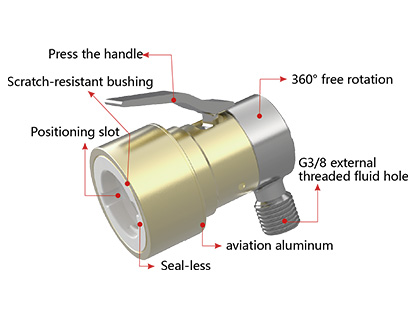

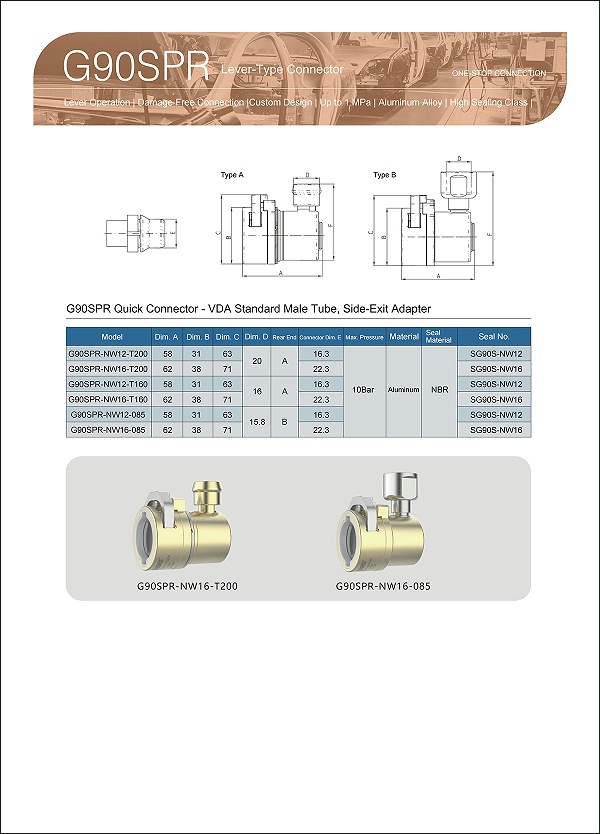

G90 Quick connector specifications and parameters

Product video

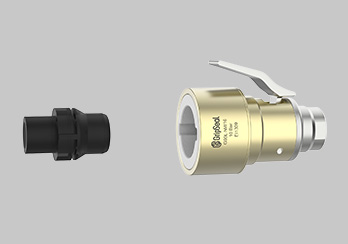

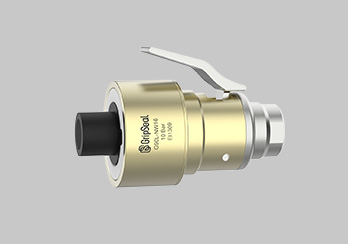

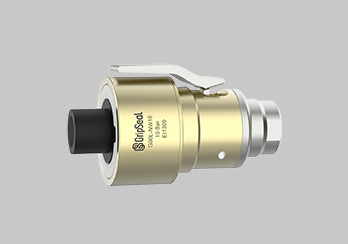

G90series-1Second implementationVDANozzle connection video demonstration

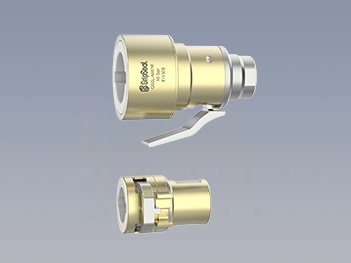

Product features

Product parameters

: Two operation methods: handle operation or button operation

: Optional orientation: Through and side air intakes are optional, flexibly configured according to the on-site environment

: Lossless connection: usePEEKInsert design, and polymer piston nesting, for aluminum alloy or plasticVDAStructural connection without damage

: Mini subjects: Mini subjects are suitable for scenarios with positional interference and have a wide range of adaptability

: Adapter function:G90SP/G90SPRProvide a variety of through or side-out adaptations for other forms of pipe fittings,Including flanged tubes,J2044Even threaded joints, etc
