EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to10Bar |
| minimum insertion depth | 10mm-56mm |
| traffic interface | G1/8，G1/4，G3/8，G1/2 |
| main material | Aluminum alloy, stainless steel, nylon |
| Main sealing ring material | Nitrile rubber |
| Internal sealing ring material | Nitrile rubber |
| operating temperature | -20℃-120℃ |
Product video
G90SSeries Quick Connectors-operation video
Product parameters

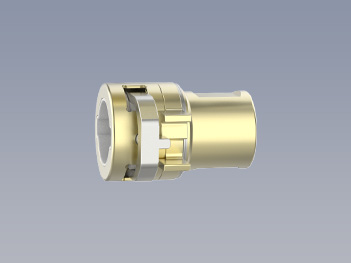

Button operation:
Easily pinch the button to operate

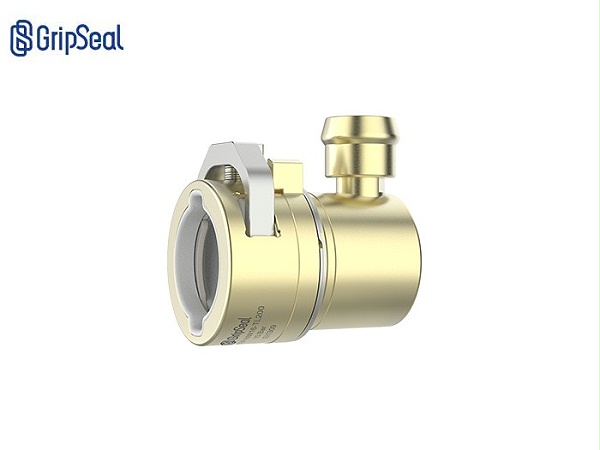

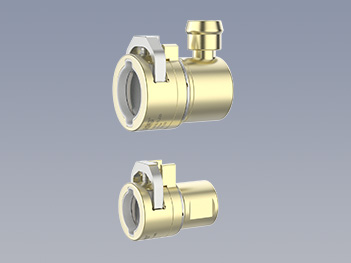

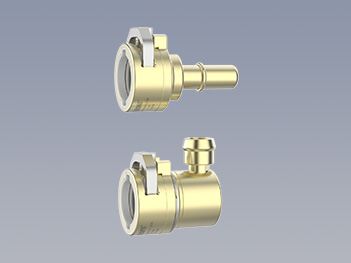

Optional orientation: Through and side air intakes are optional, flexibly configured according to the on-site environment

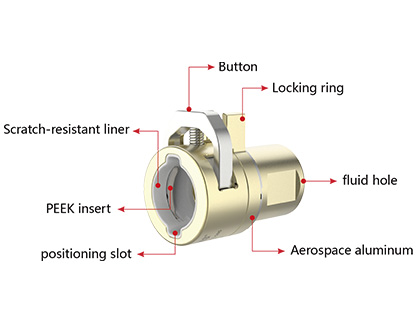

Lossless connection: usePEEKInsert design, and polymer piston nesting, for aluminum alloy or plasticVDAStructural connection without damage

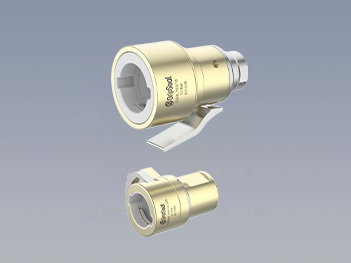

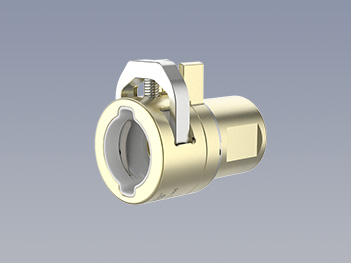

Mini subjects: Mini subjects are suitable for scenarios with positional interference and have a wide range of adaptability

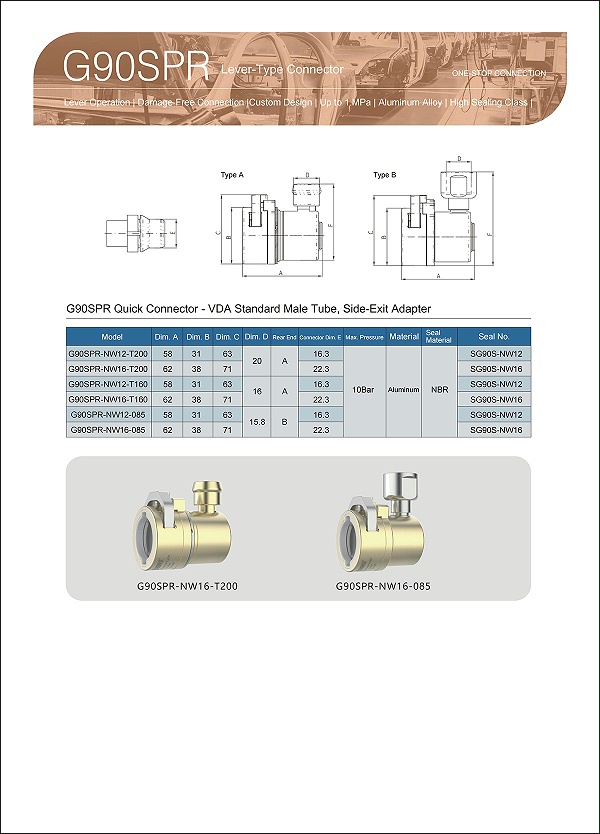

Adapter function:G90SP/G90SPRProvide a variety of through or side-out adaptations for other forms of pipe fittings,Including flanged tubes,J2044Even threaded joints, etc
Operation method

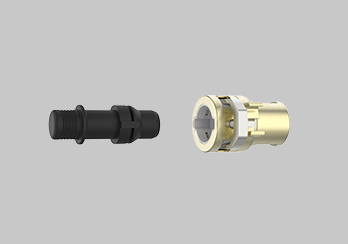

Align the quick connector with the female head.

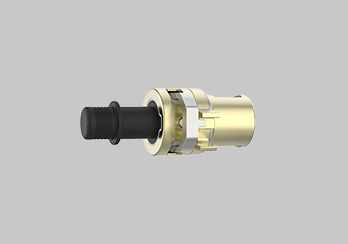

Insert to form a seal

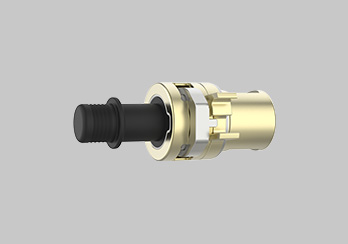

Press and hold the side button to easily unplug

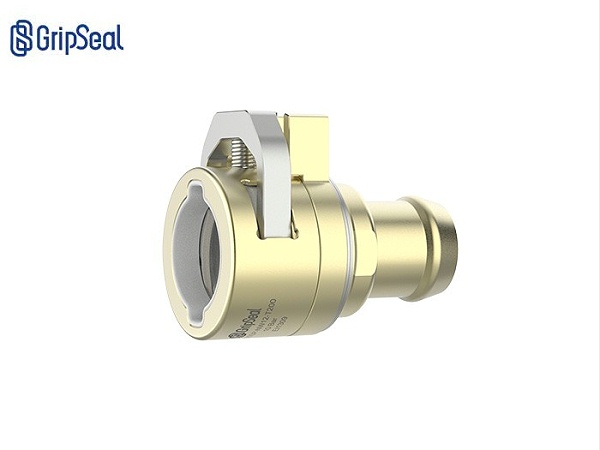

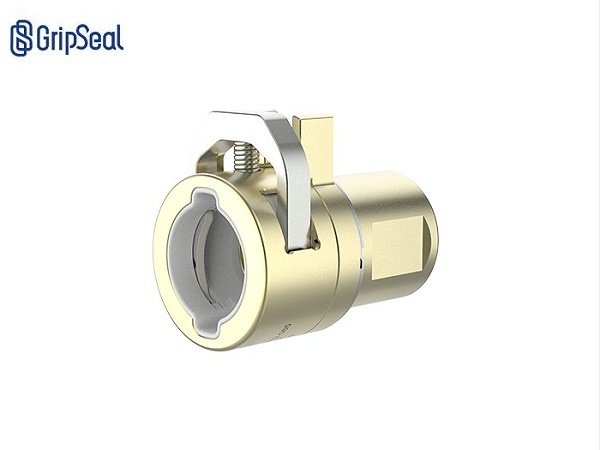

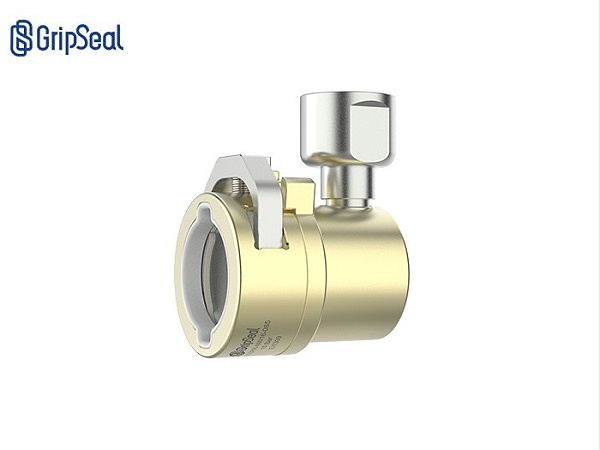

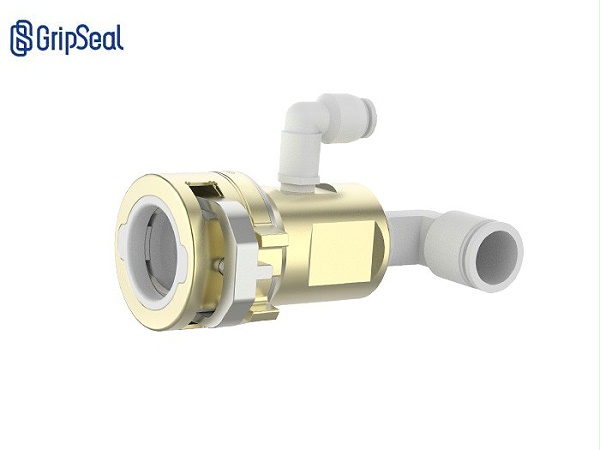

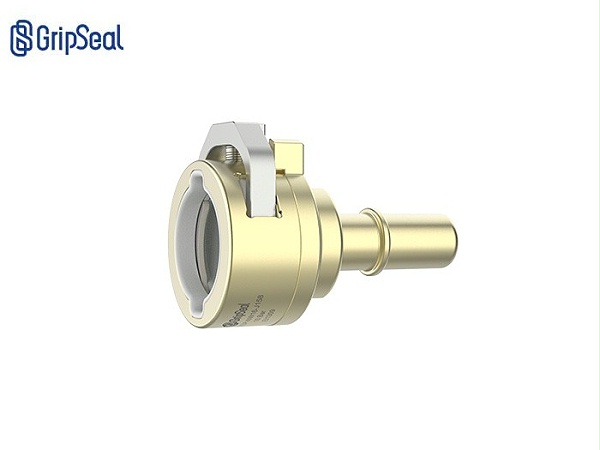

G90SP series lossless connector
G90 series pressure bar connector
