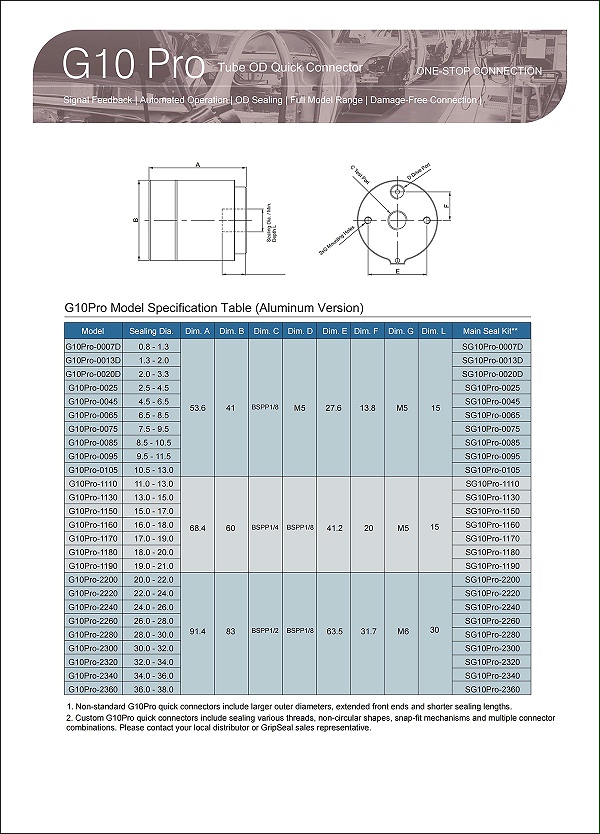

EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to35Bar |
| Sealing range | 2.5mm-38mm |
| minimum insertion depth | 1,2No. Body:15mm，3,4No. Body:30mm |
| traffic interface | G1/8;G1/4;G1/2Threaded hole |
| main material | Aluminum alloy, stainless steel |
| Main sealing ring material | Neoprene, silicone rubber |
| Internal sealing ring material | Nitrile rubber |
| operating temperature | -20℃-120℃ |
Product video

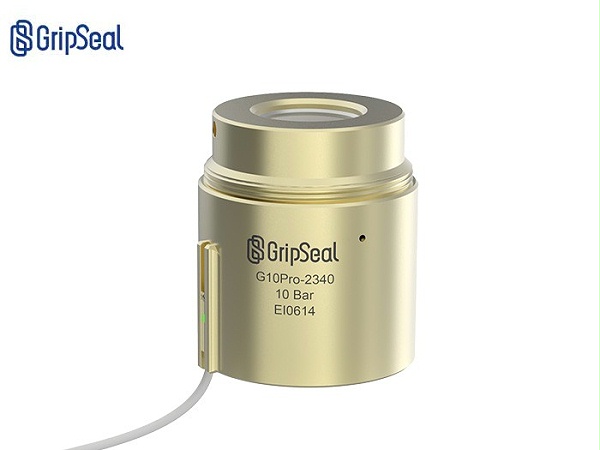

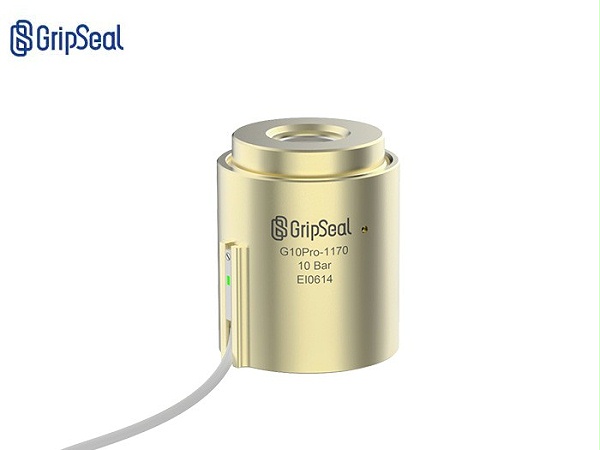

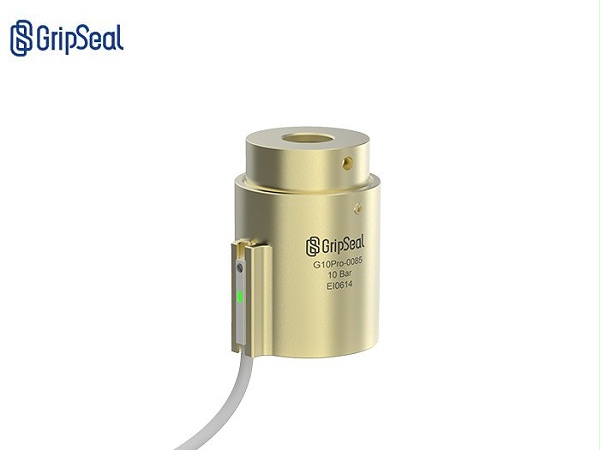

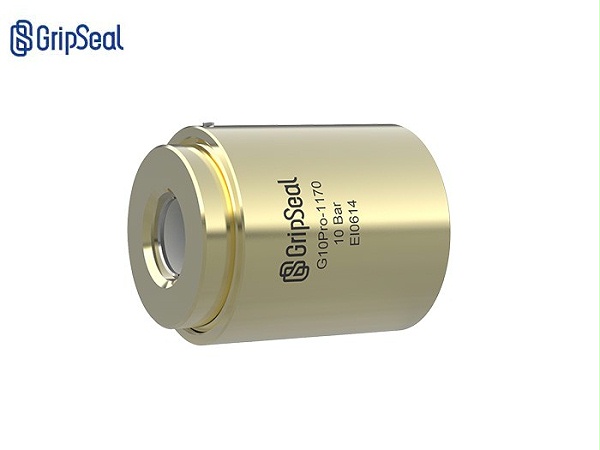

G10ProSeries tube outer diameter intelligent connector video

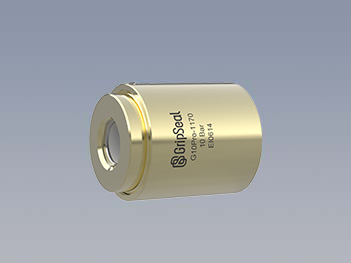

Product parameters

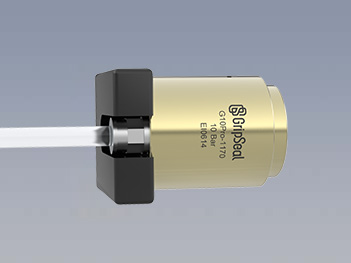

Damage-free sealed connection, no damage to the appearance of the product

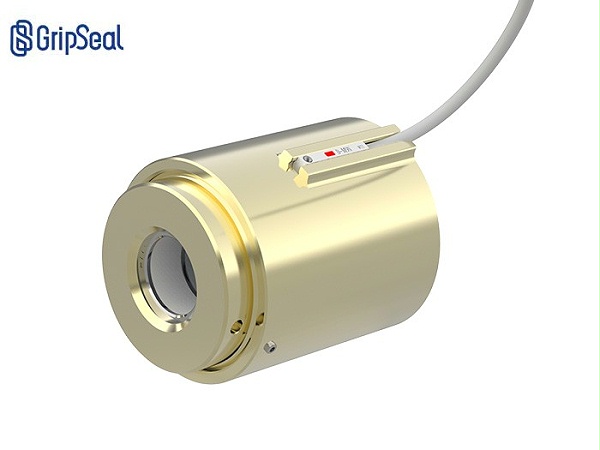

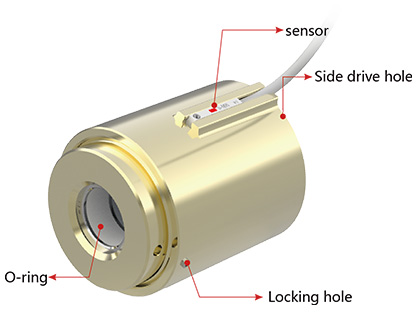

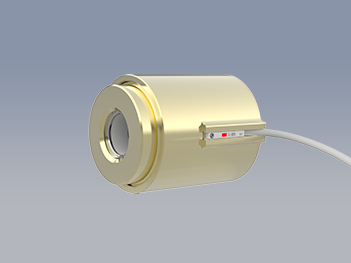

Position sensor, real-time feedback on whether the internal piston is moving

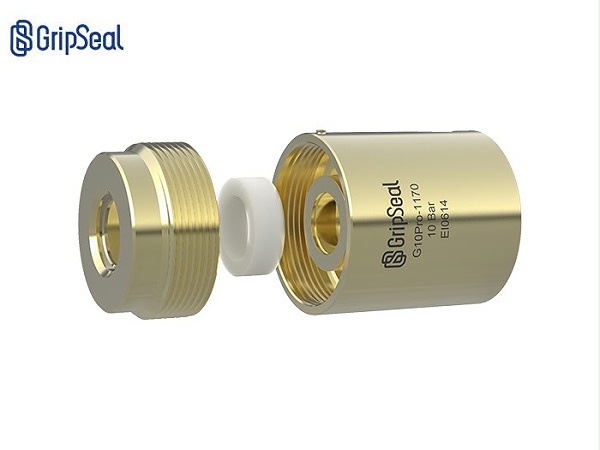

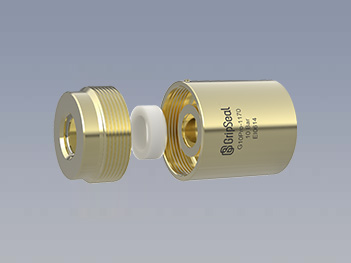

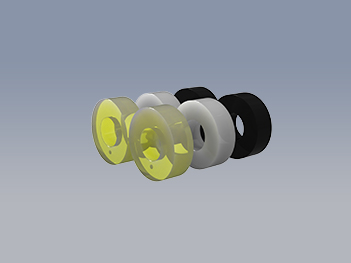

Quick replacement of sealing ring: simple dimension, extended service life
Sealing ring material: material optional to meet different needs of customers
Automated operation: more efficient, more stable test results
Operation method
fixedG10ProTo the cylinder fixture and connect the drive interface (4-6bar) and test the interface, and set the fixed sensor according to the sensor.

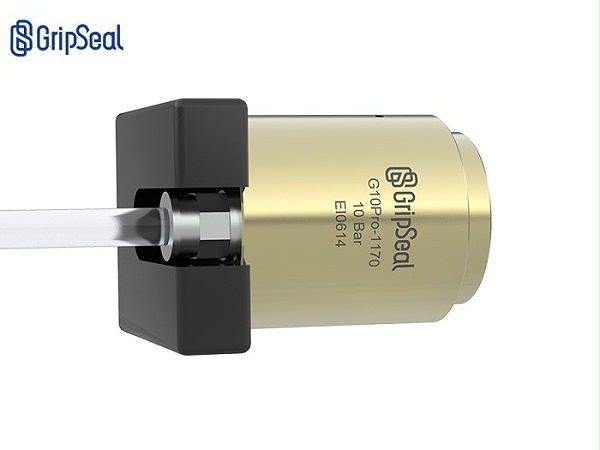

a,Cylinder pushG10ProConnect to the sealing position to ensure that the main sealing ring is within the outer diameter of the product under test.

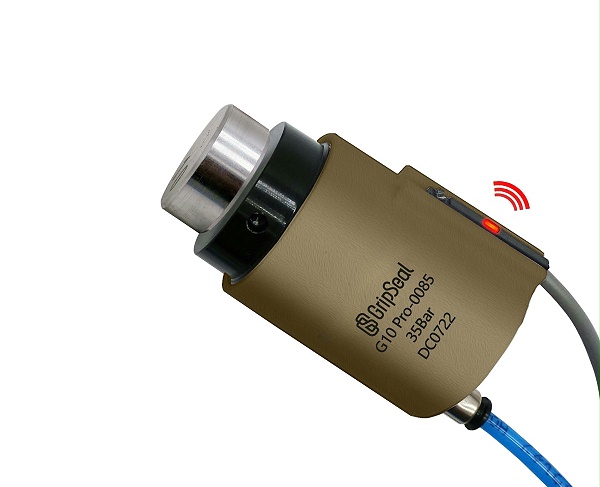

b,Pressurize the drive interface, the main seal will inward expand to seal the outer diameter of the product under test, and the sensor light will be on.

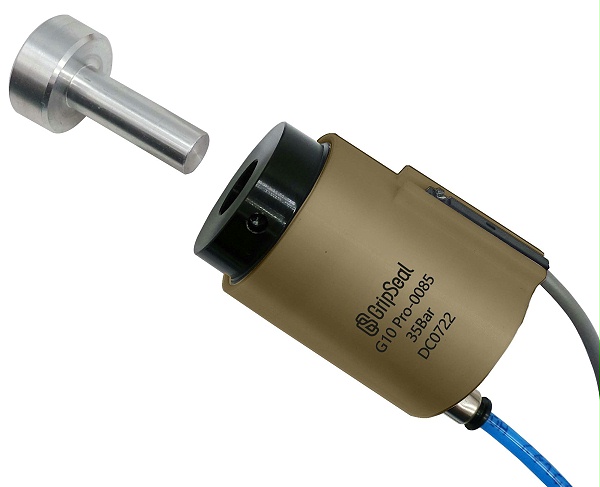

c,Test interface through the test gas or other media, start the test until the completion of the test pressure relief.
Pressure relief to the drive interface, sensor light off, stay0.5-1second,6Cylinder returnG10ProConnector to the initial position, press2-6Prepare for the next test.

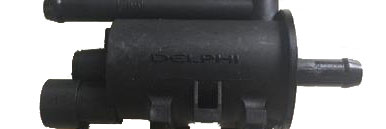

Carbon can

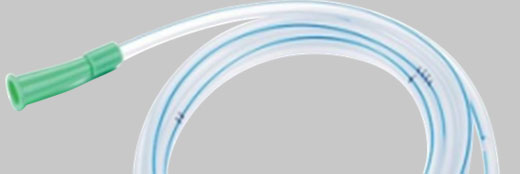

Medical catheter

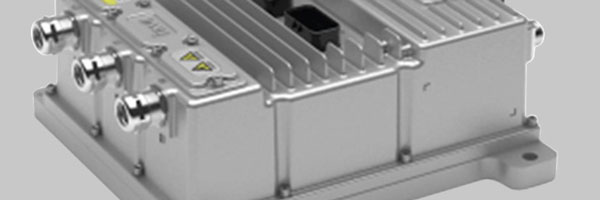

Motor control box
