EMAIL:info@gripseal.comProduct parameters

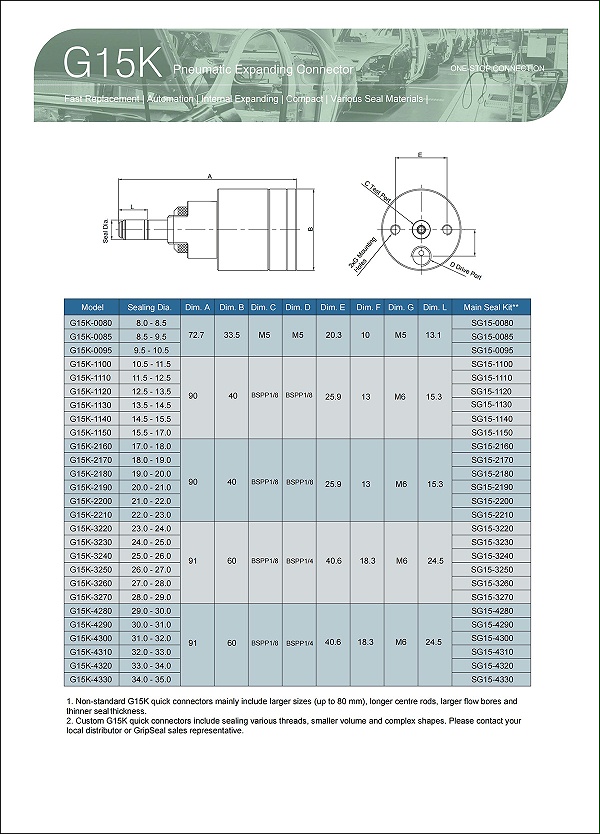

| Maximum operating pressure | From vacuum to8Bar |
| Sealing range | 8.5mm-35mm |
| minimum insertion depth | 1,2No. Body:15mm，3,4No. Body:25mm |
| traffic interface | M5,G1/8 |
| main material | aluminum alloy |
| Main sealing ring material | neoprene/polyurethane/silicone rubber |
| Internal sealing ring material | Nitrile rubber |
| operating temperature | -20℃-120℃ |
Product video
G15K series-Sealing ring replacement operation video in seconds
Product parameters

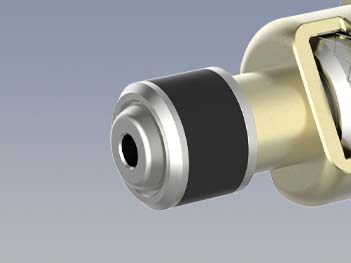

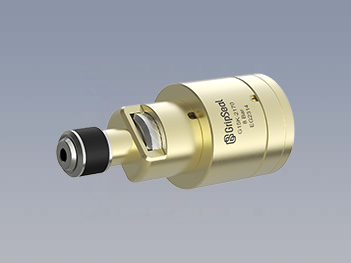

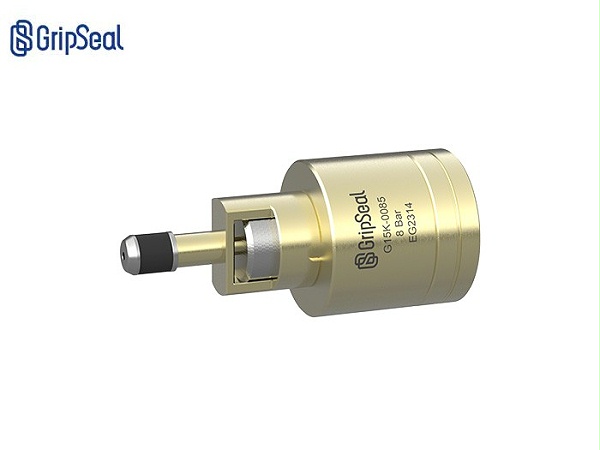

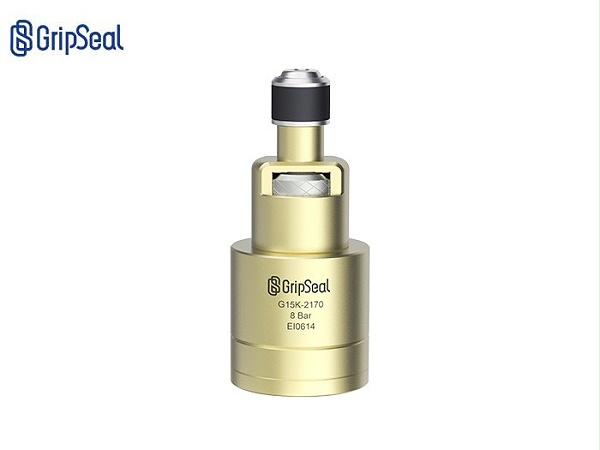

Internal expansion seal: the seal ring expands to form a seal

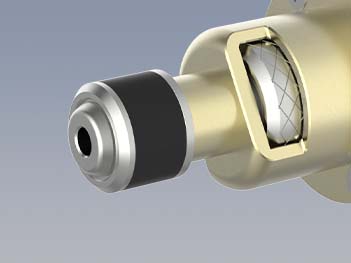

Quick replacement: quick replacement of sealing rings, reducing maintenance time and cost

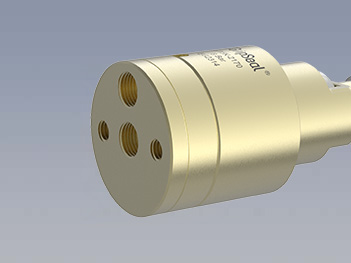

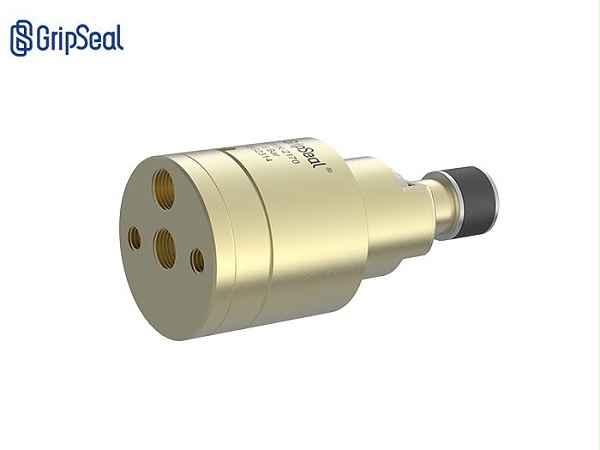

Standard threaded holes: drive holes, test holes, and fixed holes are all standard threaded, which is easy to purchase accessories
Compact size: compact internal structure, compact appearance, wide range of applications

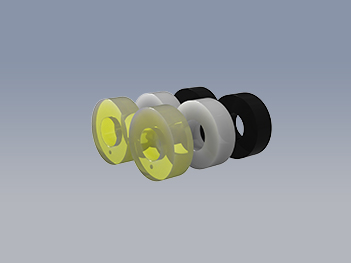

A variety of materials: sealing ring materials are diverse to meet the needs of different test scenarios
How to replace seal

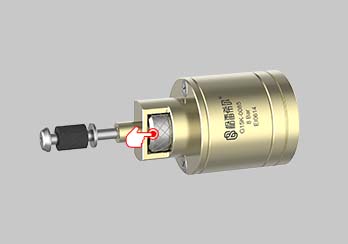

Press the silver button to automatically pop up the front end (it is recommended to cover the front end with the palm of your hand to prevent the components from popping up and falling), and pull out the old sealing ring component.

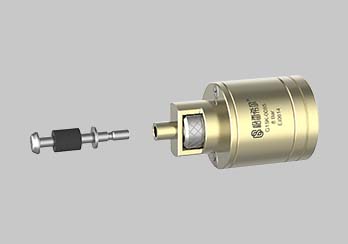

Replace the new sealing ring set with a new one.

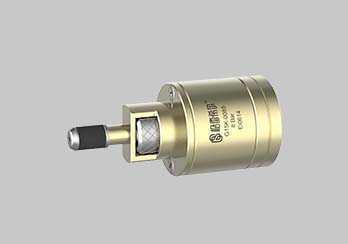

Press in the replacement sealing assembly, hear the sound, and it is installed.
