EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to8Bar |
| Sealing range | 8.5mm-35mm |
| minimum insertion depth | 1,2No. Body:15mm，3,4No. Body:25mm |
| traffic interface | G1/8 |
| main material | Aluminum alloy, stainless steel |
| Main sealing ring material | Neoprene, silicone rubber |
| Internal sealing ring material | Nitrile rubber |
| driving pressure | 4-6 Bar |
| operating temperature | -20℃-120℃ |
Product video

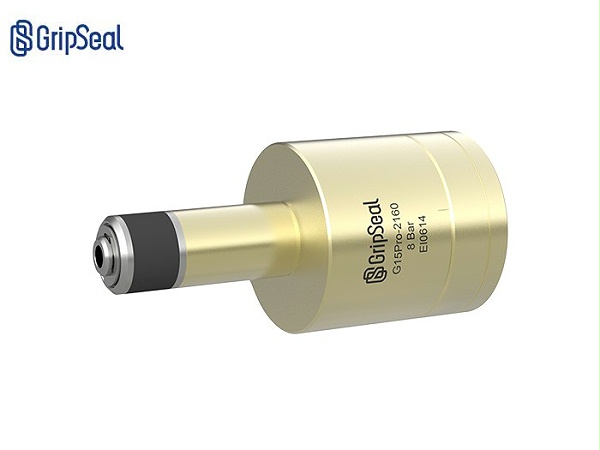

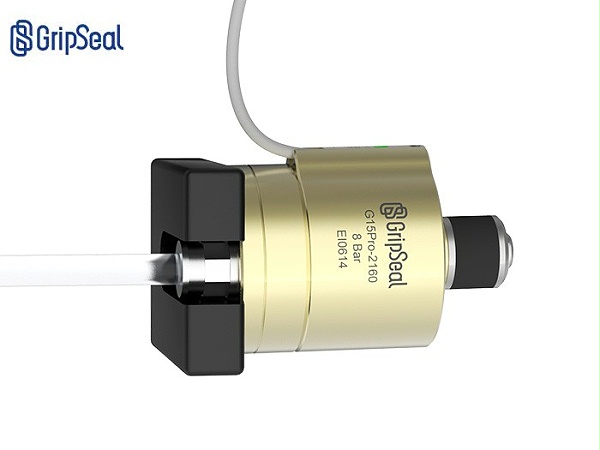

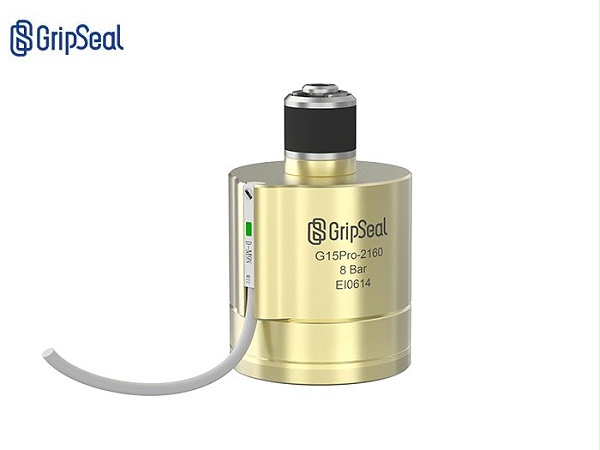

G15ProOperation video of series tube inner diameter intelligent connector

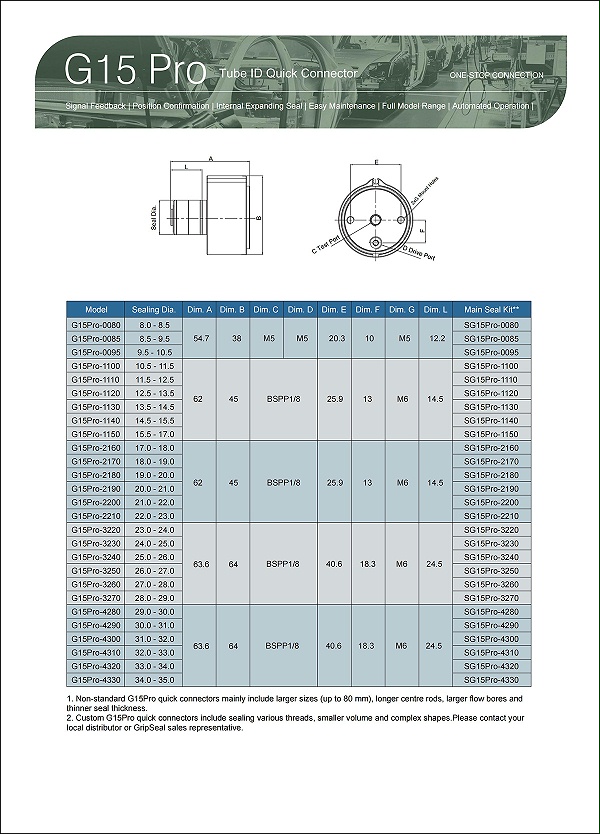

Product parameters

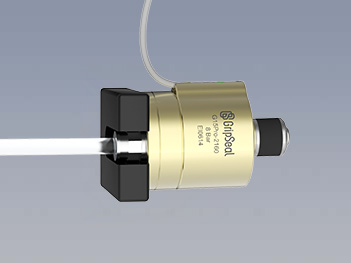

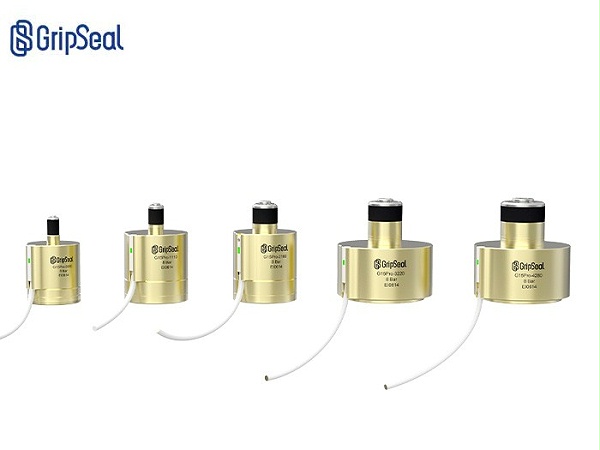

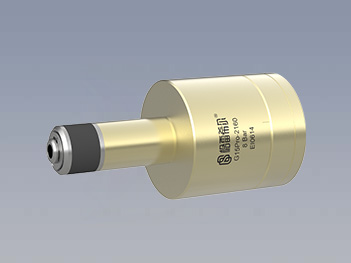

Flexible customization to avoid volume interference

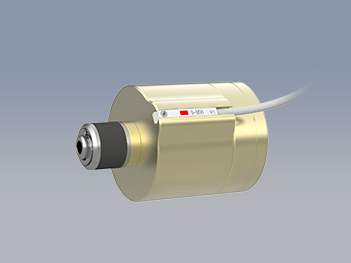

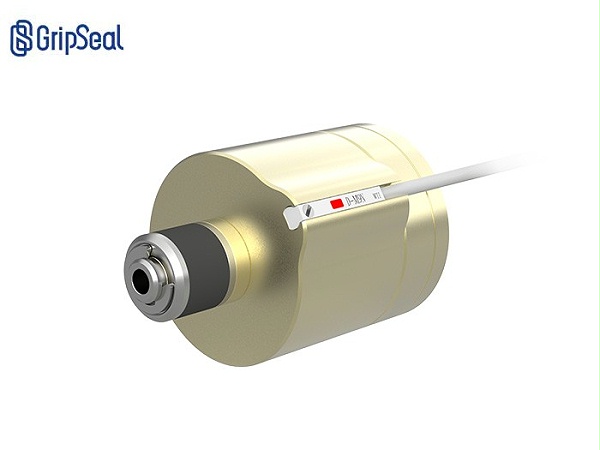

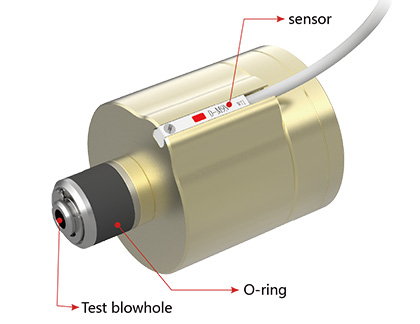

Position sensor, real-time feedback on whether the internal piston is moving

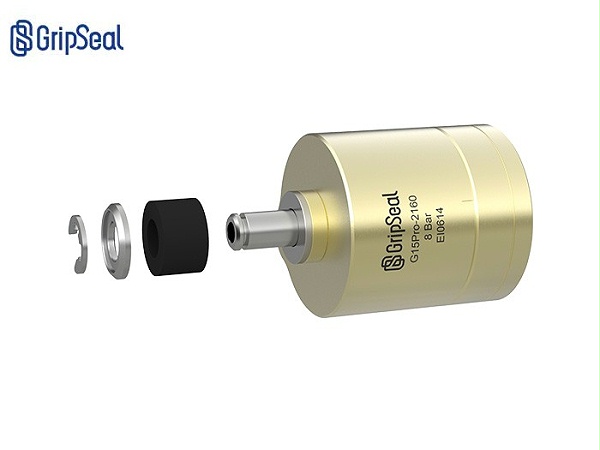

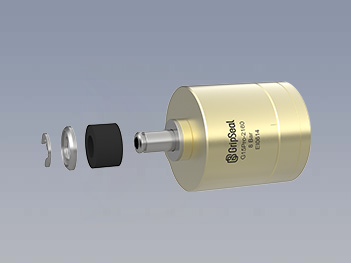

Quick replacement of sealing ring:Simple maintenance, extended service life

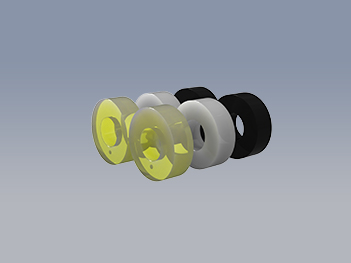

Sealing ring material: material optional to meet different customer requirements
Automated operation: more efficient, more stable test results
Operation method

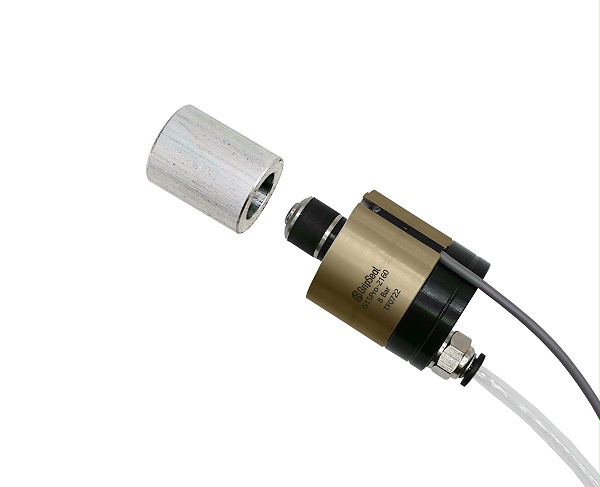

fixedG15ProTo the cylinder fixture and connect the drive interface (4-6bar) and test interface (test pressure does not exceed the maximum working pressure), and adjust the position of the sensor according to the sensor settings. cylinder pushG15ProConnect to the sealing position to ensure that the main sealing ring is within the inner diameter of the product under test.

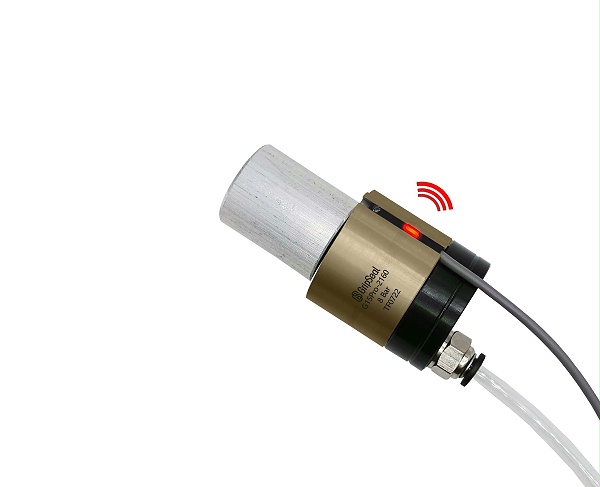

Pressurize the drive interface, the main seal will rise inward to seal the inner diameter of the product under test, and the sensor light will light up. Pass the test gas or other media to the test interface and start the test until the test is completed.
Pressure relief to the drive interface, sensor light off, stay0.5-1Seconds. Cylinder returnedG15Connector to the initial position, press2-6Prepare for the next test.
