EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to70Bar |
| Sealing range | 6mm-35mm |
| minimum insertion depth | 25mm |
| traffic interface | ZG1/8orZG1/4 |
| main material | Aluminum alloy, stainless steel, nylon |
| Main sealing ring material | fluororubber |
| Internal sealing ring material | Nitrile rubber |
| operating temperature | -20℃-120℃ |
Product video

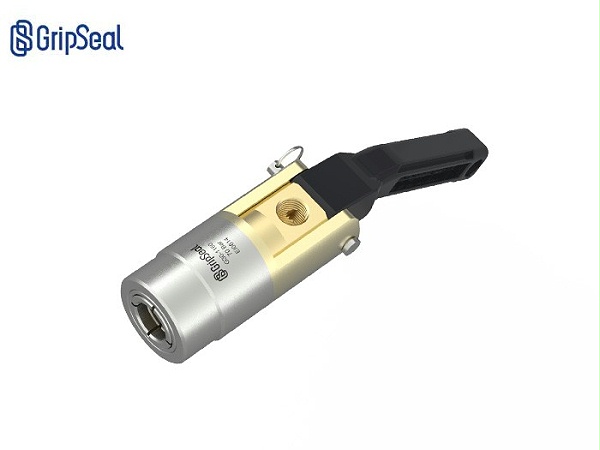

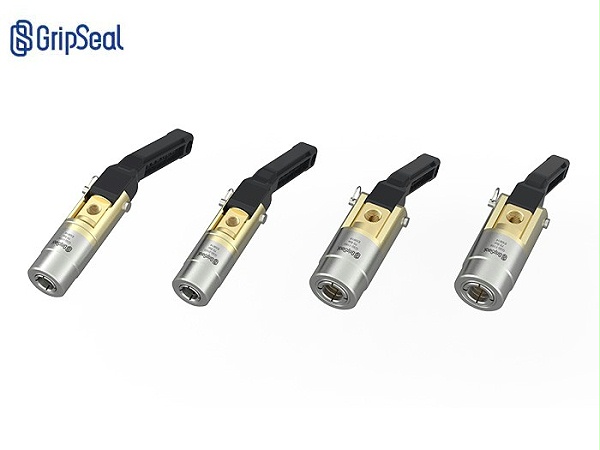

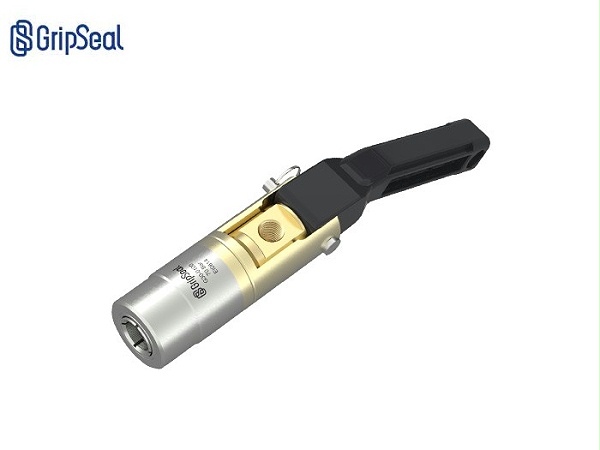

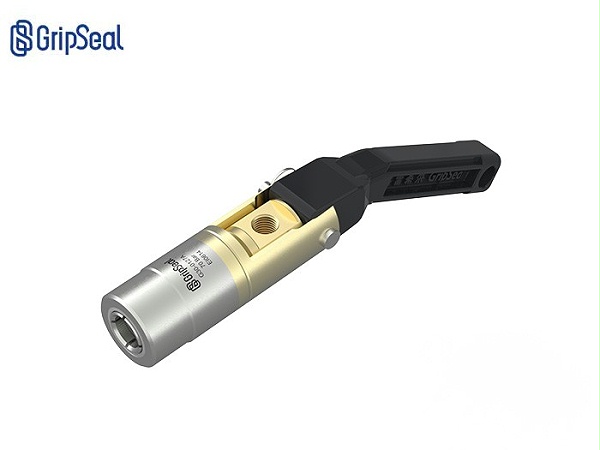

G30Operation video of series high pressure pipe outer diameter sealing connector

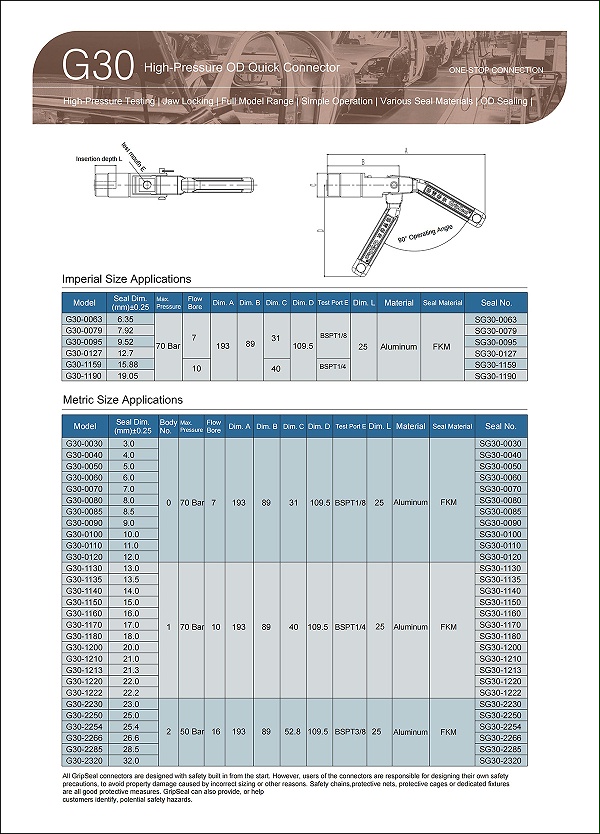

Product parameters

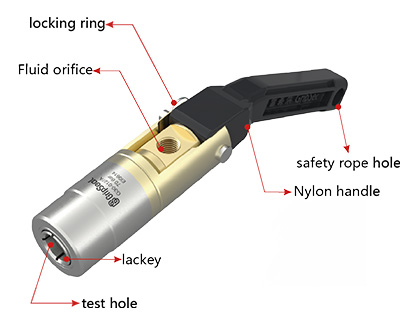

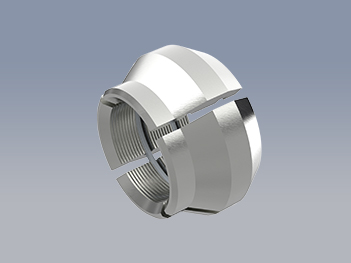

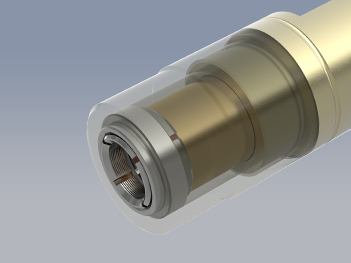

High hardness locking minions: with locking minions, which can firmly grasp the outer wall of the pipe fittings and improve the upper limit of pressure resistance

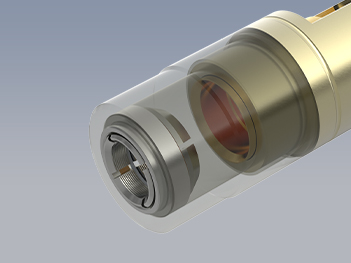

Horizontal characteristics: There are fine horizontal lines on the locking claws, which can increase the force area and provide a firmer grip
Automatic return: make the operation more labor-saving, reduce the risk of jamming, and improve operation efficiency

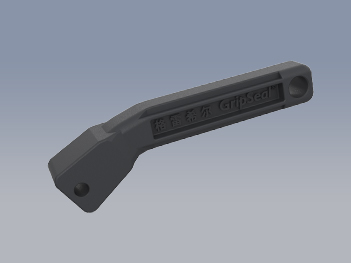

Nylon handle: ergonomic design, more comfortable to grasp

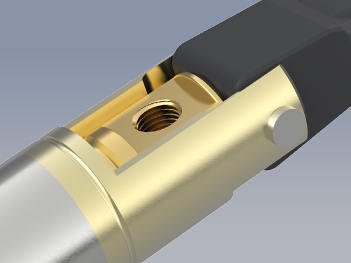

Pipe taper thread fluid hole: in line with international standards, commonly used in China, related accessories are easy to obtain, easier to seal

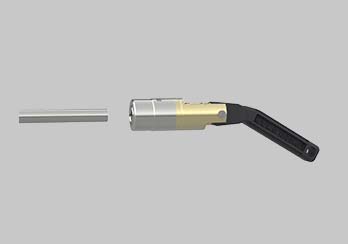

Operation method

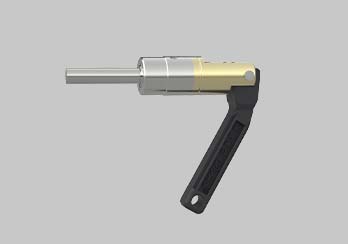

Insert the test piece into the test port of the connector
Insert the test piece into the bottom of the test hole

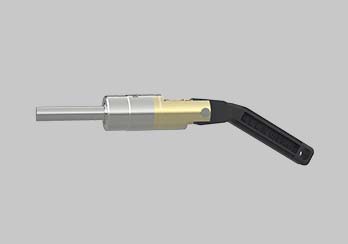

Pull the handle, at which point the test piece is locked in the test hole, completing the sealing
