EMAIL:info@gripseal.comProduct parameters

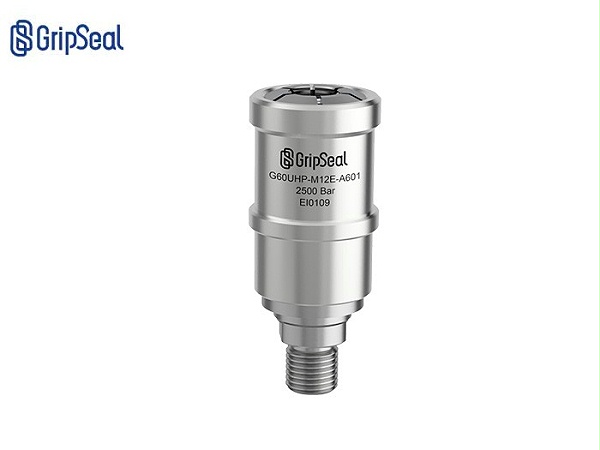

| Maximum operating pressure | From vacuum to50Bar(UHPversion2500Bar) |
| Sealing range | 1/8"-2" |
| minimum insertion depth | 25mm |

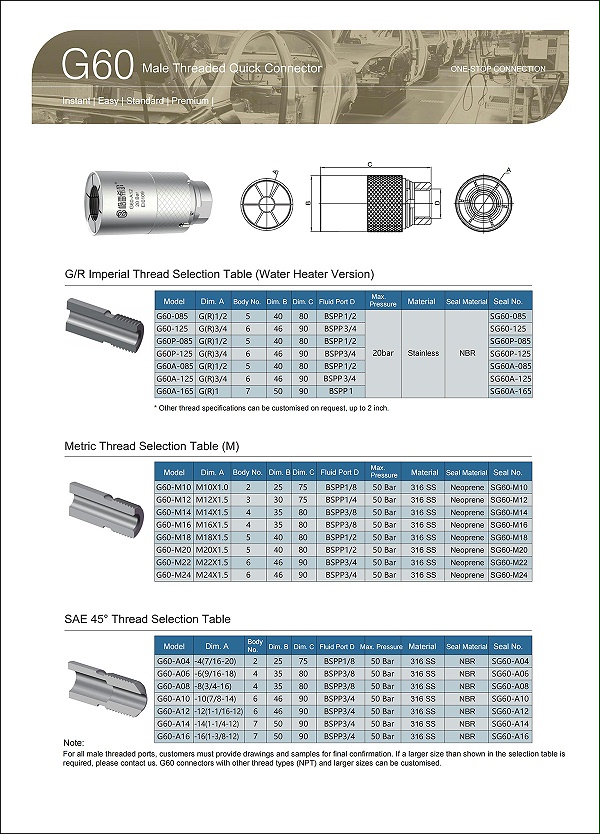

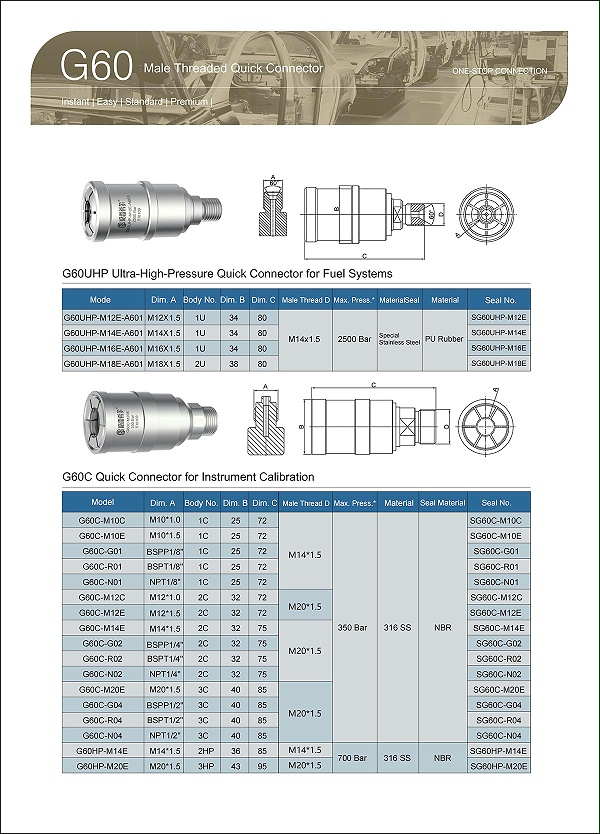

| traffic interface | See selection table |
| main material | stainless steel,Aluminum alloy, nylon |
| Main sealing ring material | neoprene,Nitrile rubber |
| Internal sealing ring material | Nitrile rubber |
| operating temperature | -20℃-120℃ |
Product video

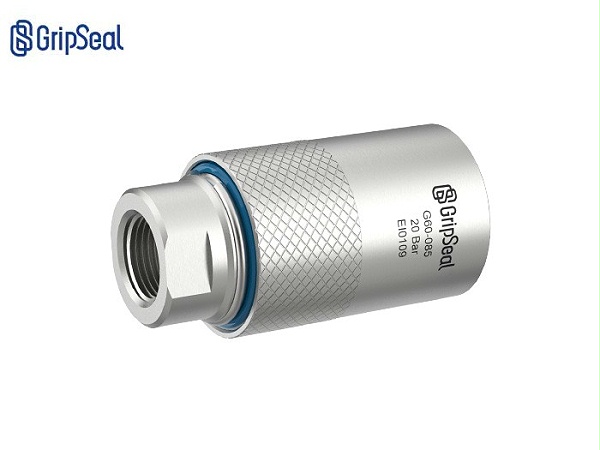

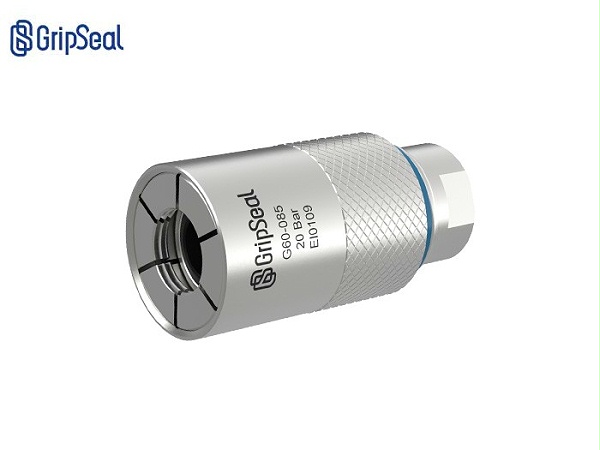

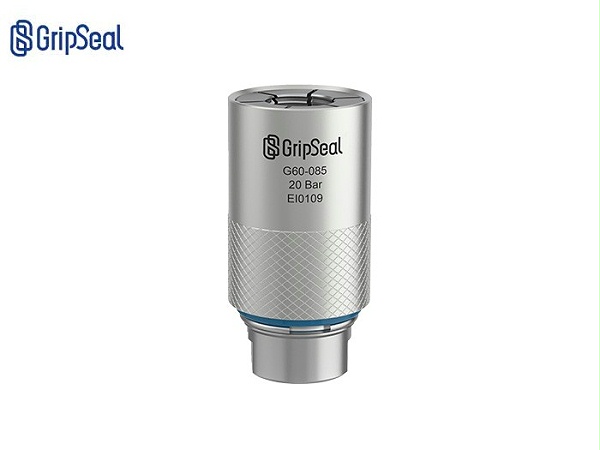

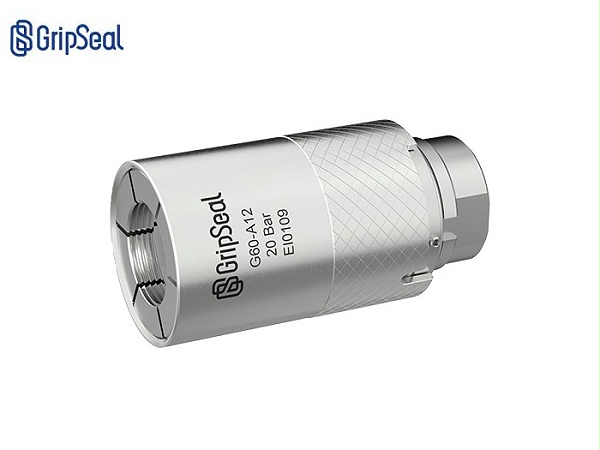

G60Series Quick Connectors-operation video

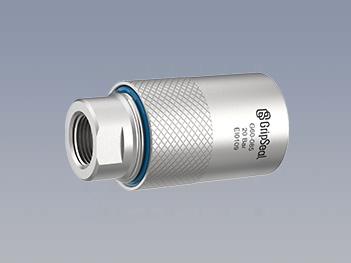

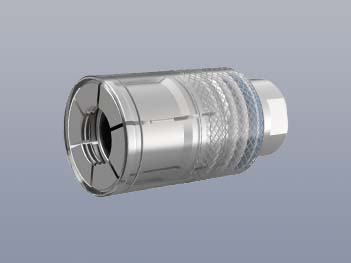

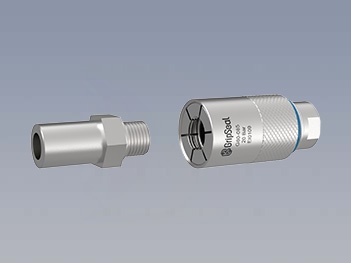

Product parameters

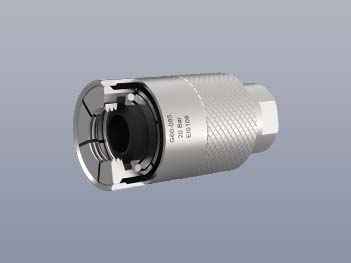

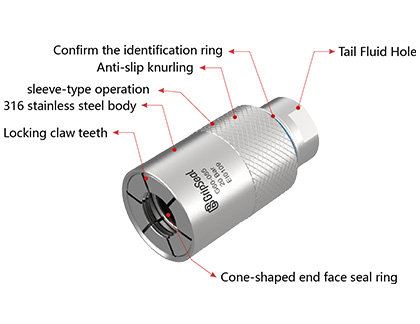

The outer thread is tight and does not need to be rotated. Protect product thread
Reticulated knurling increases friction for easy operation
Sliding sleeve structure, easy to push to achieve locking and disconnection

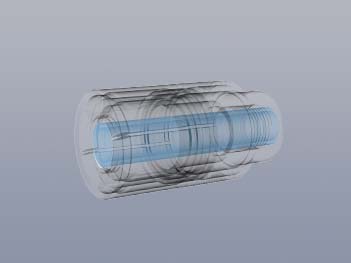

Pass-through design to reduce the loss of traffic and ensure the accuracy of test results
End face sealing ring, easy to replace and easy to maintain

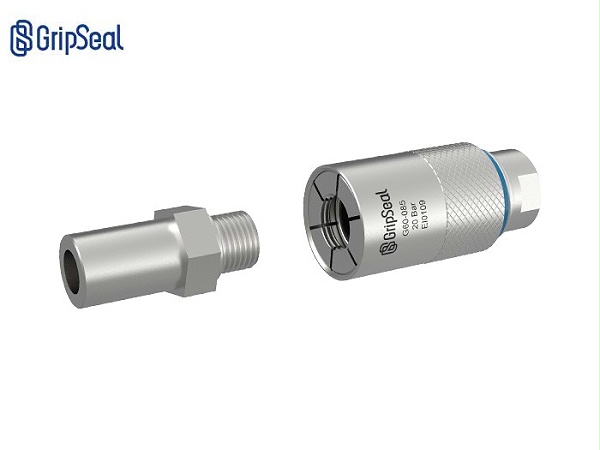

Operation method

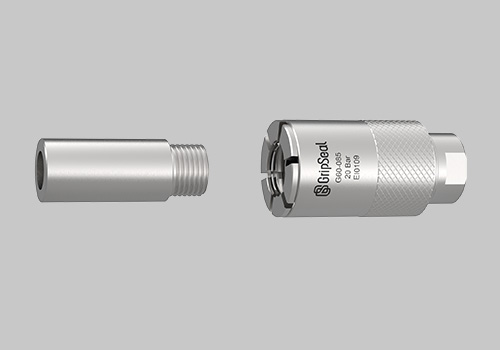

Pull the metal sleeve back, and the mechanical claw will open by itself.

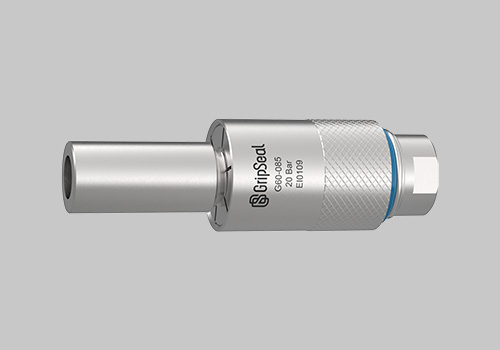

Push the connector in the direction of the male thread or pipe interface of the test piece, the metal sliding sleeve moves forward, the mechanical jaw shrinks by itself, and completes the clamping and sealing connection.
