G80 Series Female Quick Connectors

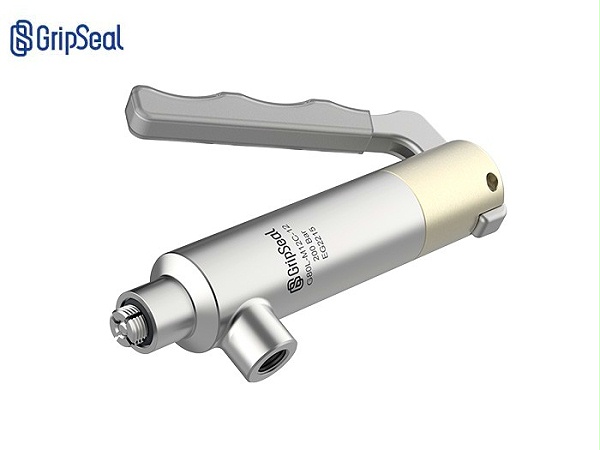

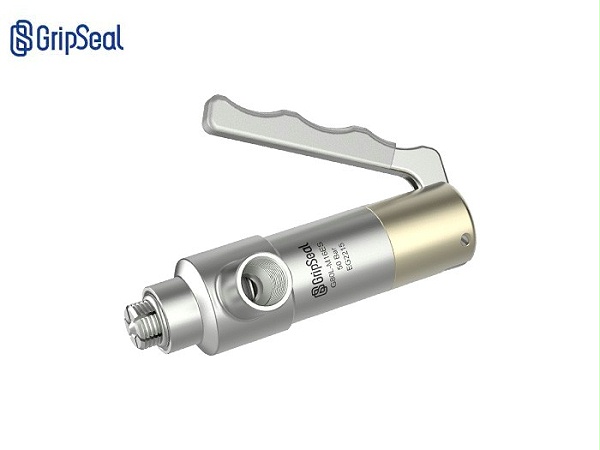

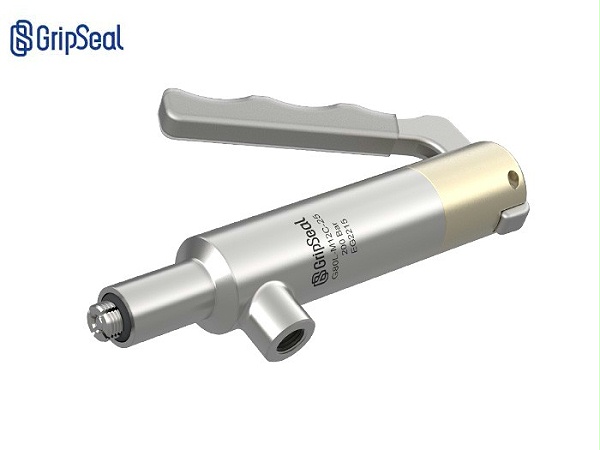

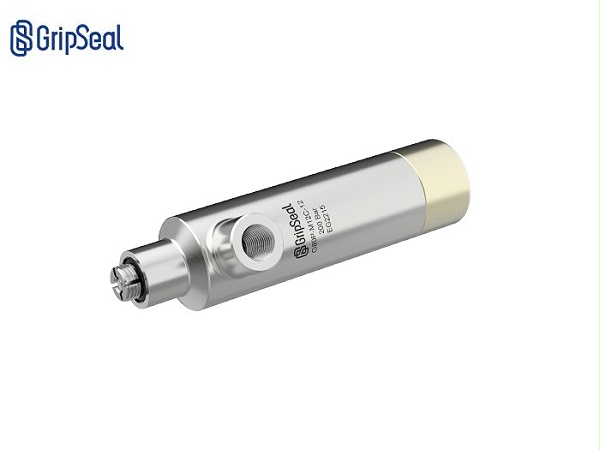

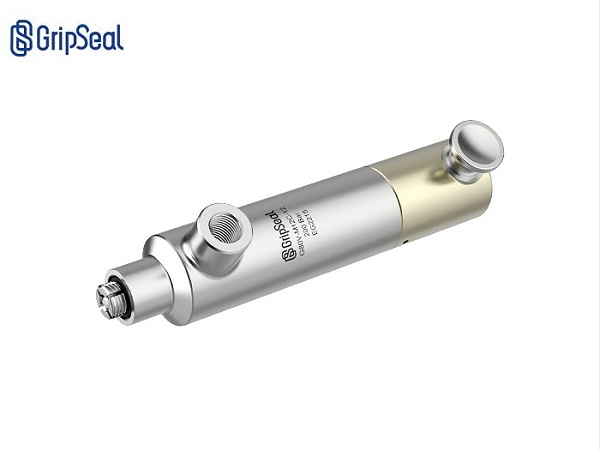

G80 series internal thread quick connector

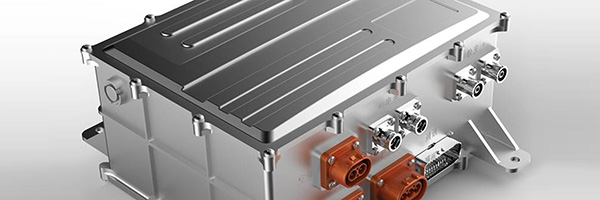

G80 series connector is a connector for internal threads, which is widely used for plugging and connecting various threaded holes, such as high voltage testing of auto parts, air tightness testing, shell plugging of new energy motor controllers, etc. There are various driving methods, suitable for various manual and pneumatic applications.

EMAIL:info@gripseal.com

product parameters

Product parameters

Maximum operating pressure	From vacuum to350Bar
Sealing range	Please refer to the color page selection table
Minimum thread depth	Please refer to the color page selection table
traffic interface	G1/8;G1/4;G3/8;G1/2
main material	316stainless steel
Main sealing ring material	Nitrile rubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

Product video

G80Series internal thread quick connector operation video

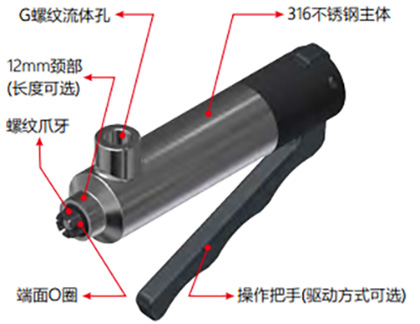

Product features

Product parameters

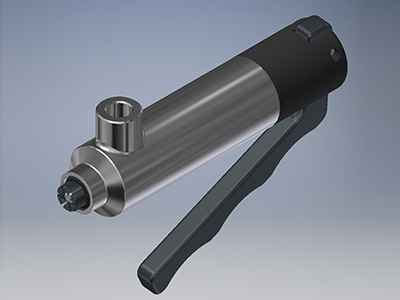

: Internal thread hole, screw claw expansion locking, less damage to screw teeth

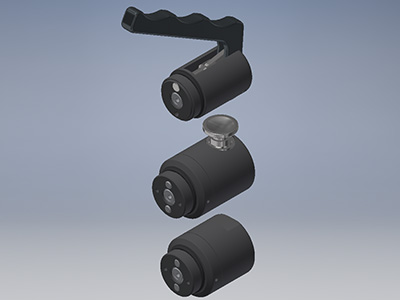

: Modular drive to meet customer's manual and pneumatic operation requirements

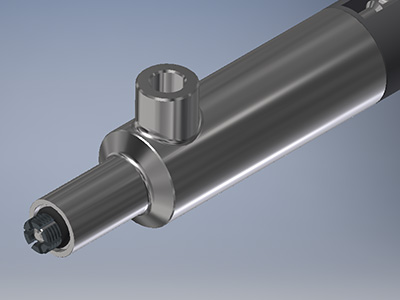

: Neck length customization to avoid interference

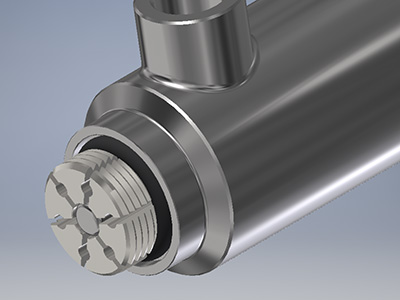

: Flow holes are attached to the screws to increase flow and shorten test time

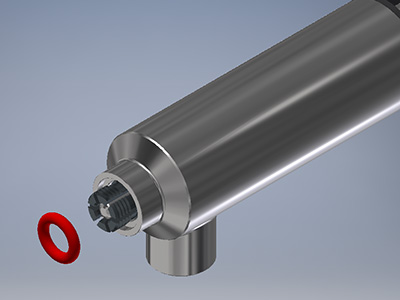

: end faceOType sealing ring, easy to replace and easy to maintain

operation method

Operation method

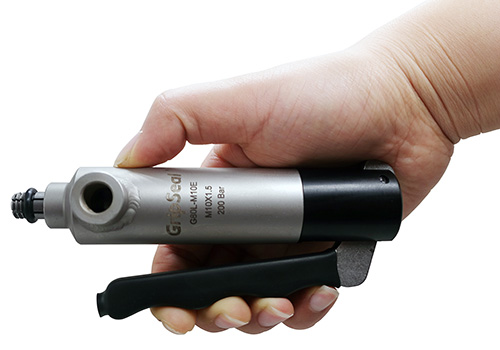

: Step one.

G80LHandle type, the handle is depressed, and the claws are extended and in a contracted state.

: second step

Insert the minions in the direction of the internal thread interface of the test piece until the threaded end face is in full contact with the main seal ring.
