EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to350Bar |

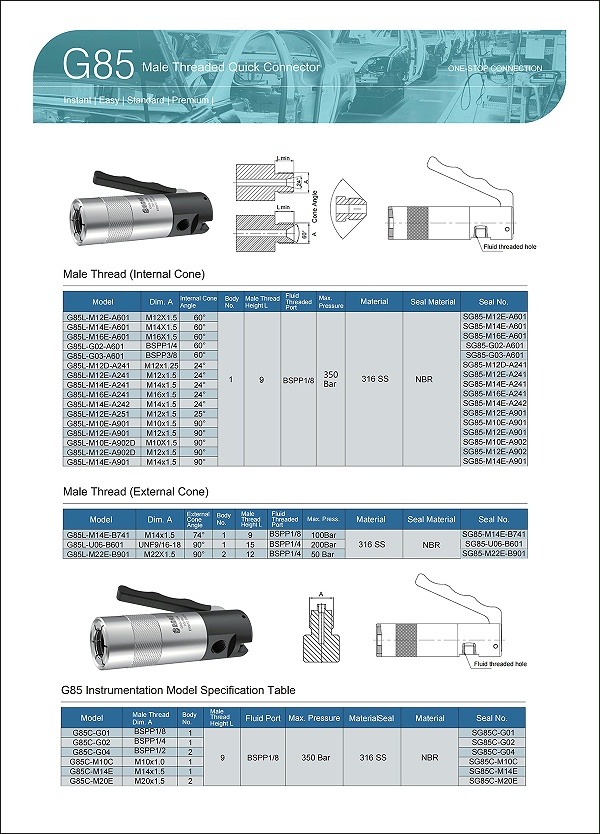

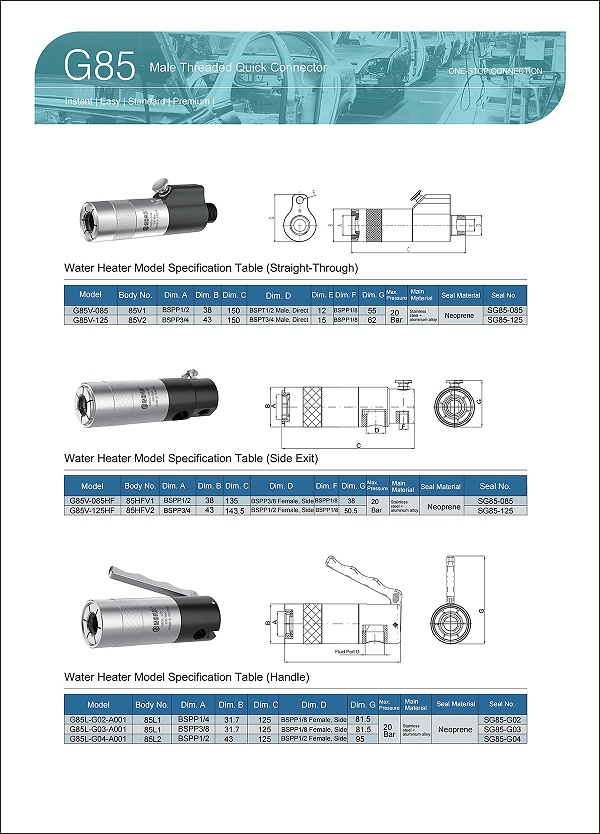

| Sealing range | Please refer to the relevant selection table |
| External thread height | Please refer to the relevant selection table |
| traffic interface | G1/8，G1/4，G3/8 |
| main material | 316stainless steel |
| Main sealing ring material | Nitrile rubber |
| Internal sealing ring material | Nitrile rubber |
| operating temperature | -20℃-120℃ |
Product video

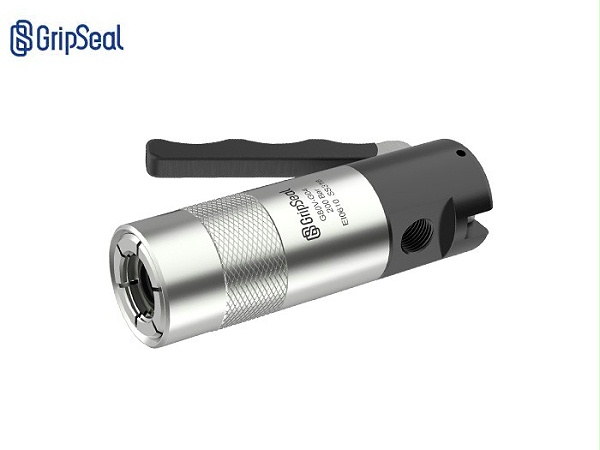

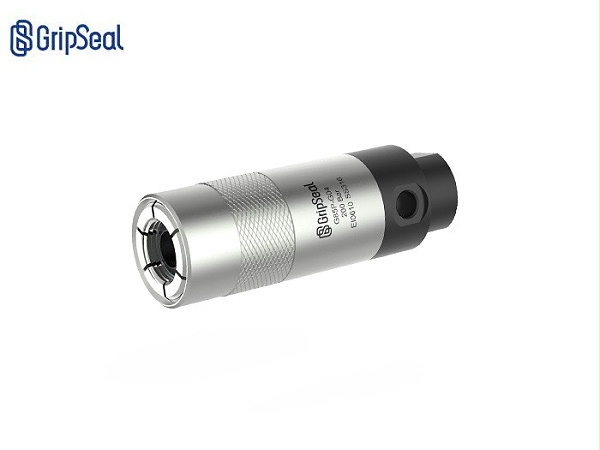

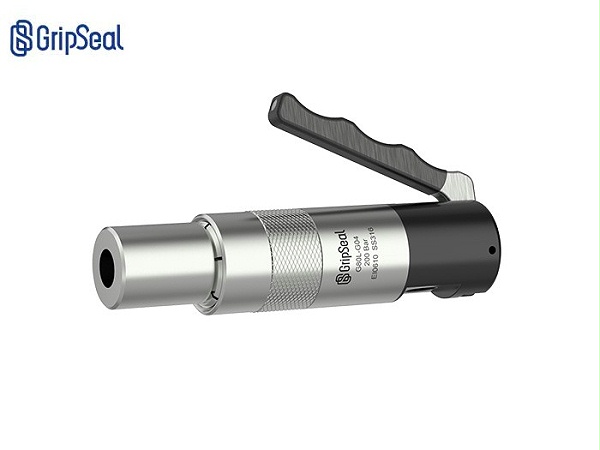

G85Series high pressure external thread sealing connector operation video

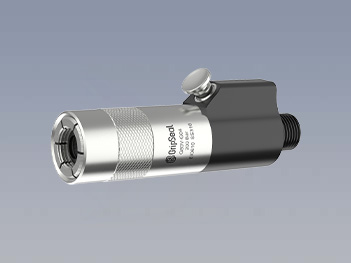

Product parameters

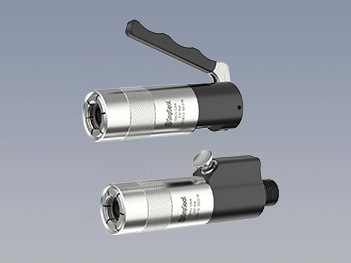

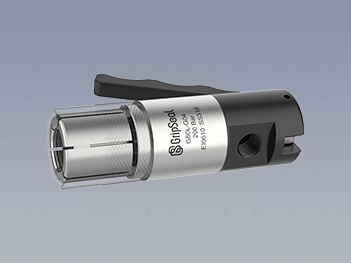

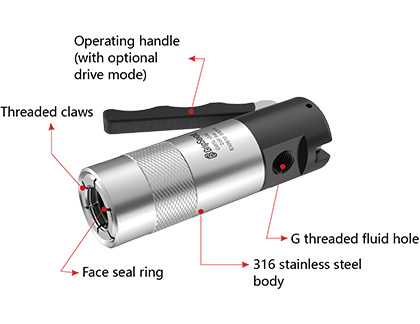

Screw jaw shrink locking, less damage to screw teeth. High connection efficiency
316Stainless steel body,Good mechanical properties and high pressure bearing capacity

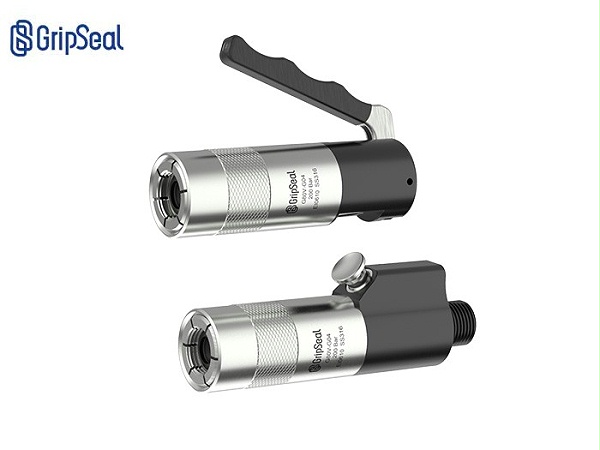

Multiple driving methods,Meeting various operating requirements

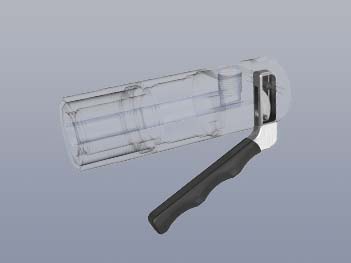

The internal flow path is large, which has little impact on the operation test

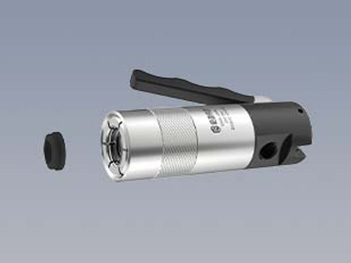

End face sealing ring, easy to replace and easy to maintain
Operation method

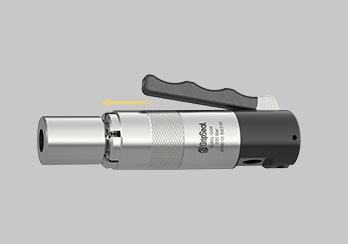

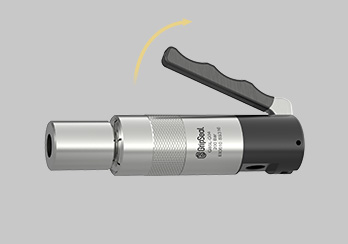

G85LHandle type, the handle is depressed, and the claws are extended and in an expanded state.

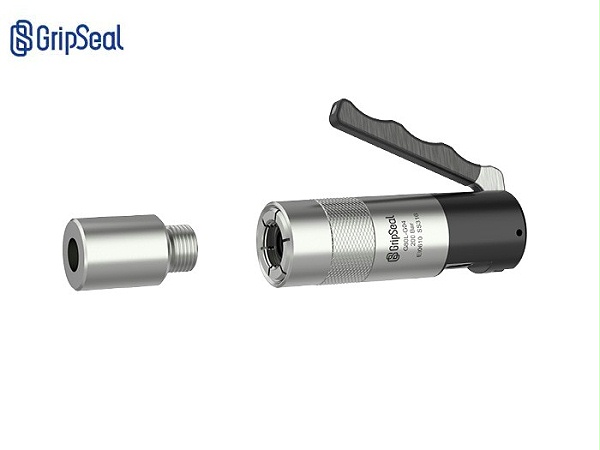

Push in the direction of the threaded interface of the test piece until the threaded end face fully contacts the main sealing ring.

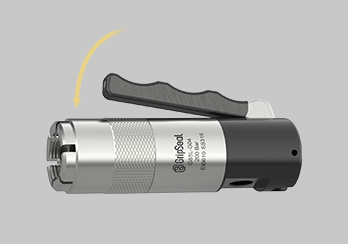

releaseG85LThe handle, metal jaw retract, and complete the clamping and sealing connection.
