G65 Series Straight Through Female Connectors

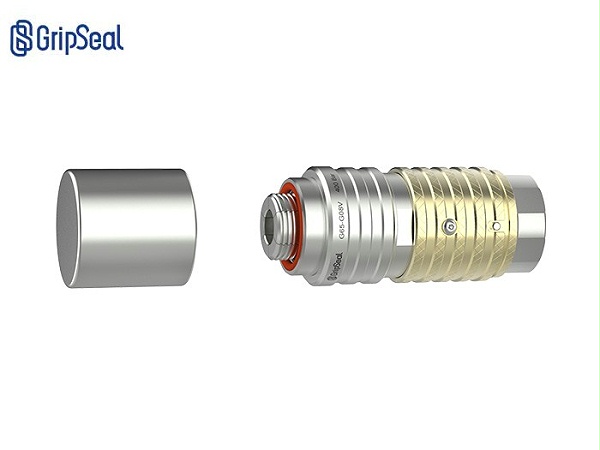

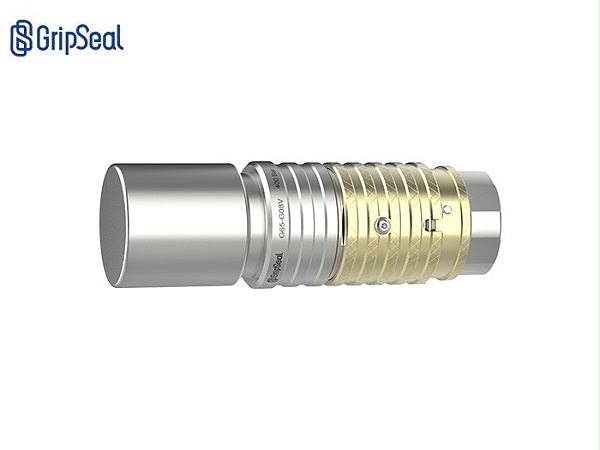

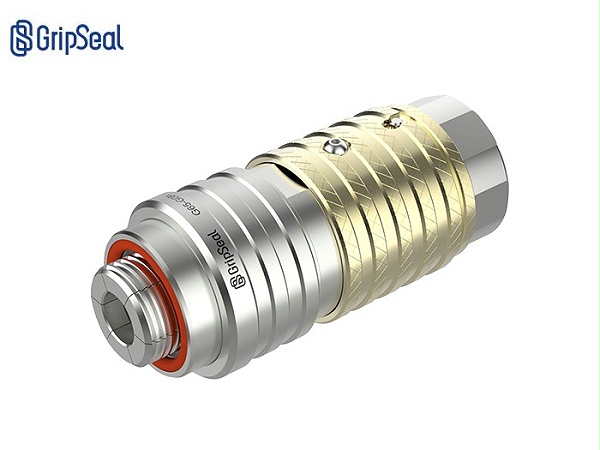

G65 series straight-through internal thread connector

G65 is a joint designed for internal thread hole connection. The internal diameter of the joint is large, the flow rate is high, and the maximum pressure can reach 400 kg. Built-in cut-off relief valve prevents the outflow of the medium in the test tube, and is widely used in various gas and liquid medium filling scenarios.

EMAIL:info@gripseal.com

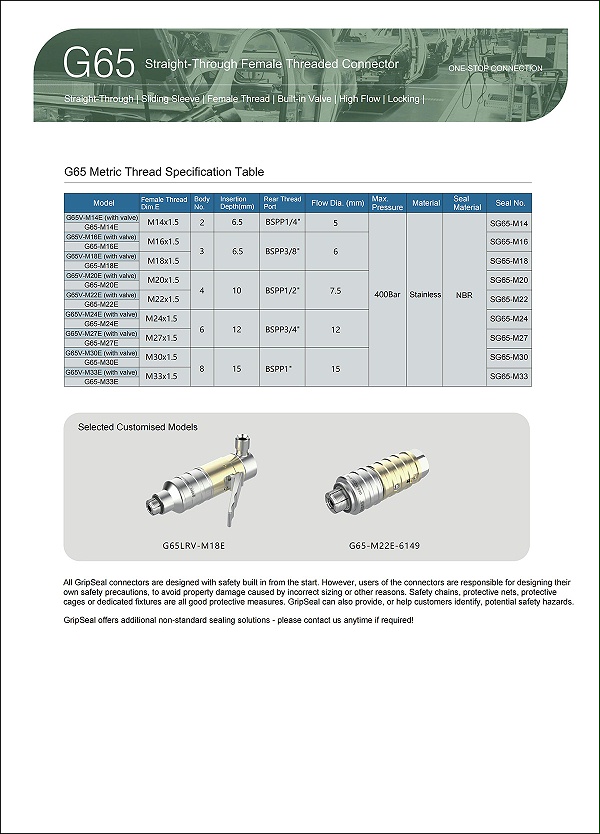

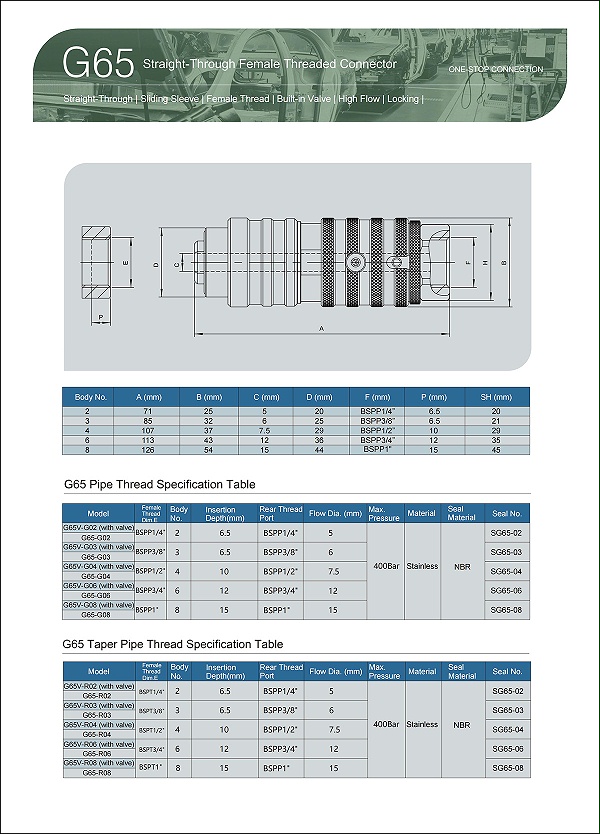

product parameters

Product parameters

Maximum operating pressure	From vacuum to400Bar
Sealing range	Refer to the selection table
Top raised width	4-8mm
traffic interface	Refer to the selection table
main material	316stainless steel
Main sealing ring material	neoprene,Nitrile rubber
Internal sealing ring material	Nitrile rubber
operating temperature	-20℃-120℃

Product video

G65Series straight-through internal thread connector video demonstration

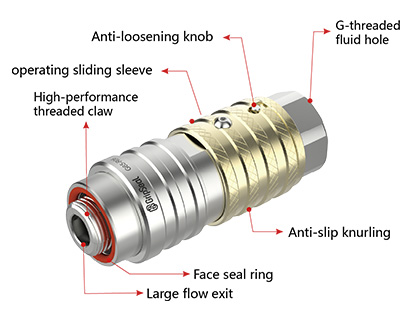

Product features

Product parameters

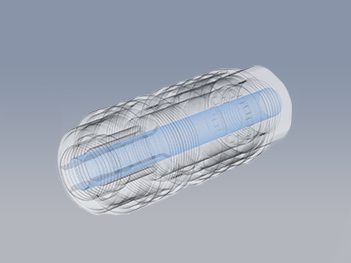

: Straight-through design: through-flow channel, large flow

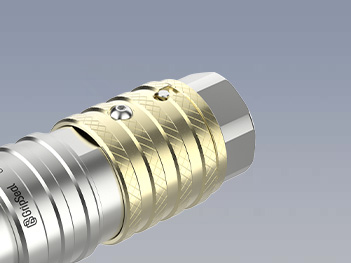

: Anti-loosening buckle: prevent test loosening and enhance test safety

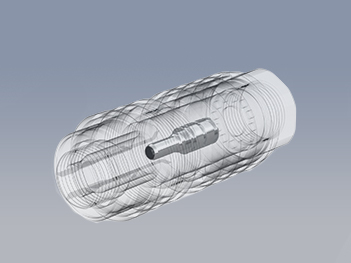

: Built-in globe valve: When not connected, the globe valve is closed to prevent overflow of the test medium

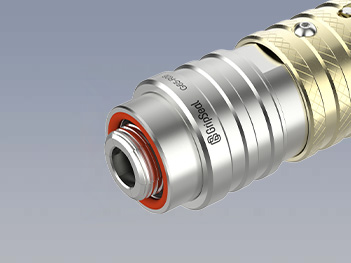

: Standard sealing ring: end face sealing ring is standardORing, easy to disassemble and assemble, easy to maintain

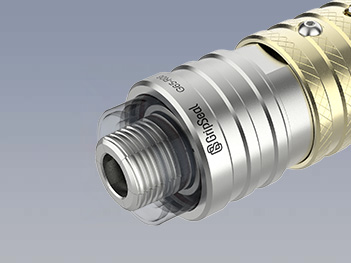

: Threaded jaw: high performance stainless steel, special heat treatment, maximum pressure up to400kilogram

operation method

Operation method

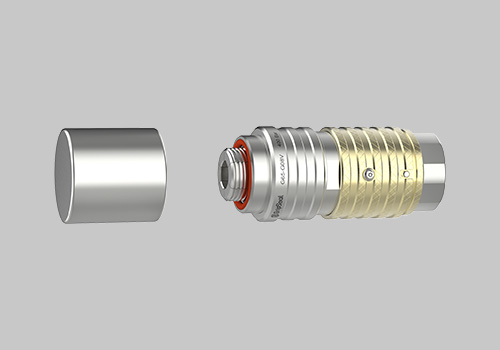

: Step one.

Push the connector towards the threaded hole for connection, and the sleeve will automatically snap forward.

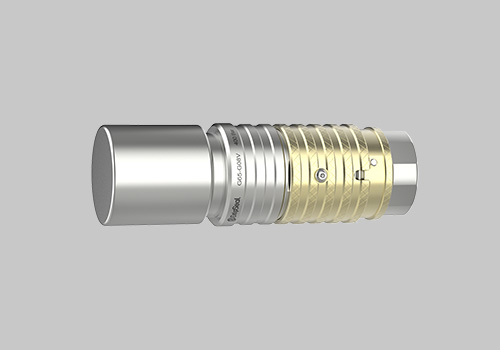

: second step

When the safety ring can rotate freely, it is considered a correct docking. Rotate the safety ring to a certain angle to ensure safety. After the connection steps are completed, follow-up tests can be carried out.
