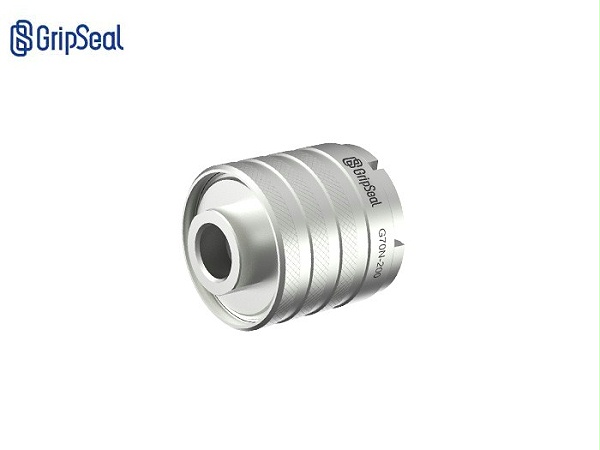

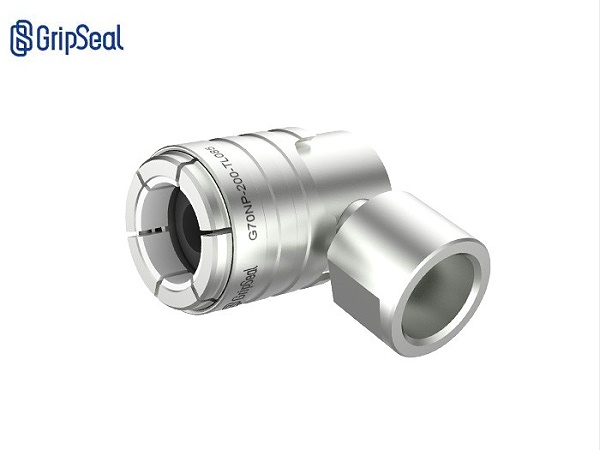

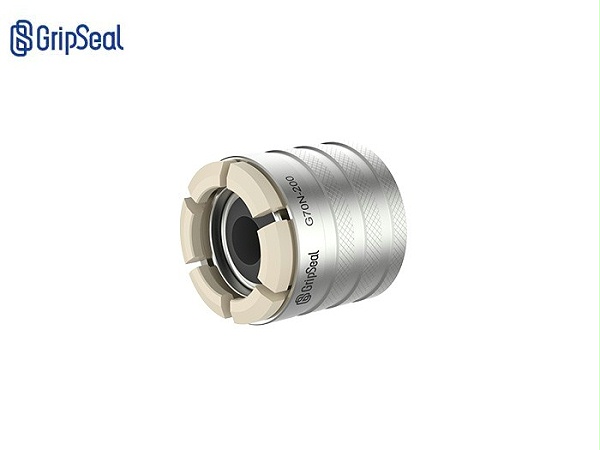

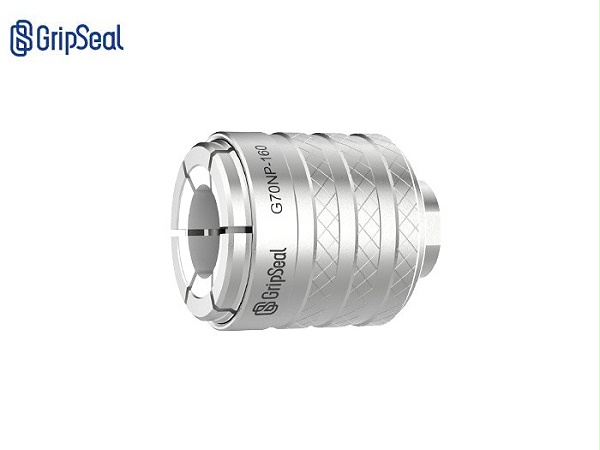

G70NP Mini Lossless Quick Connector

G70NP series connectors, with a smaller outer diameter and shorter length than G70P, are quick connectors designed for narrow spaces. With the same pipe diameter seal, this connector has the smallest size and a non-destructive gripping structure. It includes a side-out design, making it compact and practical.

EMAILEMAIL:info@gripseal.com

product parameters

Product parameters

Maximum operating pressure From vacuum to10Bar
Sealing range Refer to the selection table
Top raised width 4mm-8mm
traffic interface Refer to the selection table
main material 316stainless steel
Main sealing ring material Neoprene, silicone
Internal sealing ring material Nitrile rubber, EPDM
operating temperature -20℃-120℃

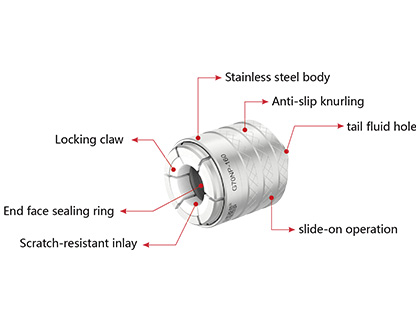

G70NPSpecifications

Product video

Product video

G70NPConventional Quick Seal Connectors-Use the operation tutorial

Product features

Product parameters

G70NPfeature

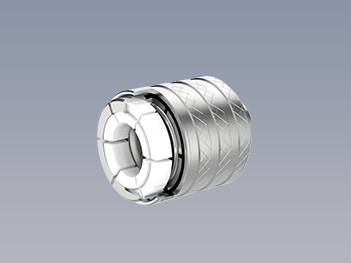

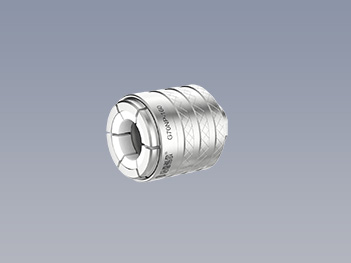

Polymer claws: no scratches on customer products

G70NPfeature

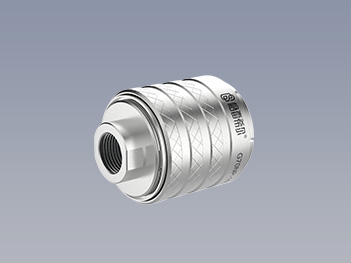

Reticulated knurling: increases friction and is easy to operate

G70NPfeature

Sliding sleeve structure: easy to push to achieve locking and disconnection

G70NPfeature

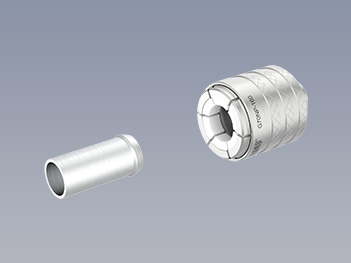

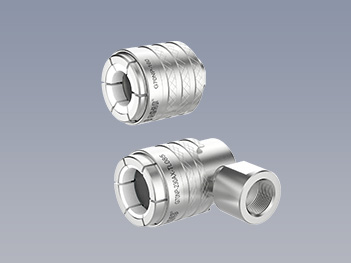

through andLType optional

G70NPfeature

Limit small size

operation method

Operation method

G70NPoperation

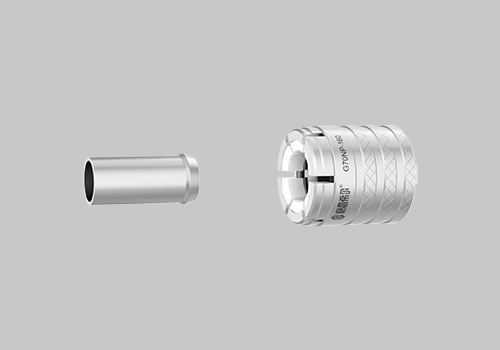

Step one.

Align the fitting to be sealed.

G70NPoperation

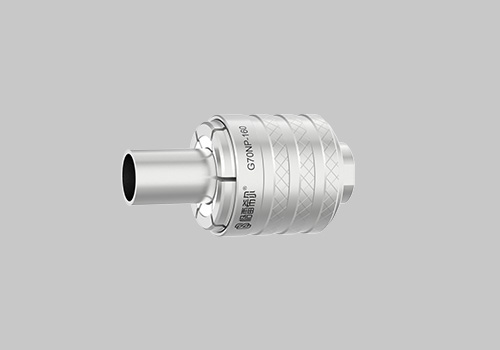

second step

Push the connector to form a connection

Application case

Application cases

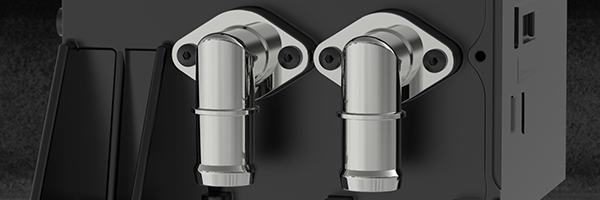

  • brake caliper New energy battery water cooling board test

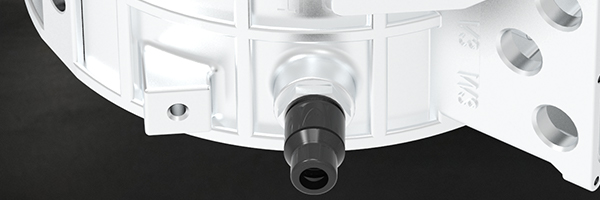

  • Motor controller housing Motor cooling system
  • Air conditioning industry Engine cooling water channel test
Get the application solution now

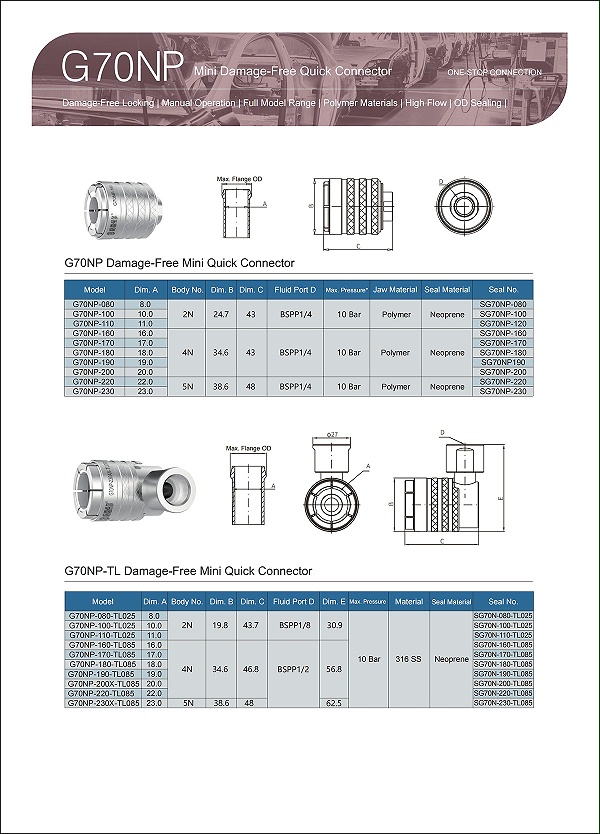

G70NP Parameter selection table
