Flange tube sealing joint
  • G70SP small body lossless quick connector
  • G70SP small body lossless quick connector
  • G70SP small body lossless quick connector
  • G70SP small body lossless quick connector
  • G70SP small body lossless quick connector
  • G70SP small body lossless quick connector

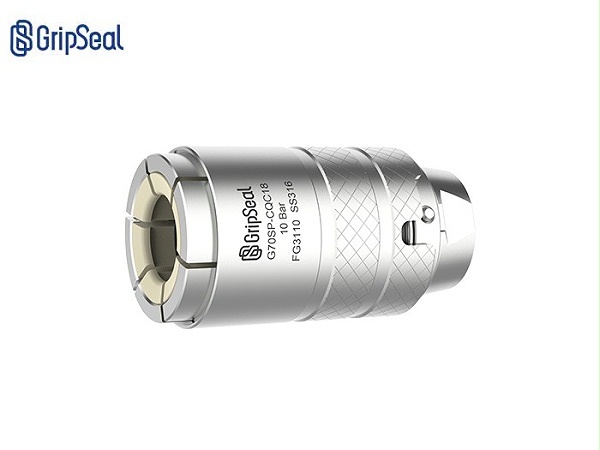

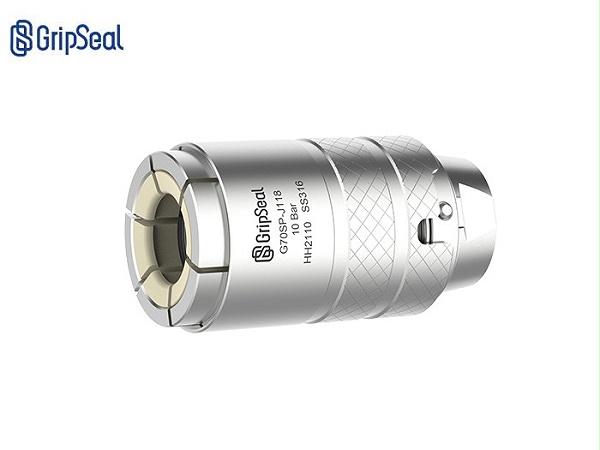

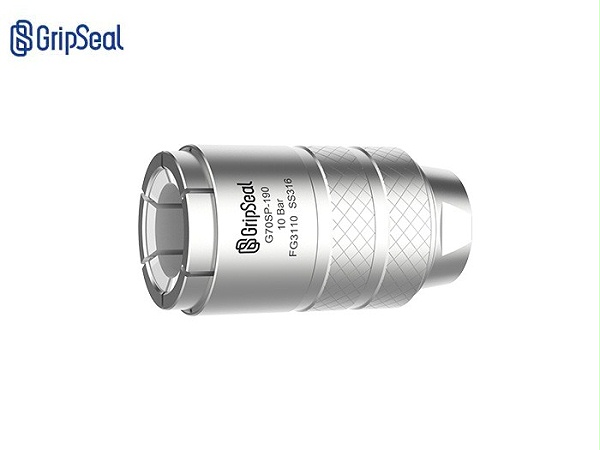

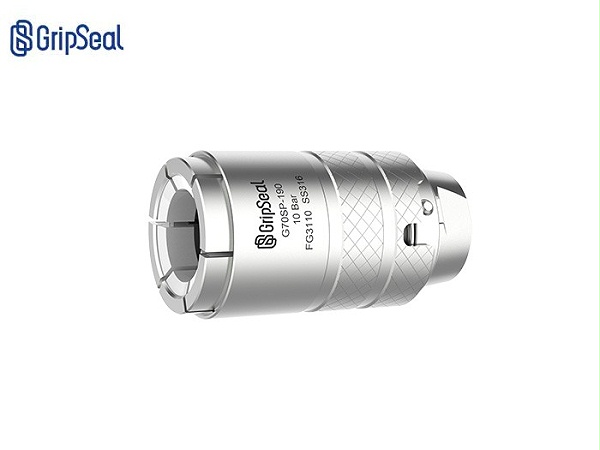

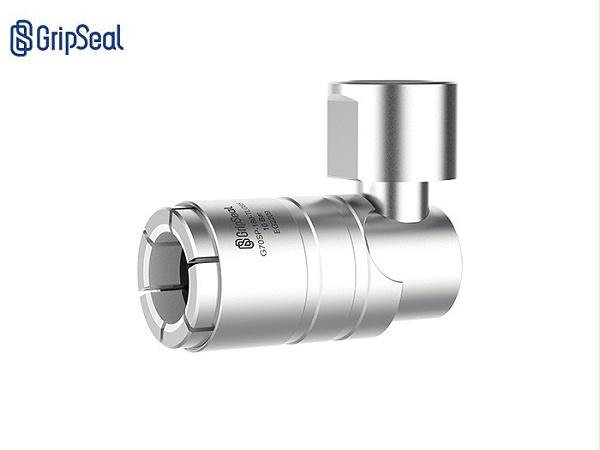

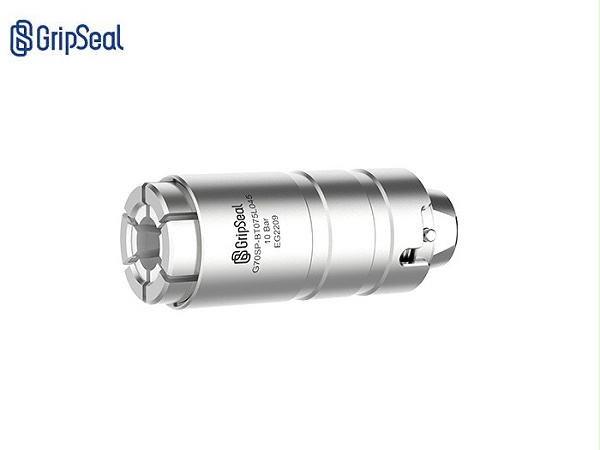

G70SP small body lossless quick connector

The G70SP series connector is a special version based on the traditional G70 external card connector. It adopts the method of inlaid plastic minions to achieve non-destructive grabbing test function, and at the same time reduces the external size, reducing the outer diameter of the same caliber products on the market by about 5mm. It is suitable for various test scenarios. The tail is equipped with a safety lock structure, and the high-pressure application can ensure that the joint will not open accidentally.

EMAILEMAIL:info@gripseal.com

product parameters

Product parameters

Maximum operating pressure From vacuum to10Bar
Sealing range Refer to the selection table
Top raised width 4mm-8mm
traffic interface Refer to the selection table
main material 316stainless steel
Main sealing ring material Neoprene, silicone
Internal sealing ring material Nitrile rubber, EPDM
operating temperature -20℃-120℃

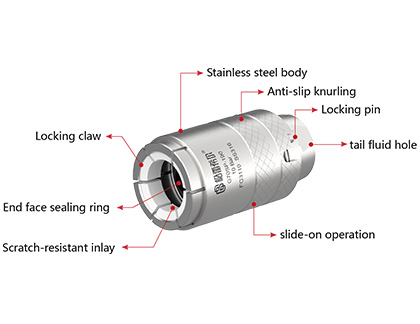

G70SP Specifications

Product video

Product video

G70SPQuick Seal Connector-Introduction video

Product features

Product parameters

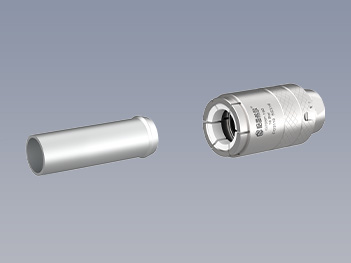

G70SPfeature

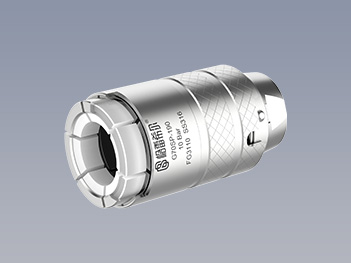

Polymer claws: no scratches on customer products

G70SPfeature

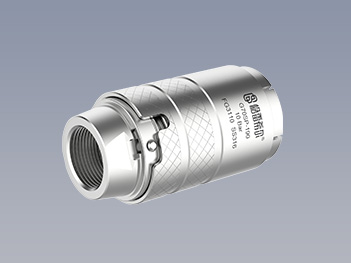

Safety locking ring: prevent test loosening and ensure test safety

G70SPfeature

Sliding sleeve structure: easy to push to achieve locking and disconnection

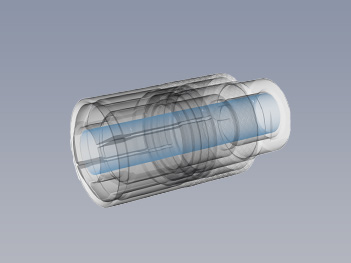

G70SPfeature

Pass-through design: reduce the loss of traffic and ensure the accuracy of test results

G70SPfeature

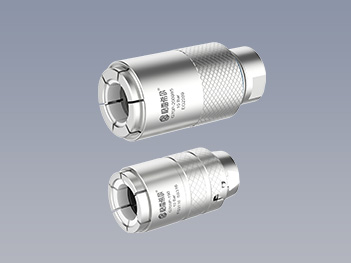

Compact size: for location interference scenarios

operation method

Operation method

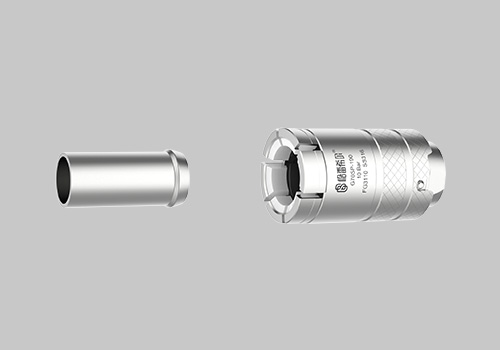

G70SPoperation

Step one.

Align the fitting to be sealed.

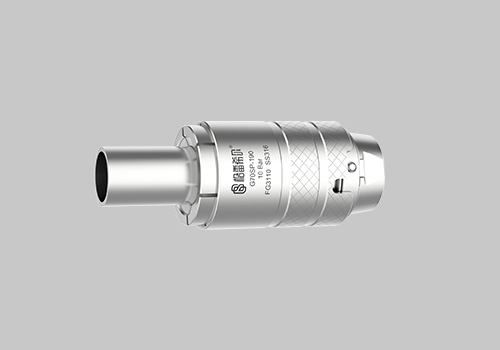

G70SPoperation

second step

Push the connector to form a connection

  • brake caliper New energy battery water cooling board test
  • Motor controller housing Motor cooling system
  • Air conditioning industry Engine cooling water channel test

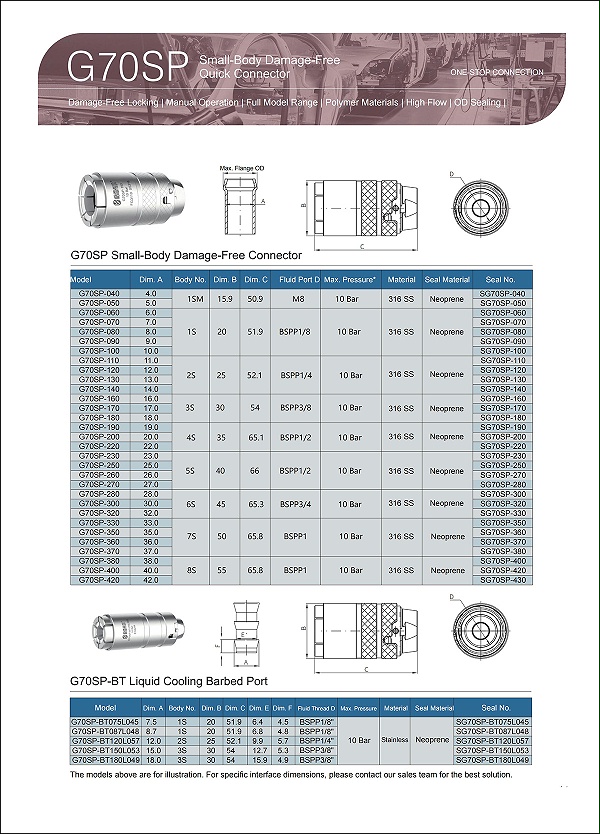

G70SP Parameter selection table1

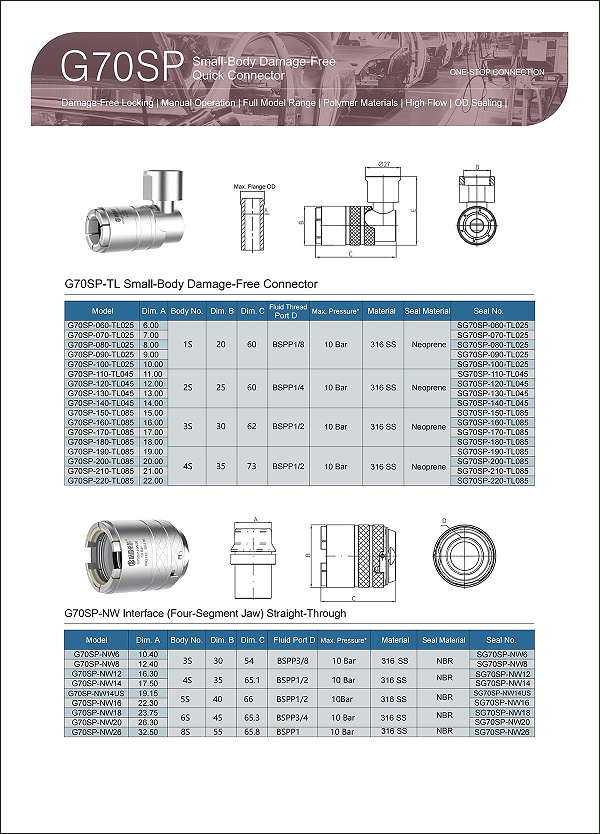

G70SP Parameter selection table2

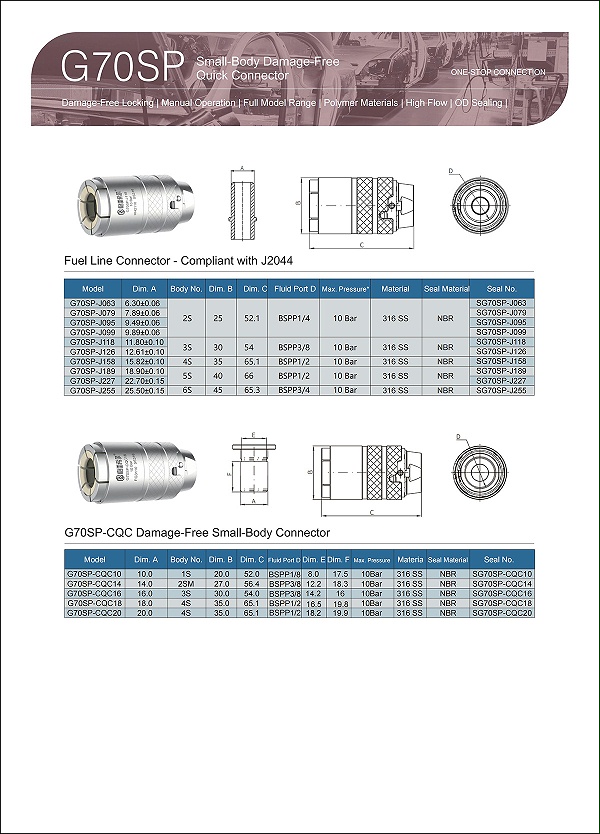

G70SP Parameter selection table3

Related products
