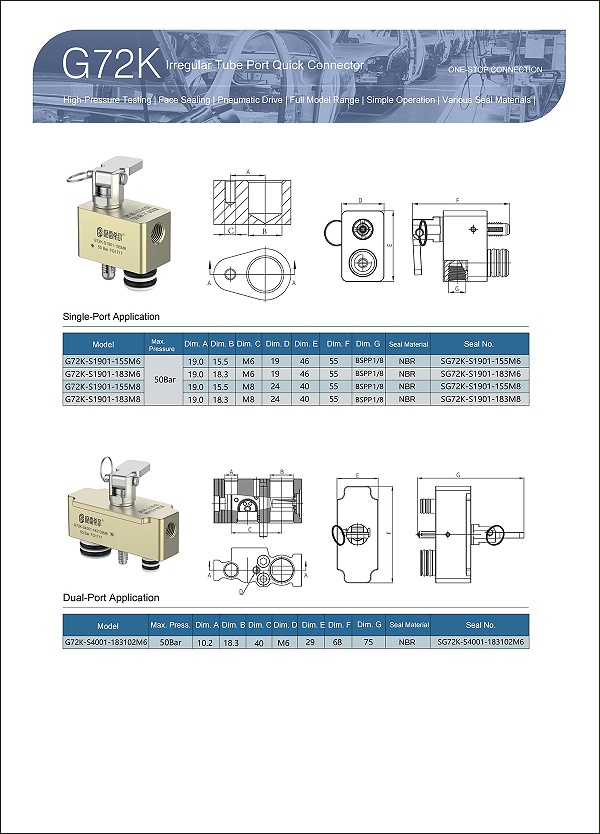

EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to50Bar |
| Sealing range | Customized according to product |
| traffic interface | G1/8、G1/4Threaded hole |
| main material | aluminum alloy |
| Main sealing ring material | Nitrile rubber |
| Internal sealing ring material | Nitrile rubber/fluororubber |
| operating temperature | -20℃-120℃ |
Product video

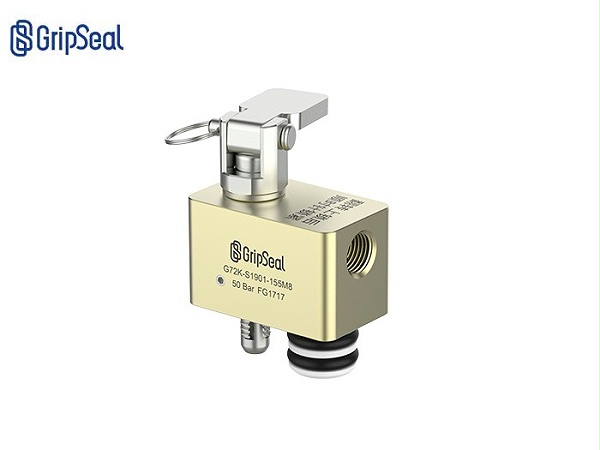

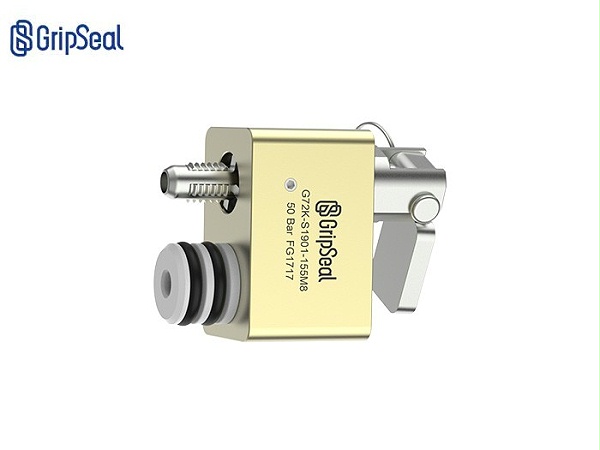

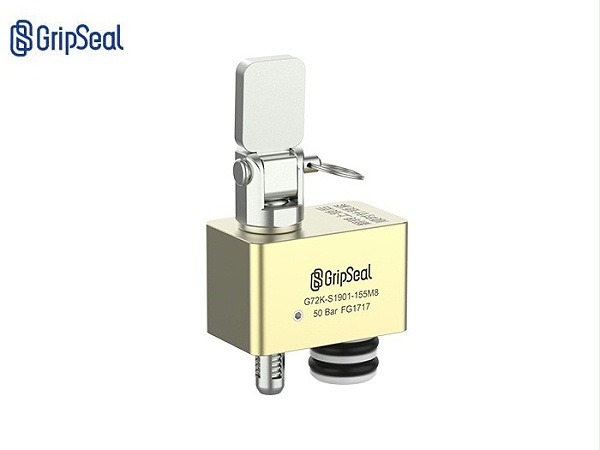

G72KThreaded quick lock sealing connector-animation operation

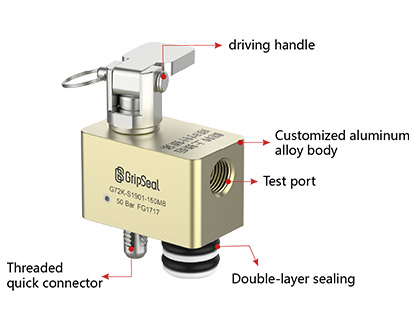

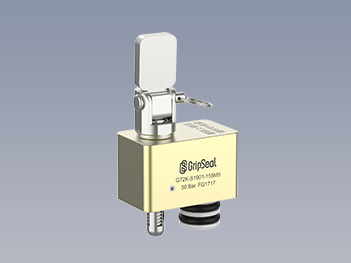

Product parameters

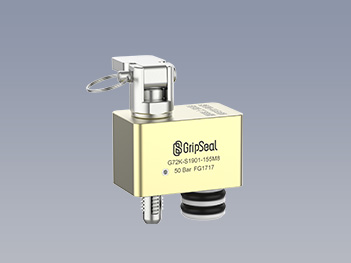

Handle drive: flip the handle to lock, simple and convenient
Aluminum alloy body: lightweight and durable, with low operating strength

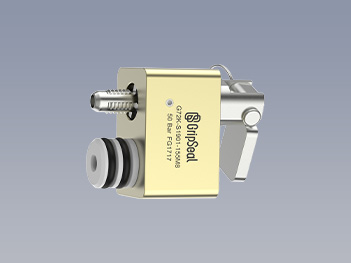

Thread quick connection: high-strength minions, stable and reliable

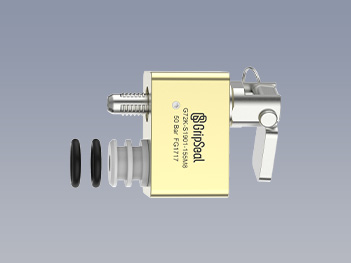

Quick replacement of sealing rings: easy replacement of sealing rings and simple maintenance

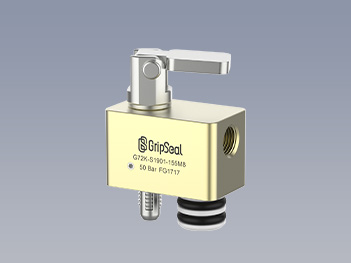

Test Hole: Side UseGThreaded test holes, customizable threaded holes
Operation method

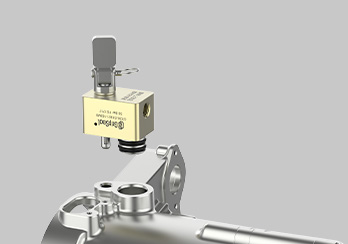

Put the front end of the connector into the hole to be sealed.

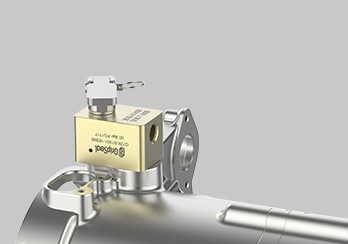

Fold the handle

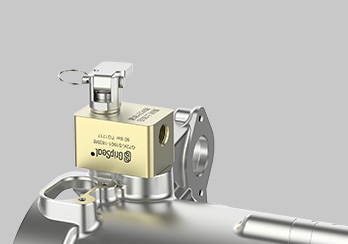

The handle is tightened clockwise to complete the connection.
