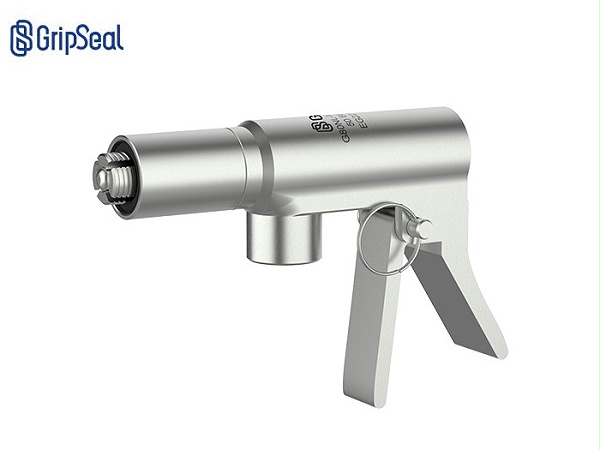

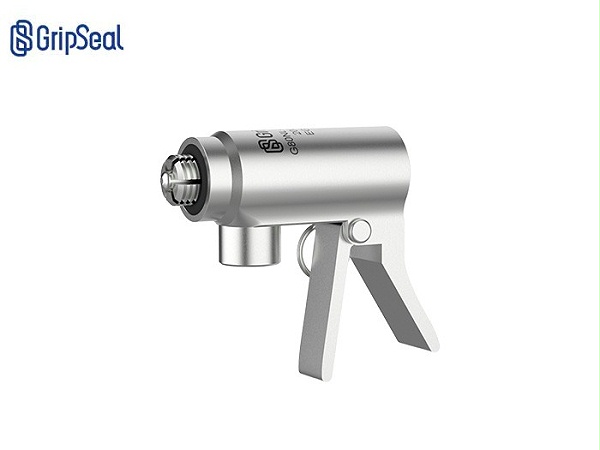

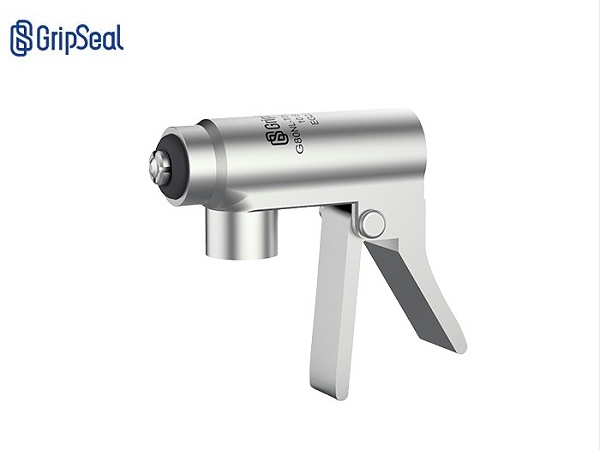

G80N Mini Female Thread Connector

The G80N series connector is a short connector of the G80 series. It is designed with a side handle and can be easily connected by pinching the handle. The total length is half that of other connectors on the market. If the space above the test interface is limited, this is a good choice.

EMAILEMAIL:info@gripseal.com

product parameters

Product parameters

Maximum operating pressure From vacuum to350Bar
minimum insertion depth Please refer to the relevant selection table
traffic interface G1/8,G1/4,G3/8,G1/2
main material 316stainless steel
Main sealing ring material Nitrile rubber
Internal sealing ring material Nitrile rubber/fluororubber
operating temperature -20℃-120℃

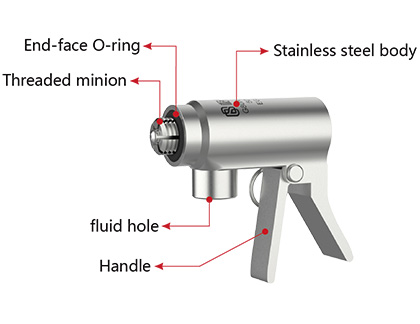

G80NQuick connector specifications and parameters

Product video

Product video

G80NLSeries Quick Connectors-operation video

Product features

Product parameters

Product features

Lossless connection:
No scratches on customer products.

Product features

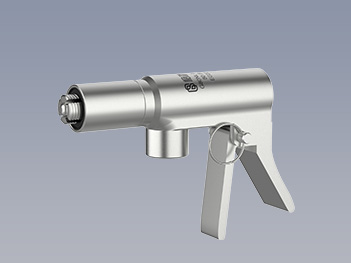

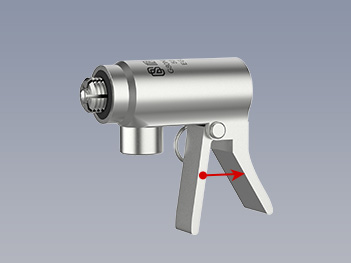

Side handle design: easily pinch the handle to achieve connection

Product features

Neck length customization: avoid interference

Product features

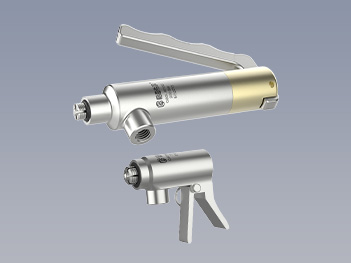

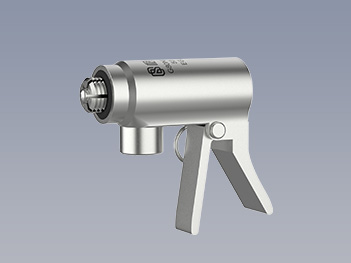

Limit small size: half shorter than other connectors on the market

Product features

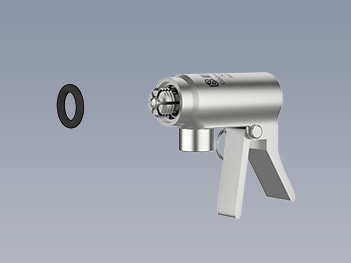

end faceOType sealing ring: easy to replace and easy to maintain


operation method

Operation method

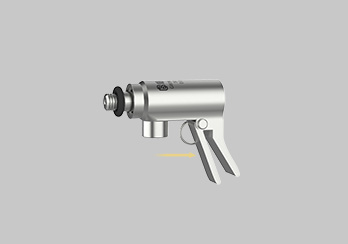

Step one.

Step one.

Press handle

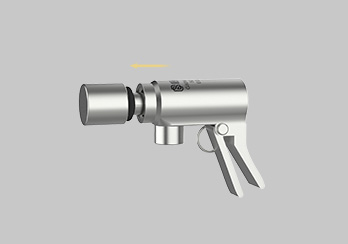

second step

second step

Insert threaded hole

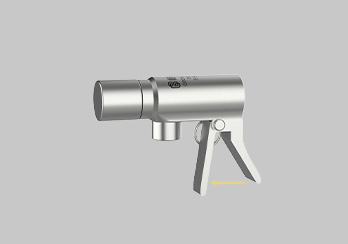

Step three

Step three

Release the handle and complete the connection.

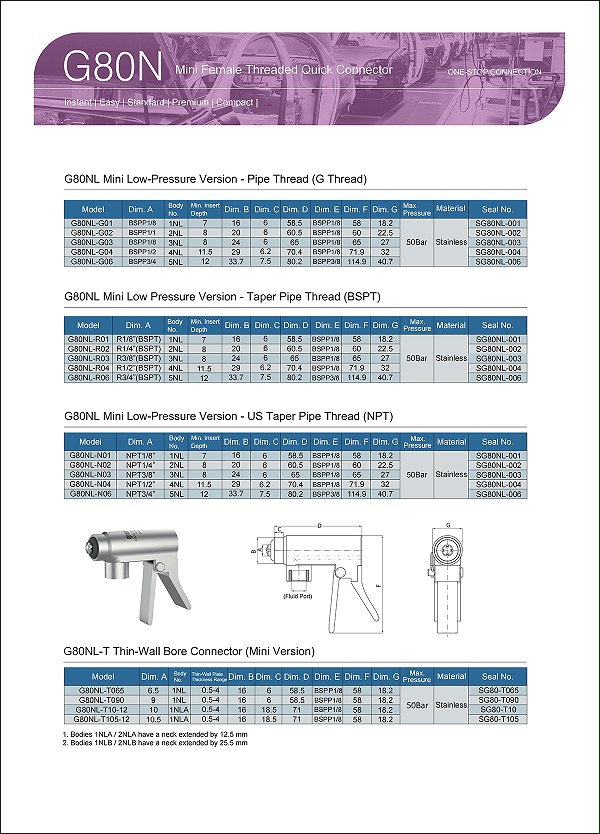

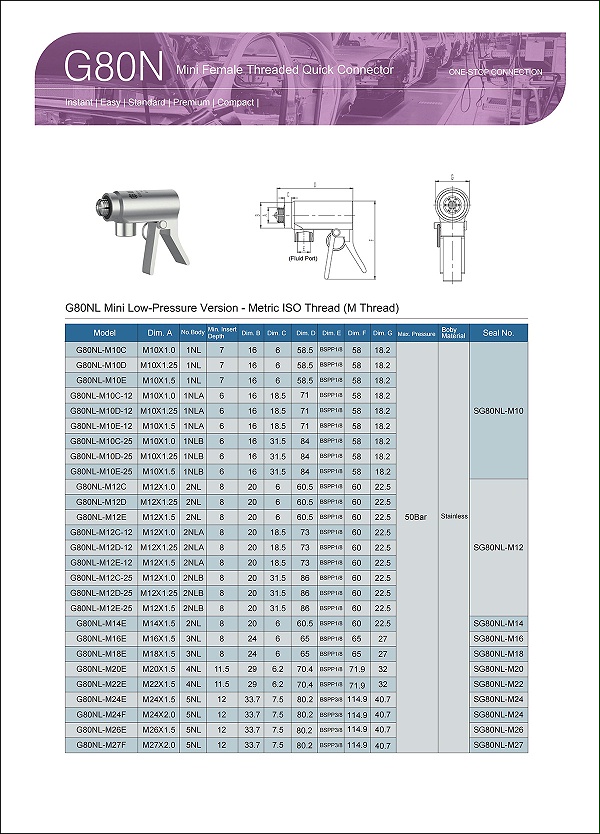

G80NMini internal thread connector selection table

G80NMini internal thread connector selection table
