EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to350Bar |
| minimum insertion depth | Please refer to the relevant selection table |
| traffic interface | G1/8，G1/4，G3/8，G1/2 |
| main material | 316stainless steel |
| Main sealing ring material | Nitrile rubber |
| Internal sealing ring material | Nitrile rubber/fluororubber |
| operating temperature | -20℃-120℃ |
Product video

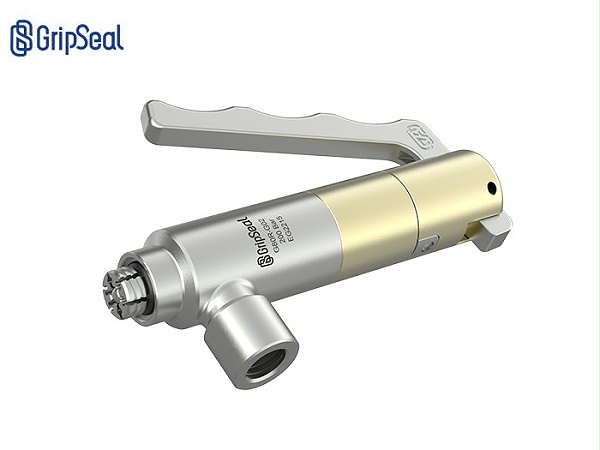

G80RSeries Quick Connectors-operation video

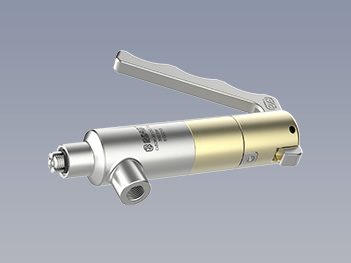

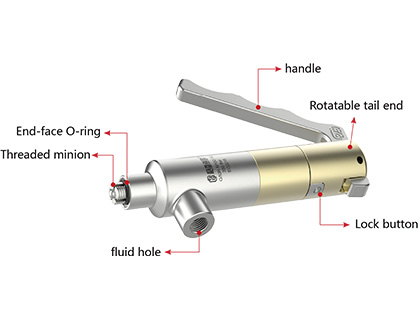

Product parameters

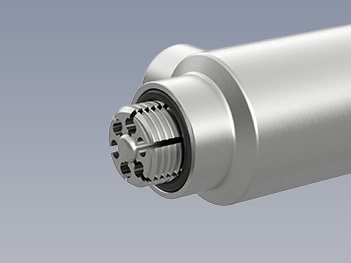

Internal thread hole: Screw claw expansion locking, less damage to screw teeth

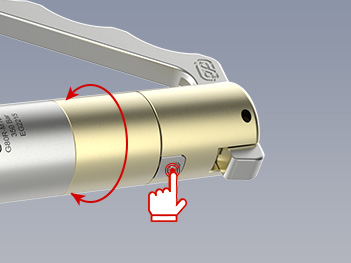

Rotatable handle: Solve the problem of handle position interference

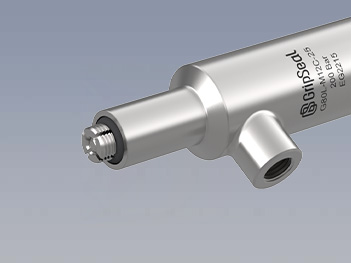

Neck length customization: avoid interference
Flow holes: Some are equipped with increased flow holes to shorten the test time

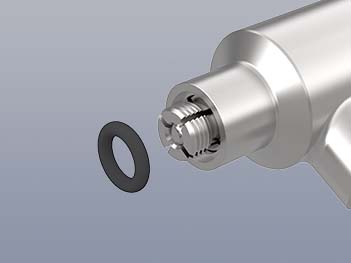

end faceOType sealing ring: easy to replace and easy to maintain
Operation method

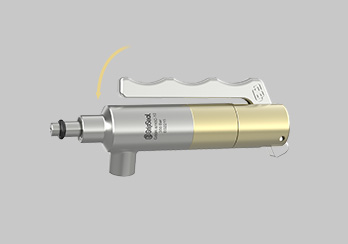

Press handle

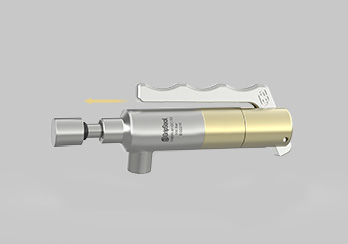

Insert threaded hole

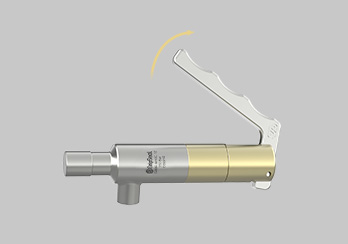

Release the handle and complete the connection.
