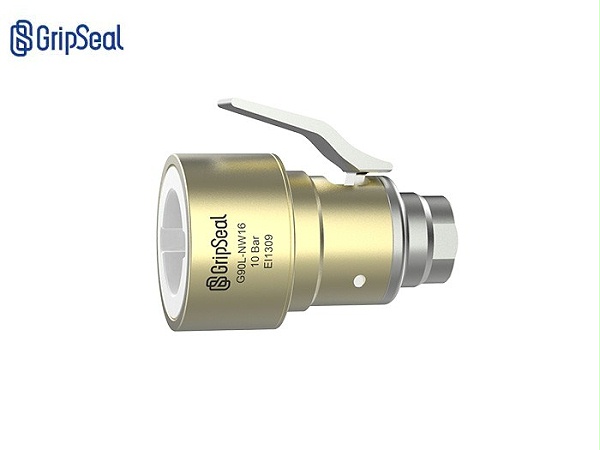

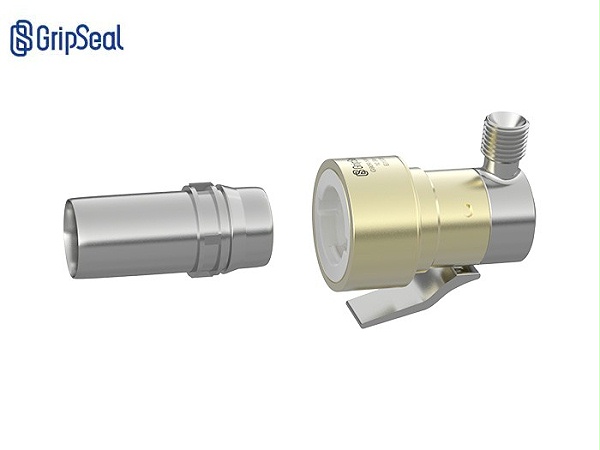

G90LThe series connector is a sealed connectionNWSeries interface products, the connection is designed non-destructive to prevent scratching the product, the handle is designed on the side, press-type operation, there are through and side out forms, and the tail interface is rich.
EMAIL:info@gripseal.comProduct parameters
| Maximum operating pressure | From vacuum to10Bar |
| minimum insertion depth | 10mm-56mm |
| traffic interface | G1/8，G1/4，G3/8，G1/2 |
| main material | Aluminum alloy, stainless steel, nylon |
| Main sealing ring material | Nitrile rubber |
| Internal sealing ring material | Nitrile rubber |
| operating temperature | -20℃-120℃ |
Product video
G90LSeries Quick Connectors-operation video
Product parameters

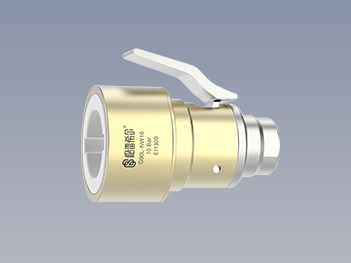

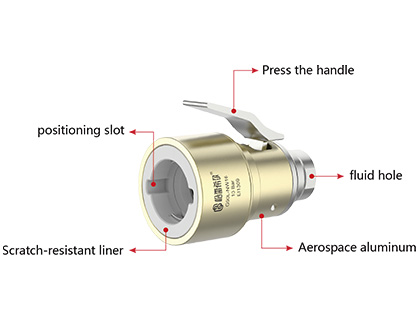

Lossless connection:
No scratches on customer products.

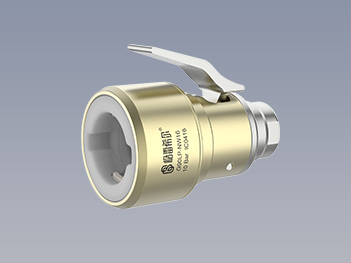

Handle operation: The handle is designed on the side, press operation

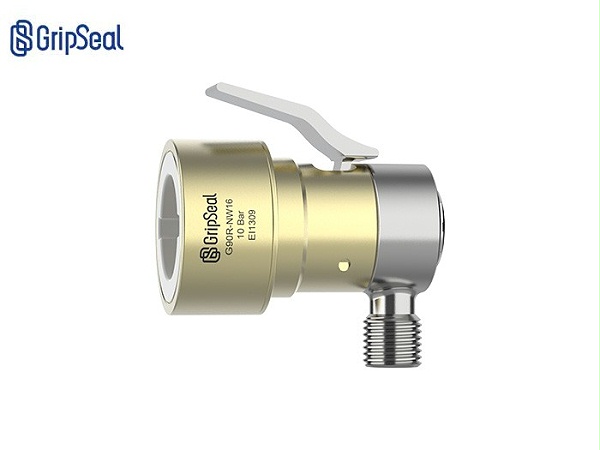

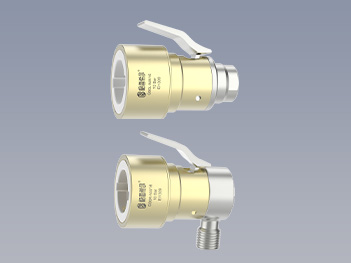

Optional orientation: Through and side air intakes are optional, flexibly configured according to the on-site environment

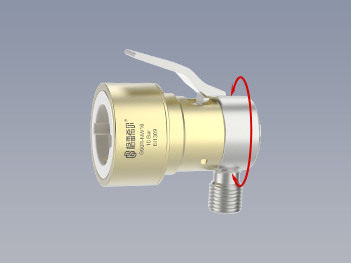

The tail interface is rotatable: solving the interference problem of the side fluid hole
Apply toNWInterface:VDA-NWinterface specification
Operation method

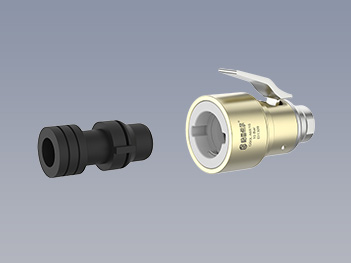

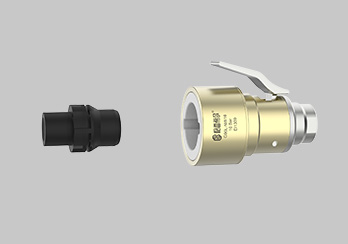

Align the quick connector with the female head.

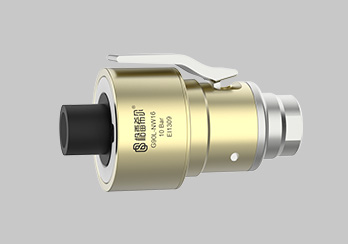

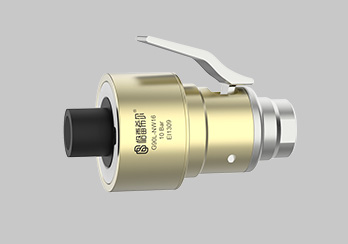

Insert to form a seal
Press and hold the side pressure rod to easily pull it out.
