The core function and working principle of the filling quick connector, and its application scenario analysis

GripSealCZSeries quick connector is a leak-proof connection tool for fast filling of compressed gas, and can also be used for gas tightness detection of compressed gas cylinders. It is suitable for industrial gas, energy, fire protection, chemical and other fields to prolong the life of gas cylinder valves, reduce gas leakage losses, and improve filling efficiency.

Core functions and working principle

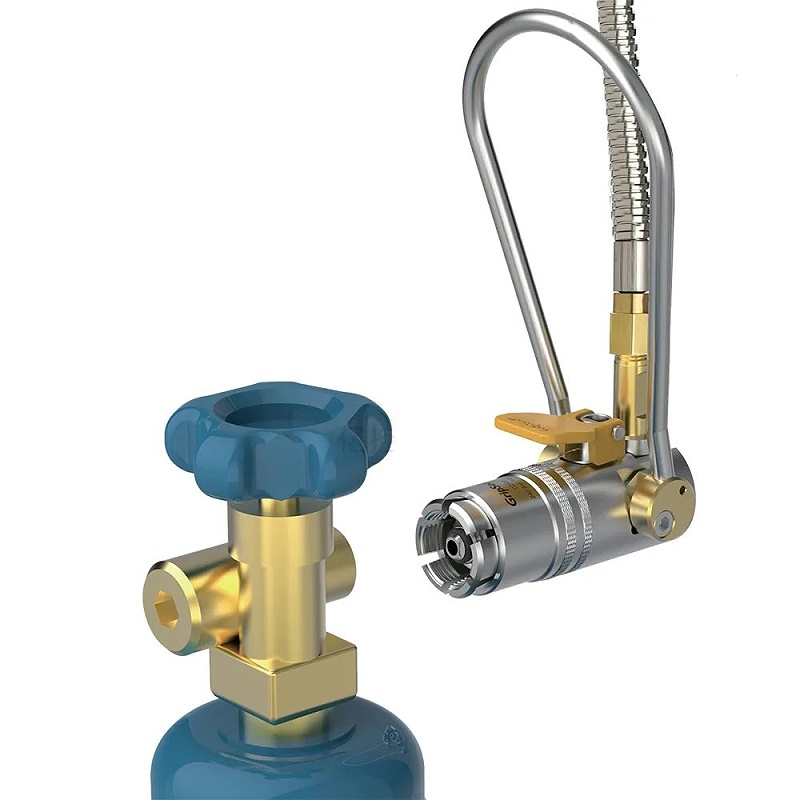

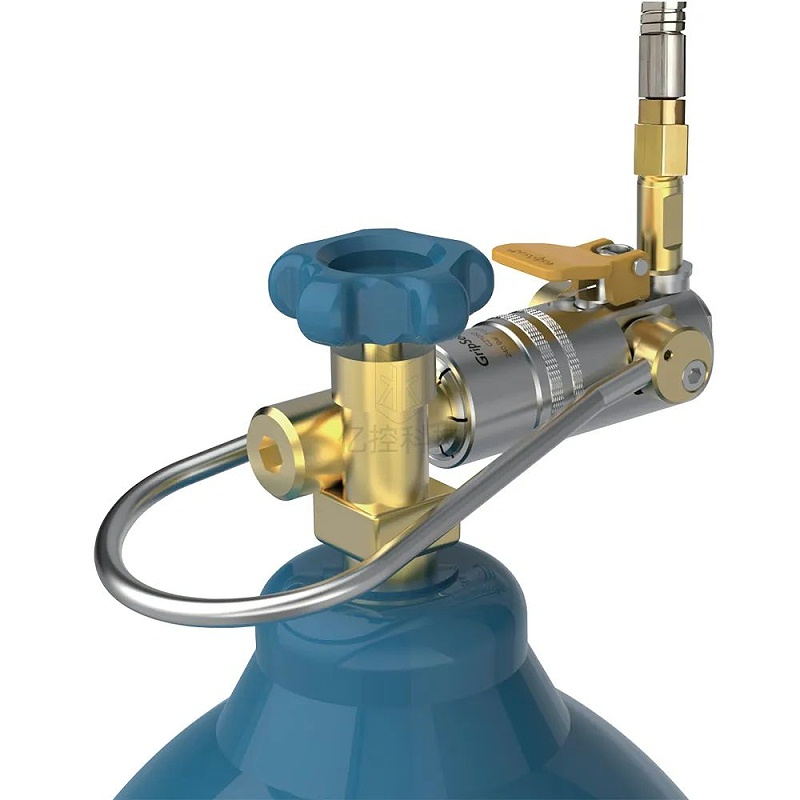

As a leak-proof connection tool, quick connection can be achieved without screwing screws and hand wrapping the raw material belt. Its working principle is that when the joint is connected to the valve, put down the safety ring, and the safety locking mechanism inside the joint will automatically pop out the locking connection to establish a firm seal. On the other hand, the safety ring covers the valve port, which can prevent the joint from being disconnected due to accidental collision, and ensure the safety and convenience of inflation. Through mechanical locking and no-twist design, safety accidents caused by human operation errors are reduced.

II. Typical application scenarios

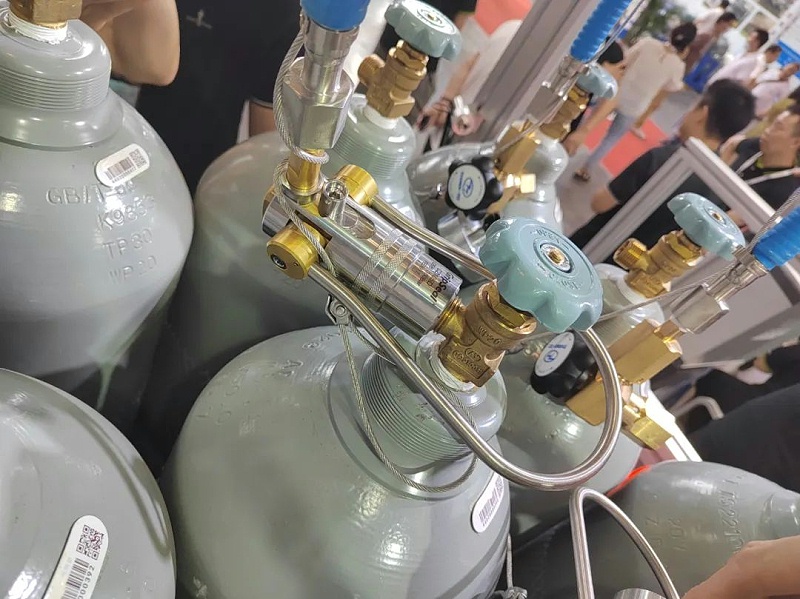

Industrial gas filling: rapid filling and transfer of high-pressure cylinders such as oxygen, nitrogen, and argon.

Air tightness testing: Leak testing of gas cylinders when they leave the factory or are regularly maintained to ensure safety.

Emergency rescue: quick replenishment of fire cylinders and respirator cylinders to ensure the availability of equipment.

Energy sector: hydrogen fuel cell hydrogen storage tanks,CNG/LNGFilling and testing of gas cylinders.

III. Precautions for use

Operating Specifications: Ensure that the cylinder valves and joints are clean and free of impurities to avoid foreign objects affecting the sealing.

Pressure limit: shall not exceed the nominal maximum working pressure of the joint(As marked50MPa)。

Maintenance advice: regularly lubricate moving parts(Such as locking mechanism), replace the aging sealing ring. Avoid contact with strong acids, alkalis or organic solvents to prevent material corrosion.

Summary: GripSeal Gas Cylinder Filling Quick Connector is an ideal tool in the field of high-pressure gas filling and testing with safety, efficiency and durability as its core competitiveness. For industrial scenarios that require frequent operation of gas cylinders, its technical design can significantly improve the safety and economy of the operation.
