GripSeal G80 Series: High Pressure Sealed Connection Solution for Brake Caliper Internal Threads

In the manufacturing process of automotive brake system parts, the air tightness test of the brake caliper is always a hard threshold. For this component that is directly related to driving safety, the piston cavity must withstand high pressure impact and continuous production line verification before leaving the factory. Once the sealing link fluctuates, it will affect the feel of the brake foot at light, and may lay a safety hazard at heavy. Therefore, the test line selected Quick seal joint, not only to "connect", but also to "lock tightly and withstand".

Sealing challenges in high-pressure scenarios

The difficulty of brake caliper testing lies in the complexity of working conditions. The test medium is usually high-pressure gas, and the pressure requirements are strict. At the same time, the production line is fast, and the joint needs to maintain smooth operation during the whole process of thread alignment, insertion, sealing, and disengagement. Any stagnation or leakage may cause the whole line to stop.

G80Series: Built for internal thread high pressure testing

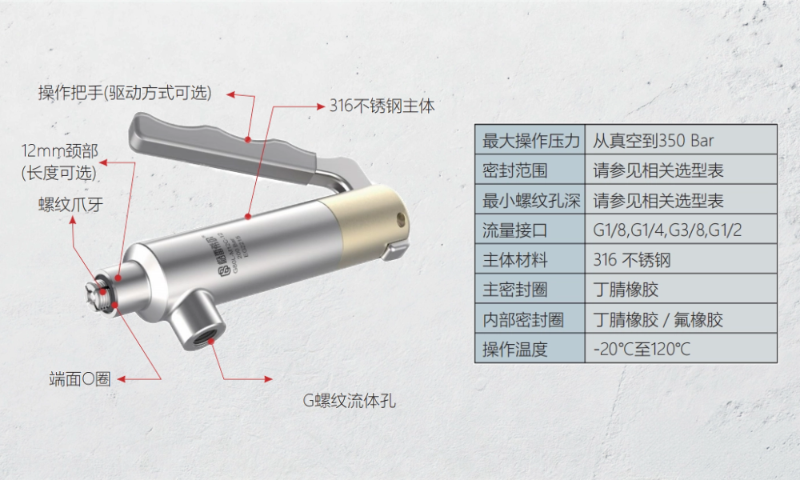

In response to the above difficulties,GripSealG80Series Threaded Quick Seal CouplingThe coping plan is given. The series can bear the highest pressure350Bar, sufficient to cover the high voltage test requirements of the brake caliper. Overall use316The stainless steel structure guarantees the mechanical strength and wear resistance under high-frequency insertion and unplugging, and avoids the sealing failure caused by structural deformation.

More than just sealing: flexible response with modular drive

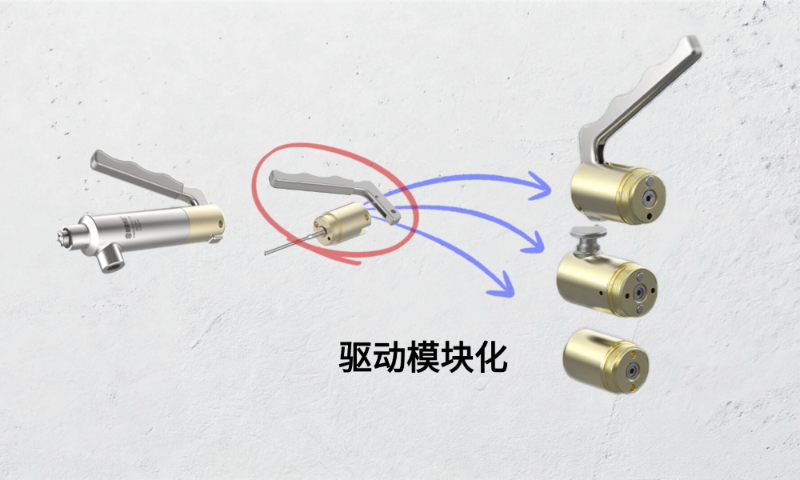

The caliper production lines of different manufacturers vary in shape - from manual assembly lines, semi-automatic stations to fully automated test benches, with very different requirements for the drive mode of the sealed joint.G80One of the highlights of the series is its modular drive design.

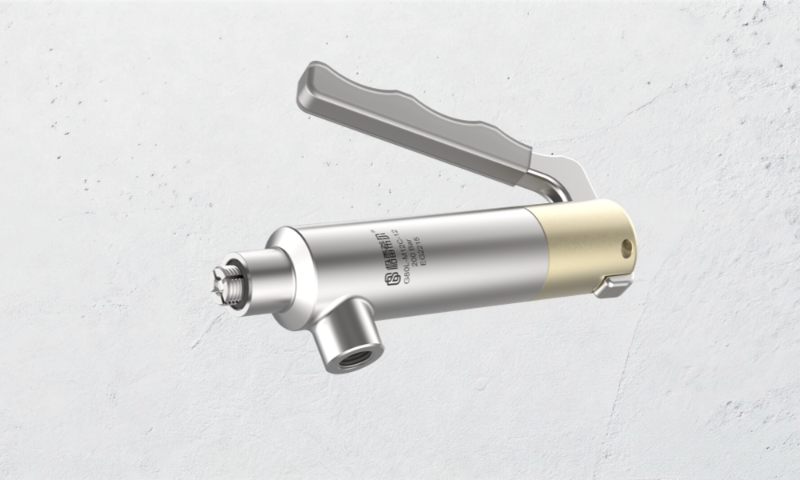

Handle drive (G80L): Suitable for manual lines, the operator can complete the locking and sealing through the pressure rod, with a clear feel and direct feedback.

Pneumatic drive (G80P): Integrated into a semi-automatic or fully automatic station, the joint action is controlled by pneumatic signals, which is convenient for integration with the automation control system.

Button driver (G80V): Suitable for scenarios that require the operator to manually trigger but wish to reduce labor intensity, the button controls the airflow switch to achieve semi-automatic sealing.

More importantly, these three types of drive modules can be quickly interchanged on the same main body. When the production line is upgraded in the future, there is no need to replace the entire joint, and only the drive module can be replaced to match the needs of the new station, which greatly reduces the cost of equipment transformation and the pressure on spare parts inventory.

Detail design: tailor-made for caliper testing

In the real caliper test tooling environment, we often encounter the problem of space interference - the caliper body is complex in shape, and there are sensors, fixtures and other equipment around it. G80Series quick connectorAvailable in a variety of neck lengths, allowing the connector body to avoid surrounding obstacles and access the threaded hole smoothly.

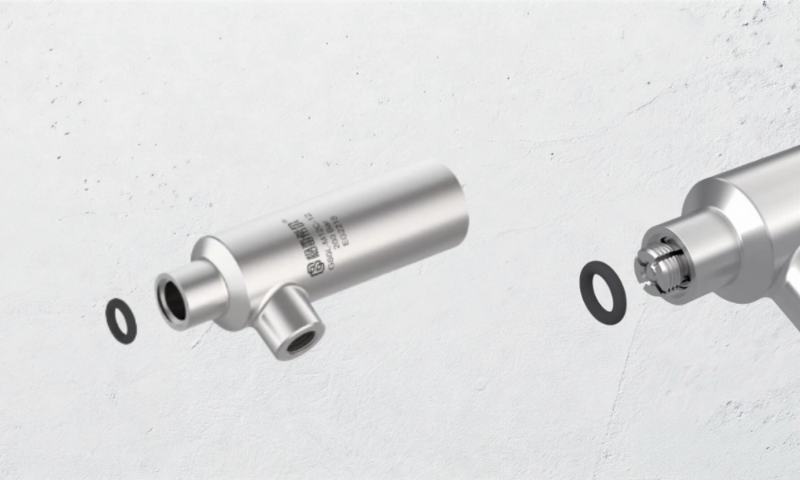

In addition, the end face sealing ring at the front end of the joint adopts an easy-to-replace design. The sealing ring material can be flexibly selected according to the test medium: nitrile rubber is used in conventional airtight tests, and chemical-resistant materials such as fluororubber can be replaced when brake fluids or special oils are involved. This modular maintenance idea allows the replacement of the sealing ring to be completed in only a few seconds, and the production line downtime is compressed to a minimum.

Reliability and maintainability

For mass-produced brake caliper manufacturers, the long-term use cost of the connector is often more worthy of attention than the initial purchase price.G80Series quick connectorThe internal structure is designed with standardized components. Once worn or damaged, the whole group can be replaced, and maintenance personnel do not need to carry out complex disassembly and debugging on site. This "ready-to-use" feature makes the overall efficiency of the production line a real improvement.

From brake calipers to new energy Sandian, from airtight testing to high-pressure fluid flow, GripSeal has always focused on the core concept of "easy to grab and easy to seal" to provide stable and reliable quick-sealing joints for industrial testing. Relying on nearly two decades of engineering accumulation and continuous material process innovation, GripSeal will continue to deepen the key link of test connection to provide a solid and reliable connection guarantee for every test link.
