GripSeal Quick Seal Connector: Efficiently Addressing the Challenges of New Energy Battery Pack Explosion-Proof Valve Testing

Batteries in new energy vehiclesPACKIn the manufacturing and testing of (battery pack), the explosion-proof valve is a key part that cannot be overlooked. BatteryPACKDuring operation, a large amount of heat is generated, causing the internal pressure to rise. When the pressure reaches the set value, the top core inside the explosion-proof valve will be lifted to complete the pressure relief to protect the safety of the battery pack.

However, the explosion-proof valve in the closed state becomes the first obstacle during the airtightness test of the package or the inflation operation. The tester needs to pull up the top core and keep it open to ensure the smooth flow of the inflation channel. The traditional operation method is not only cumbersome, but also difficult to ensure the consistency of each connection.

GripSealG20FSeries: Powerful magnets to solve the top core problem

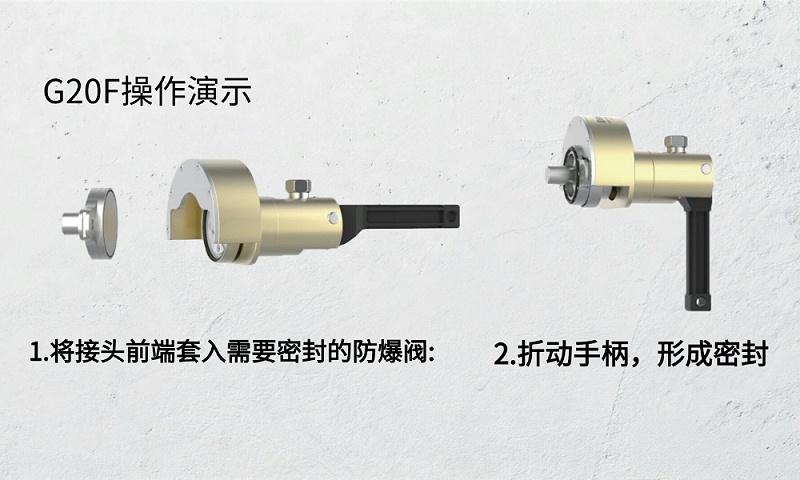

In response to this testing pain point, GripSeallaunched G20FQuick sealing joint for series explosion-proof valveThis series of products adopts handle operation, the operator only needs to align the explosion-proof valve bayonet and fold the handle90The connection and sealing can be completed by degrees, and the whole process is simple and labor-saving.

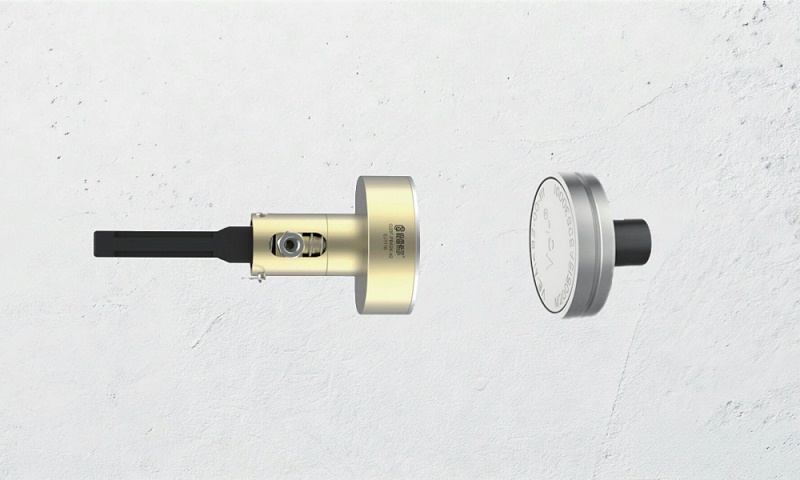

In terms of structural design,G20FThe series integrates a high-performance strong magnet or suction cup design, which can automatically pull up the internal top core when the connector is connected to the explosion-proof valve, allowing the test circuit to be unobstructed in an instant. At the same time, the product adopts the end face sealing method, and the sealing ring is easy to replace, which is convenient for later maintenance; the main body is made of aviation aluminum, which is light and strong, which can not only ensure the service life of the connector, but also reduce the load on the operator.

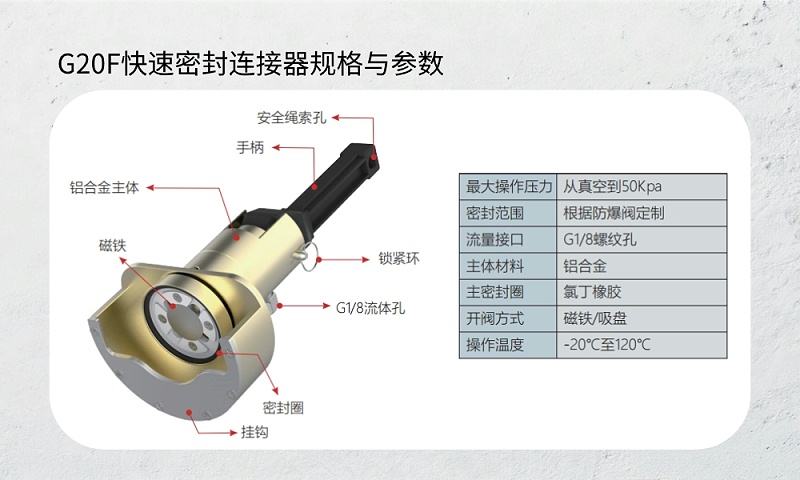

G20FSeries maximum operating pressure from vacuum to50KpaThe sealing range can be customized according to the specifications of the explosion-proof valve interface, and the fluid interface isG1/8Threaded hole, operating temperature range is-20℃to120℃It can meet the requirements of routine operating conditions for new energy battery pack testing.

Rich models and customization capabilities to respond quickly to customer needs

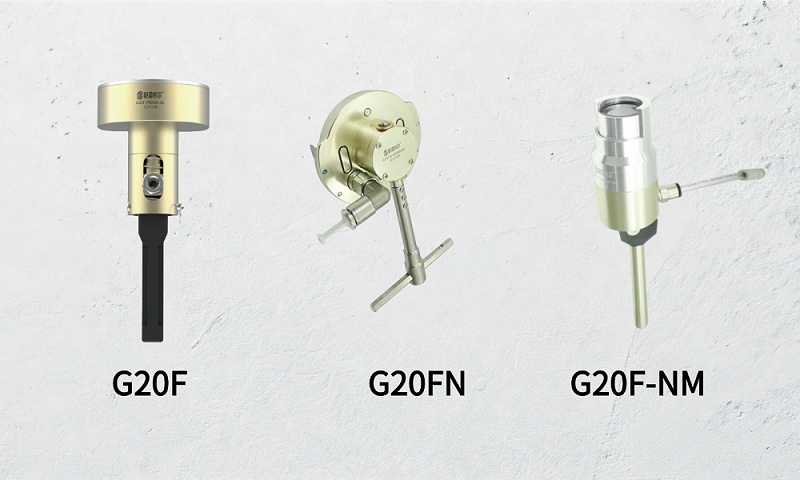

Considering the availability of new energy batteries on the marketPACKThere are many models of explosion-proof valves, GripSeal is designed forG20FThe series has made a full inventory plan. The series itself is a special design for explosion-proof valves, and it also supports flexible customization according to the specific interface specifications of customers. Whether it is a common standard model or special needs, it can be quickly supplied to meet customer testing requirements in the first time.

From the top core of the explosion-proof valve to the stable connection of the battery pack test,GripSealG20FSeries Quick Seal CouplingWith accurate gripping design and reliable sealing performance, the testing process of new energy battery packs is no longer blocked. GripSeal will continue to focus on the innovation of fast sealing connection technology to provide a more efficient and stable connection solution for the explosion-proof valve testing of new energy battery packs.
