Automatic detection and liquid addition of air conditioner external unit

The last test process before the air conditioner leaves the factory includes vacuuming and automatic liquid addition.

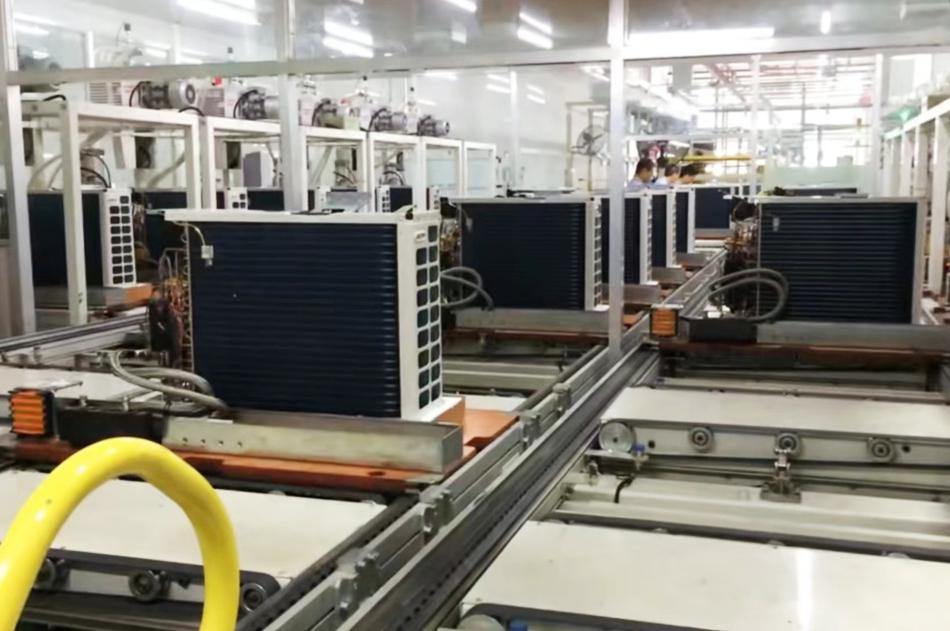

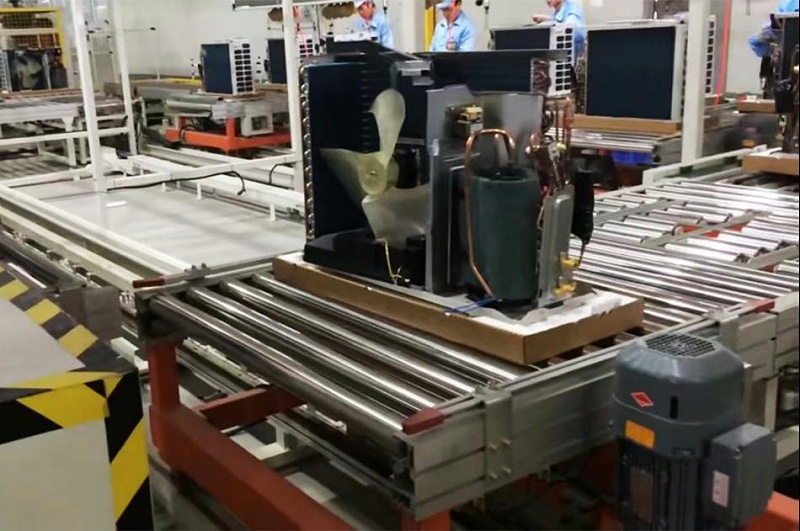

The whole machine has a paper tray into the metal tray.

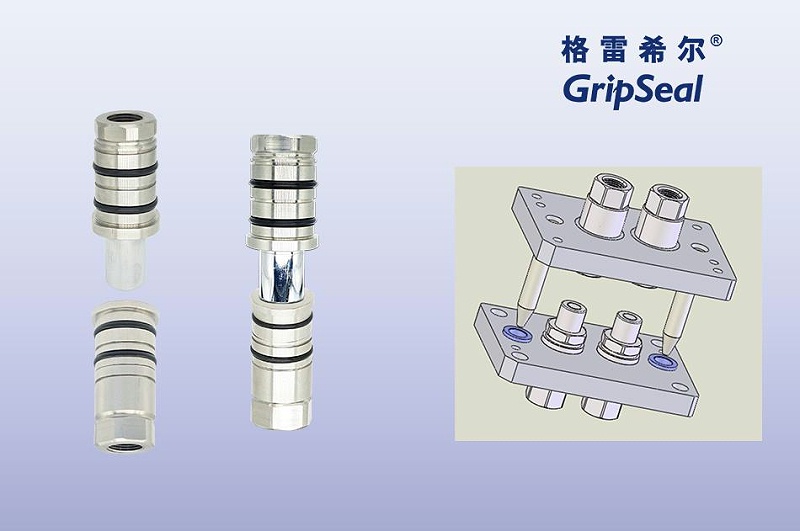

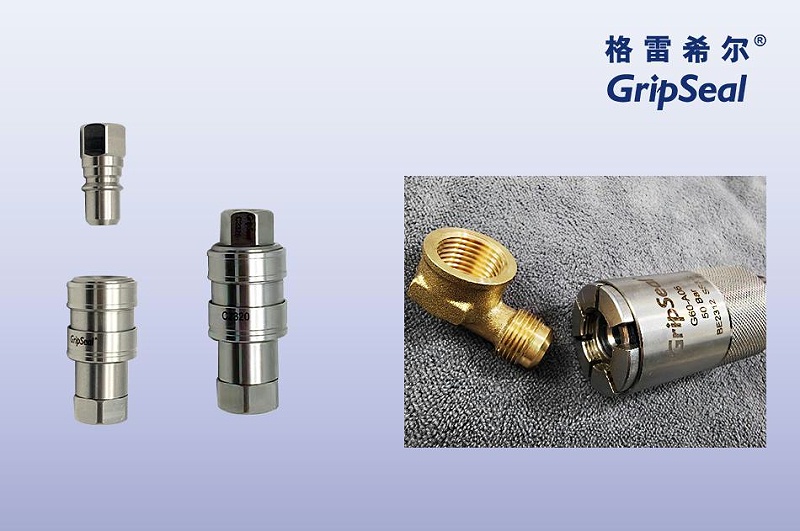

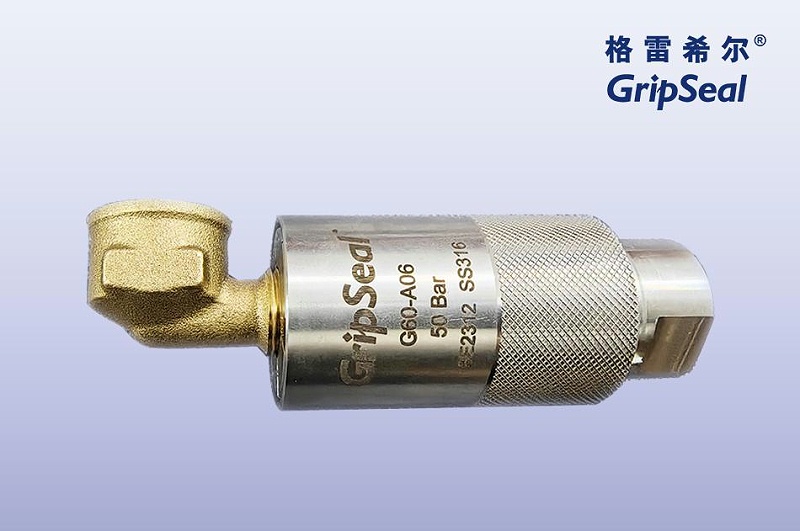

Each moving tray has a fixing plate coming out of two metal woven hoses, and the end of the hose can beC23seriesMale and female head The form and product connection can also beG60Threaded quick plug connectors and product docking, flexible selection of GripSeal products according to requirements.

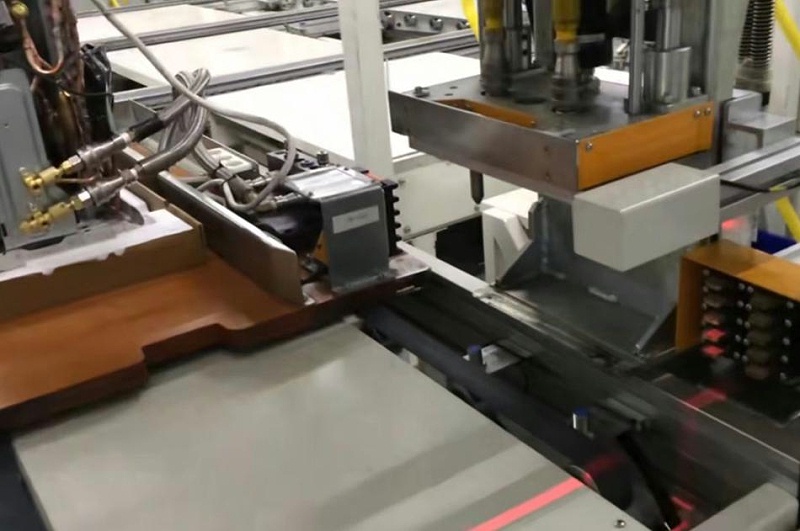

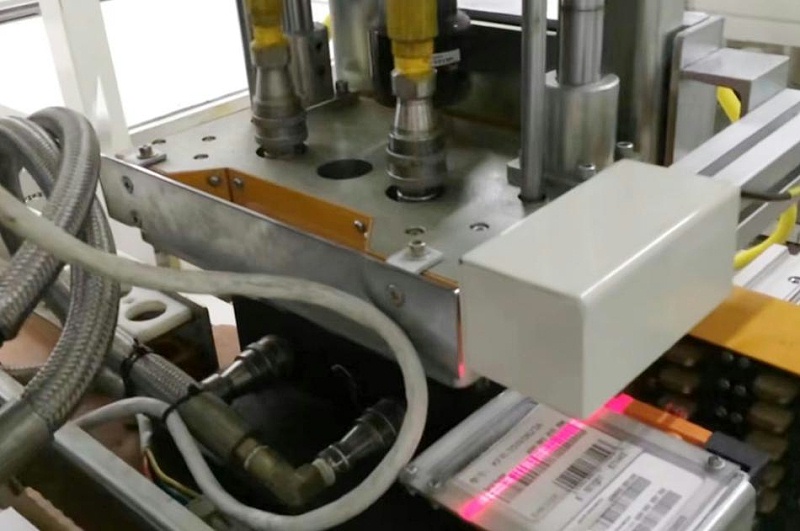

The moving tray comes to the designated location with the assembly line. After automatically scanning the code, the movable docking plate of the fixed station is docked with the plate of the tray from top to bottom.C20After the series male and female heads are connected, vacuum and automatic liquid addition will start. The separated plate will start from the lock to ensure good sealing performance, so that the product can enter the next link with the moving tray.

GripSeal Brands can provide the most suitable production efficiency products for automated and manual applications. We have multiple engineers to provide solutions for you, and we welcome inquiries from new and old customers at any time.
