Use scheme of pneumatic automatic quick connector for threaded pipe

Threaded pipe automationQuick connector It is often used in kitchen and bathroom appliances, instrumentation, fuel engines, new energy and other industries to quickly seal and connect products to assist in completing more product tests, such as airtight testing, waterproof and dustproof testing, etc.

GripSealGripsealAccording to customer needs: performance testing of plastic bucket valves in the bathroom industry, quick sealing connection, industry standard external threadG1/2, water pressure5BarRight and left.

Precautions for determining the plan through communication:1Plastic material, no obvious scratches, no damage to the screw teeth;2On-site semi-automatic operation, and the site is mostly female workers, minimizing the operation effort.3It is necessary to cooperate with the existing console for easy installation and operation.4Quick connectors are required to have large passages, which is convenient for testing, reducing water passage time and improving test efficiency.

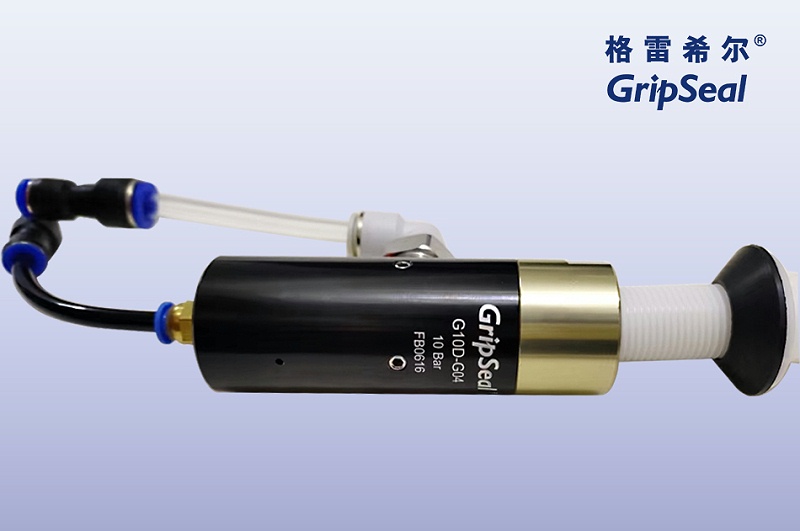

GripSeal Automation and/Semi-automatic quick connector engineer after communication and docking, recommended useG10DSeries external thread automatic quick connector, pneumatic drive, manual semi-automatic operation is labor-saving (automatic operation is more efficient). The sealing ring (silicone rubber or neoprene rubber) is soft and will not be damaged in contact with the plastic screw teeth; the external card connection should keep a larger fluid diameter as much as possible.

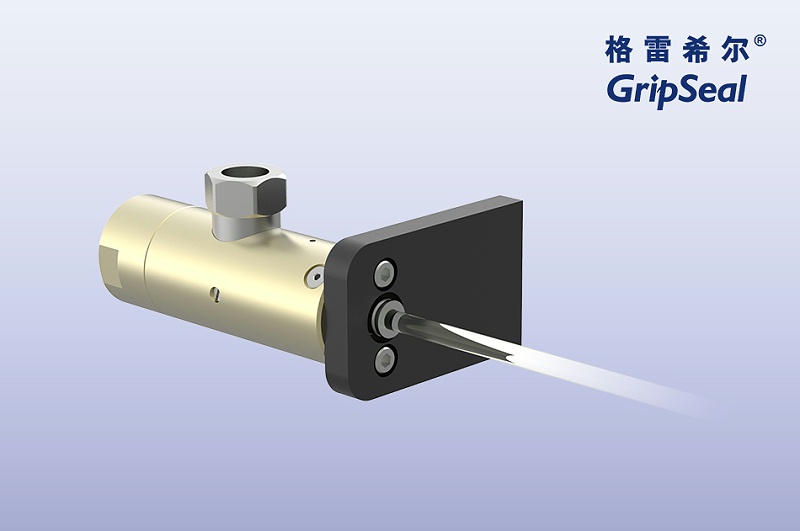

Threaded pipe pneumatic quick connectorG10DAccording to the user's workshop site semi-automatic use method:1Reserved at the end of the connector4A screw hole can be directly installed on the console.2Connect the drive source and set up the control valve or match the solenoid valve.3To connect the test air source pipe or water pipe, it is necessary to match the threaded adapter according to the reserved interface and the actual on-site water pipe connector, or match the corresponding male and female joints.4Test and debugging before going online, set the air source pressure, pressure relief time, and bucket water time. simple4The preliminary preparation work can be done in one step, and the installation is convenient. During the actual online product test, the worker only needs to insert the product to be tested into the connector to seal it instantly. The worker is light to operate and more labor-saving.

GripSealGripseal The automated threaded quick connector has been continuously upgraded and optimized through laboratory testing and actual feedback from market users, resulting in faster and more stable connection operation.G10DThe series of threads are quickly connected to the throttle, selected according to the thread specifications, and the commonly used thread specifications in the market are stocked in stock, which saves the plan time and does not delay the construction period.
