Case name

Air tightness test of copper pipe in water heaterQuick seal joint

customer demand

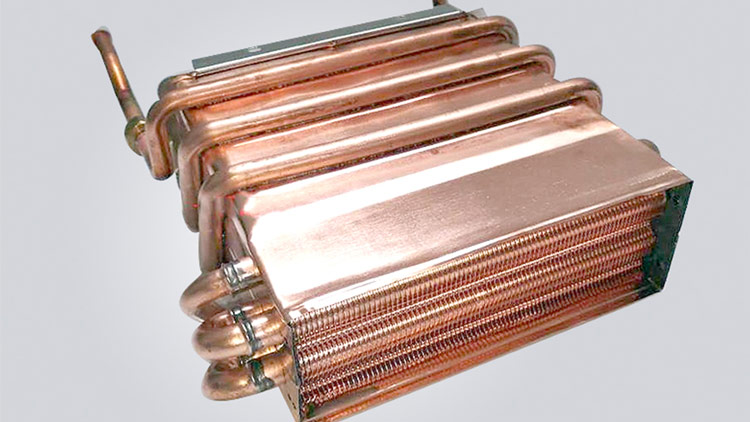

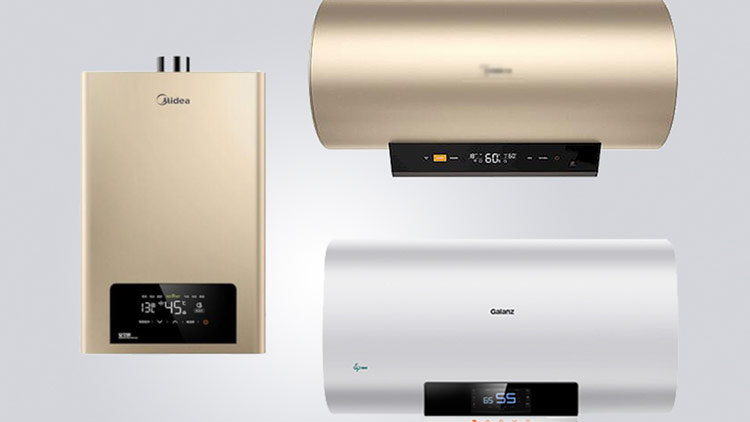

The industry manufacturer customer is a domestic manufacturer of water heaters, kitchen appliances, and hot water systems. During the assembly process of the water heater, the welding points of the water tank need to be tested for airtightness. The water tank joints of different products are different. The water pipes are wound with copper pipes, and the final interface position is not easy to determine. Quick test joints need to be configured.

Program introduction

Sales engineers provide customers with the choice of products through their understanding of customer testing requirementsGripSealQuick seal joint solution. ProvideG72Series flange tube/Special sealing joint for special-shaped pipe mouth, made of all aluminum alloy, light weight, does not generate excessive force on the copper pipe of the water tank, button or air pressure drive, reduces the labor intensity of the operator, compact structure, sealing object is the interface at the end of the copper pipe, the position requirements are not high, and there is no need to make special metallurgical tools, saving costs.

Program advantage

Realize fast sealing connection, adapt to high stress testing environment, seal reliable, light and easy to operate, improve testing efficiency.

Customer feedback

useGripSealQuick connector is used for water heater tank copper pipe testing, which significantly reduces the operating strength, is light and firm, is safer and more reliable, and reduces the risk of test misjudgment. One-second connection, instantaneous sealing, products and services achieve the desired effect of customers.

application development

GripSealQuick-sealing fittings can also be applied to other water heater test items, such as water heaters(Household or commercial?)Comprehensive test, comprehensive test of water storage tank body, heat exchanger, water mixing valve, bathroom faucet fittings, intelligent toilet cover and other operation sealing test connections.

related products

G60Series Quick Seal Connector、G72Series Quick Seal Connector、G85Series Quick Seal Connector
