Industrial Leak Detection Test Quick Connector Solutions

GripSeal Industrial leak test quick connectors provide connection sealing services for industrial customers in a wide range of industries during leak testing, whether it is automotive parts/New energy vehicles, home appliance water heaters, instrumentation, valves, and pipe fittings all have a large number of hermetic leak detection requirements. From bubble leak detection, air pressure leak detection to helium leak detection, water pressure leak detection or oil pressure leak detection, etc., all involve a large number of threads, nozzles, and special-shaped nozzles. Poor sealing makes a lot of misjudgments, rework, and tedious processes in the industrial leak detection process, with huge potential rework and scrap quality losses.

Now, GripSeal reliable quick-sealing couplings are specifically designed for fast/Reliable sealing connection design, easy to grab, easy to seal, Continuously assist customers in improving the efficiency of industrial leak detection testing.

Industrial Leak Detection Test Quick Connector Solution

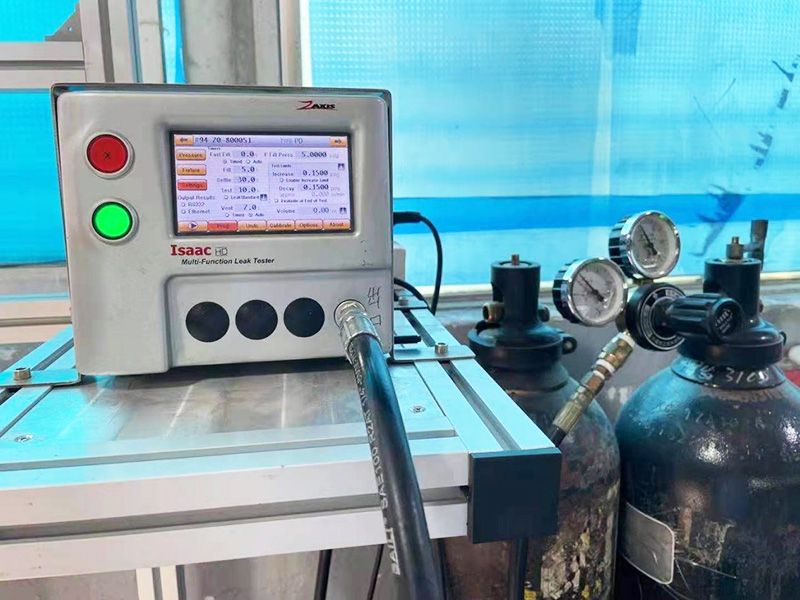

Industrial leak detection is to test the product for airtightness after some welding joints, bonding points, rubber ring sealing and other processes to ensure that the product will not leak. Generally, customers will conduct various pressure level leak detection tests on the product through bubble test, air pressure leak detector, helium leak detector, water pressure testing device, oil pressure testing device, etc., to ensure that the product meets the set air tightness requirements.

The leak detection of batch industrial products is inseparable from the connection, because most leak detection methods will not tell where the leak is, so the leakage of the connection will eventually make the system determine that the product is leaking. Especially the connections of similar engines are complex, including threads, nozzles, heterosexual nozzles, plate seals, etc., as well as some castings, plastic parts, etc., which pose a great challenge to the connection. Any "silent" leak in any place will make the entire leak detection process misjudged, and it is difficult to find the specific leak. The process of reworking and finding the problem point is very time-consuming. According to the statistics of an engine manufacturer, the quality loss caused by connection problems can be as high as tens of millions.

Industrial Leak Detection Test Quick Connector Solution

Need a reliable and fast sealed connection solution?

plan description

GripSeal quick connector, one-second connection, instant sealing, one-stop connection solution We are the engine/New energy three electricity test/Air conditioning parts/Water heater parts/Auto parts/valve fittings/Medical apparatus and other industry customers Industrial leak testing provides fast and reliable quick sealing joints. Through GripSeal core sealing technology, the connection is well sealed. Less investment in exchange for a significant reduction in the false positive rate of airtight testing and a significant increase in test efficiency. For various nozzles, We offer the following quick-sealing fittings. No need for raw material belt, no need to tighten, no need for clock in hoop or complex non-standard fixture, fast and reliable sealing.

Internal and external thread connector

You can choose.G80orG80SShort internal thread connectors, available in various lengthened neck versions, can be provided, whether it isM10stillM12Or other internal thread specifications,G80It can complete the threaded connection in one second and provide a high sealing level, which is easy to operate. For some larger threaded nozzles, such asM34Above, we also offer aluminum alloy versionsG80, used in some engine cooling ports. Automatic internal thread applications can be selectedG80PA series of pneumatic internal thread fittings meet the requirements of high-frequency automated thread testing.
flanged tube/Water inlet connector

You can choose.G70The flange pipe connector can meet both water and airtight leak detection. If it is only airtight leak detection, you can chooseG35Tube hole connector, light and durable. Can be selected for low voltage occasionsG25Pipe hole connector, there are many types in stock, economical. Automation can be selectedG10orG10ProPneumatic outer tube connector to meet the requirements of automated connection.
J2044Male head inlet and outlet/Fuel nozzle

You can choose.G70JSpecial-shaped pipe connector, to meet the water/Oil can also meet the requirements of airtight leak detection, fast connection, reliable sealing and easy maintenance. According to the situation, you can also choose the shut-off valve versionG70J-VThe connector is automatically cut off to prevent internal fuel or water leakage.
Inlet and outlet quick connector

Facing the larger air inlet and outlet, or pipe fittings, low pressure test can be selectedG25Connector, larger pipe diameter or higher test pressure, large diameter can be selectedG35 (Available to80mmInner diameter), and has a grasping function.
Straight pipe or bore connector

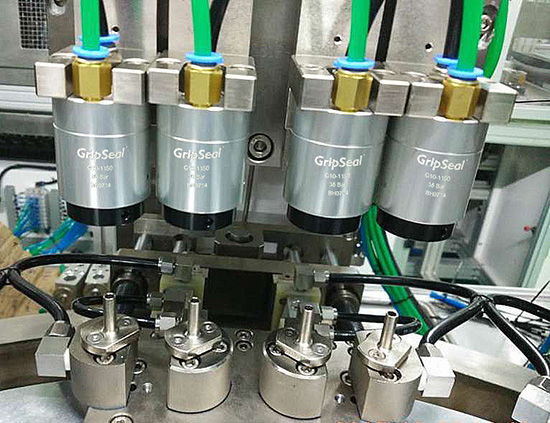

You can choose the one suitable for automation.G10/G15Quick connector, normal pressure8barBelow, it can meet most automated connections, and even flexible pallet testing methods pass test gases or other drive gases, with large tolerance requirements and friendliness to automated alignment. A variety of spot corresponding needs to meet fast delivery. And can customize various bayonet specifications according to needs. Now haveG10Pro、G15ProSmart connector for easy sensing of connector status.
Integrated connectivity solution

GripSeal provides type selection services and custom designs for automation companies, and provides optimized turnkey solutions based on GripSeal sealing and connection technology, which greatly reduces customer lead times and labor investment, and provides worry-free service to reduce type selection risk.

: connectivity scheme

Whether it is a standard nozzle or a special nozzle, GripSeal has customized a reliable quick connector based on a variety of sealing technologies to provide customers with a turnkey sealed connection solution. Ensure the consistency and stability of the sealed connection. Whether it is the ordinary bubble method or the higher airtight helium leak detection, we have a reliable connection solution.

: one second connection

GripSeal connectors are all based on1The second connection is the design point, which improves the connection efficiency at least compared with the traditional clock in hoop or winding thread scheme10Times more.

: instantaneous seal

The key to GripSeal connectors is an optimized sealing design that reduces the wear of the sealing ring and achieves a reliable seal while connecting. It can be sealed well when connected, especially in the case of leak detection or multi-pipeline sealing, our sealing reliability can be reduced90%The above connection leakage problem caused the test error.

: Ultra high pressure

from1bar，10bar，50bar，200bar，2000bar，3200bar GripSeal has a wide range of products to meet the testing needs of various pressure ranges, and has been validated for long-term use in laboratories and customer sites.

: rich spot

2000A variety of spot connectors, delivered on the same day. And different connectors can be quickly customized on a spot basis to meet the diverse requirements of customers.

: Worry-free service

GripSeal worry-free service greatly reduces the risk of customer selection, and effectively protects customers' investment, striving to reduce the cost of use throughout their lifespan.

Use GripSeal connectors to let customers test efficiencylift10doubleConnection leakage risklower90%The proportion of false positives in the test systemlower90%。
Select GripSeal Quick sealing joint, sealing is guaranteed!

The scope of industrial leak detection is very wide, involving almost all walks of life. Relatively speaking, we use it more widely in pneumatic leak detection systems, GripSeal We cooperate with many brand leak detector manufacturers in the industry to understand the continuous improvement requirements of leak detection for sealed connections, and actively develop new products.
Replace some inefficient or unreliable sealing solutions with excellent quick-sealing joints, and ultimately improve the overall leak detection efficiency of customers, making GripSeal quick-sealing joints great value for money!
