Appliance Water Heater Quick Connector Solutions - Water Heater Test Fittings - Threaded Connections

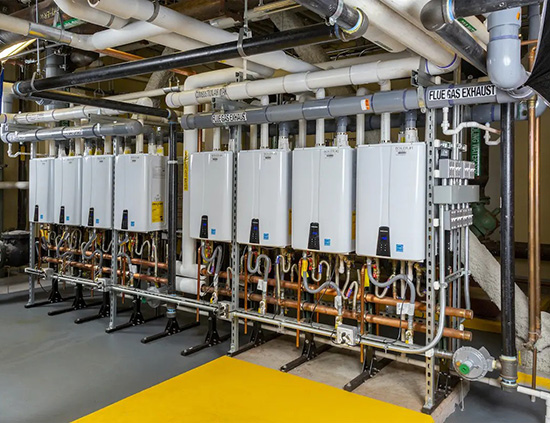

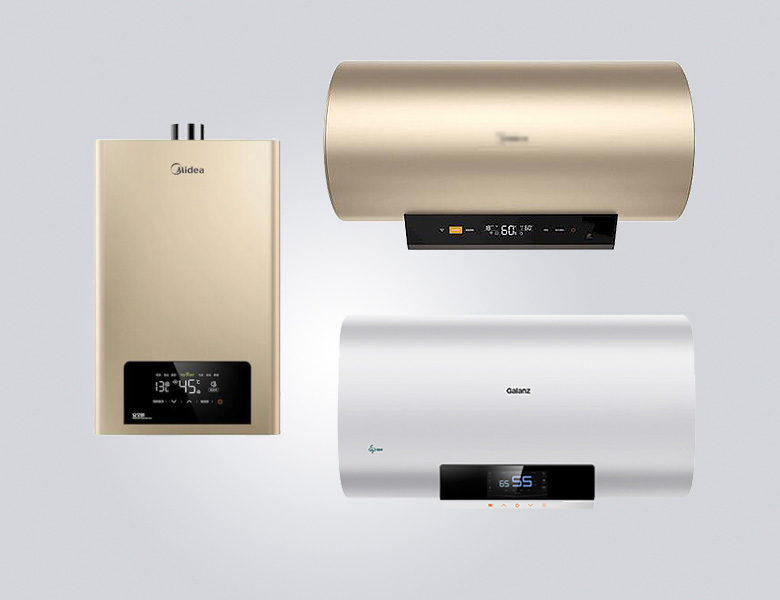

GripSeal Quick connectors for the household appliance water heater industry provide quick sealing connector solutions for comprehensive testing of water heaters (household or commercial), water heater valve bodies, water storage tanks, washing machines, mixed valves, bathroom fittings, smart toilets, etc., doubling the testing efficiency.

Home Appliance Water Heater Quick Connector Solution

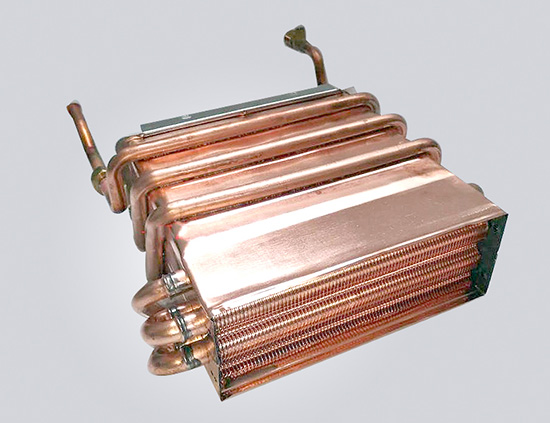

In the production process of water heaters, comprehensive tests, air tightness tests, etc. are required for the whole water heater, water tank, water storage tank body, etc. Designing some threaded nozzles or flange nozzles requires quick sealing connections. Most traditional solutions include threaded wound raw material tapes, or plugs plusORing, or simple chuck, etc., or cylinder and gasket crimp seal. The test medium may be cold water, hot water or gas, gas, etc.

1. Threaded wound raw material belt, under high pressure or high airtight requirements, the chance of micro-leakage is greatly increased. Once micro-leakage occurs, the entire test project needs to be re-performed, or misjudged, requiring expensive engineering maintenance analysis. And there is a risk of residual raw material belt, cleaning requires a lot of time. In addition, the number of water heater production processes is huge, wasting a lot of test time.

2. plug plusOCircles require more rotation time, increase the labor intensity of employees' hands and even cause occupational diseases. The actual connection time required is still too long for the short test time. plusOThe ring wears quickly and is not easy to detect, and the risk of misjudgment is relatively large.

3. Simple chuck: It cannot be locked under high pressure, and the seals are all hard contact, which causes greater wear and tear, and greater leakage and misjudgment rates. There is no auxiliary clamping design, which requires greater strength and increases labor intensity.

4. Thread position error is large: general automation is not easy to solve the problem of connection accuracy. The cylinder scheme is very challenging, and the cylinder thrust on some welded pipe fittings is too large, resulting in cracks during testing.

Home Appliance Water Heater Quick Connector Solution

Need to find a solution that can connect quickly and achieve reliable sealing under high water pressure and large position errors?

plan description

GripSeal quick connector, one-second connection, instant sealing

Internal thread connector

forR1/2, R3/4, AmericanNPTInternal thread, optionalG80Internal thread connectors, for some radiators, do water pressure or airtight leak testing, it only takes one second to reach a sealed connection, and can withstand pressure exceeding200bar。
External thread manual connector

For someG1/2, G3/4External thread orR1/2 R3/4External thread, you can choose special water heater.G60（G60C) series of GripSeal water heater special connectors, with the largest flow aperture in the industry, will not become a bottleneck at the connection position. newG60CAdopt optimized design to reduce the impact of scale, making it more convenient.
External thread pneumatic connector

G85VSeries to do the factory test of the whole machine, the pressure can reach20bar, very stable and durable, safe and reliable. The use of pneumatic drive clamping will greatly achieve the labor intensity of the operator, and it is very friendly to the threaded port and will not form a pinch.
Flange connectorG72

Designed for the flange port of the water tankG72Quick connector, pneumatic operation, to meet the needs of customers for quick clamping, the pressure can be reached20barAnd reduce labor intensity, large flow aperture, anti-scale design, can meet the long-term use of mass production.
Pneumatic connectorG10/G15

For automated testing of some valve bodies or connecting fittings,G10/G15It can meet the non-destructive fast connection and realize fully automated test. newG10PRO/G15PROWith sensors, it can more intelligently determine whether the connection is in place.
Air conditioner refrigeration quick connector

GripSeal appliance water heater quick connectors allow customers to avoid the need to wrap raw material tapes, twist plugs by hand, and increase system flexibility to meet multi-product co-line production. All quick connectors have been tested for pressure resistance and airtightness, and have been verified by on-site customers for many years.

: one second connection

GripSeal connectors are all based on1The second connection is the design point, which improves the connection efficiency at least compared with the traditional welding or winding thread solution10Times more.

: instantaneous seal

The key to GripSeal connectors is an optimized sealing design that reduces the wear of the sealing ring and achieves a reliable seal while connecting. It can be sealed well when connected, especially in the case of leak detection or multi-pipeline sealing, our sealing reliability can be reduced90%The above connection leakage problem caused the test error.

: high traffic connection

The water heater connector is designed according to the high flow rate to meet the customer's requirements for water flow or air flow, and will not become a bottleneck at the connection location.

: Anti-rust material

The main material is316Stainless steel, good anti-rust performance, both durable. Can withstand the high load of home appliance enterprises.

: Fast delivery

GripSeal has a large number of standard water heater connectors in stock to meet the actual needs of most water heater customers and can be delivered on the same day.

: Worry-free service

GripSeal worry-free service greatly reduces the risk of customer selection, and effectively protects customers' investment, striving to reduce the cost of use throughout their lifespan.

Using GripSeal connectors, there is no need to manually twist plugs, wrap raw material tapes or use simple chucks, allowing customers to test efficiencylift10doubleConnection leakage risklower90%The proportion of false positives in the test systemlower90%。

The home appliance water heater industry has a very large amount of testing, and the efficiency of quick connectors will be fully reflected. Similar applications also include connection testing in the production process of kitchens, bathrooms, washing machines, refrigerators, etc., including pipe fittings, valve bodies, joints, and sub-components
GripSeal continues to save testing time, reduce labor intensity, and reduce test errors for bulk customers
