Auto Parts Test Quick Connection Solution - Caliper Test Fittings - Water Test Fittings

GripSeal Auto parts industry quick connector for traditional gasoline engine hot test/Cold test, diesel engine hot/Cold test, caliper simulation test and air tightness test, transmission operation test, axle air tightness test, carbon pipe test, fuel injection pump and oil rail high pressure test, radiator, air conditioner, steering gear, wipers, exhaust pipe, filter, cooler, pipeline fittings, water tank air tightness or other functional tests provide quick connection solutions to double the test efficiency.

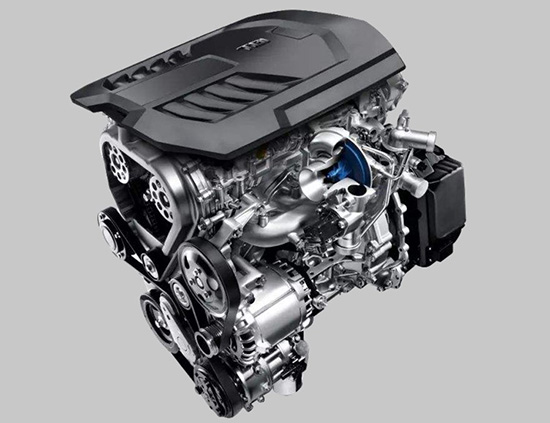

Auto parts testing quick connection solution

The production process of automotive parts requires extensive testing of each major component or the entire vehicle, including airtightness testing, performance testing, aging testing, etc. These test benches are usually very expensive and the test tempo is very tight. However, the testing process requires plugging and connecting various internal and external threads, fuel lines, water outlets, heterosexual nozzles, etc., which consumes a lot of connection time, is labor-intensive, and has a high chance of leakage. These leaks are not easy to detect and lead to more misjudgments, especially when there are many nozzles. It seriously affects the production rhythm, and the investigation is very difficult. Even due to misjudgment, high-priced products are scrapped in batches, with large potential losses.

Auto parts testing quick connection solution

Need a complete set of connector solutions that can quickly connect and ensure connection speed and sealing?

plan description

GripSeal quick connector, one-second connection, instant sealing, one-stop connection solution

Internal and external thread connector

You can choose.G80orG80SShort internal thread connectors, available in various lengthened neck versions, can be provided, whether it isM10stillM12Or other internal thread specifications,G80It can complete the threaded connection in one second and provide a high sealing level, which is easy to operate. For some larger threaded nozzles, such asM34Above, we also offer aluminum alloy versionsG80It is used for cooling ports in some engines.
flanged tube/Water inlet connector

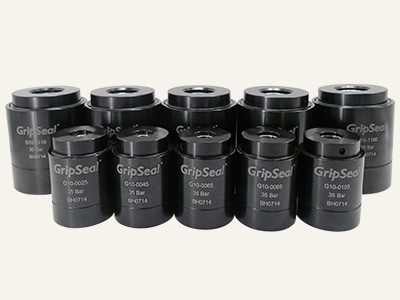

You can choose.G70The flange pipe connector can meet both water and airtight leak detection. If it is only airtight leak detection, you can chooseG35Tube hole connector, light and durable. Can be selected for low voltage occasionsG25Pipe hole connector, there are many types in stock, economical. Automation can be selectedG10orG10ProPneumatic outer tube connector to meet the requirements of automated connection.
J2044Male head inlet and outlet/Fuel nozzle

You can choose.G70JSpecial-shaped pipe connector, to meet the water/Oil can also meet the requirements of airtight leak detection, fast connection, reliable sealing and easy maintenance. According to the situation, you can also choose the shut-off valve versionG70J-VThe connector is automatically cut off to prevent internal fuel or water leakage.
Inlet and outlet quick connector

Facing the larger air inlet and outlet, or pipe fittings, low pressure test can be selectedG25Connector, larger pipe diameter or higher test pressure, large diameter can be selectedG35 (Available to80mmInner diameter), and has a grasping function.
J2044Female head fuel port

You can choose.G90JseriesJ2044Quick connector, good design can meet the oil test, and after the test is completed, the internal fuel is vented and blown out, and the built-in shut-off valve automatically shuts off the fuel when the connector is removed.
Special-shaped nozzle quick connector

For some special nozzles, a customized connector solution can be adopted.G10/G15Pneumatic connectors can meet some casting tests where surface dimensions and tolerances are not very good, and even special buckles are designed to prevent detachment and increase safety.
Ultra high pressure fuel system connector

With the development of high-pressure fuel injection technology, the test pressure of some fuel injection pumps and oil rails has reached2000bareven3000barIt poses a very big challenge to the connector.G60UHPandG60UHP3The series is an ultra-high voltage connector developed for this application, reaching the highest pressure level3200barIt can meet the operation test of the fuel injection pump.

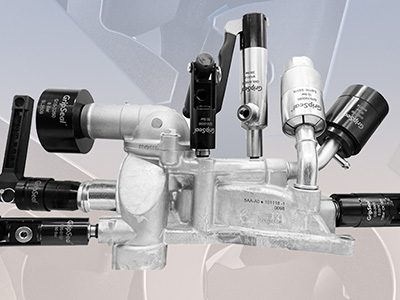

: one second connection

GripSeal connectors are all based on1The second connection is the design point, which improves the connection efficiency at least compared with the traditional clock in hoop or winding thread scheme10Times more.

: instantaneous seal

The key to GripSeal connectors is an optimized sealing design that reduces the wear of the sealing ring and achieves a reliable seal while connecting. It can be sealed well when connected, especially in the case of leak detection or multi-pipeline sealing, our sealing reliability can be reduced90%The above connection leakage problem caused the test error.

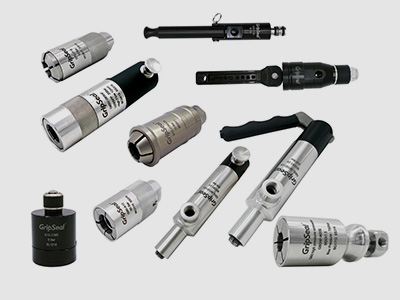

: connectivity scheme

Whether it is a standard nozzle or a special nozzle, GripSeal various sealing technologies are used to customize reliable quick connectors to provide customers with turnkey sealed connection solutions. To ensure the consistency and stability of sealed connections, especially for engine customers, a complete set of GripSeal connectors ensures a low leakage rate and connection speed of the seal.

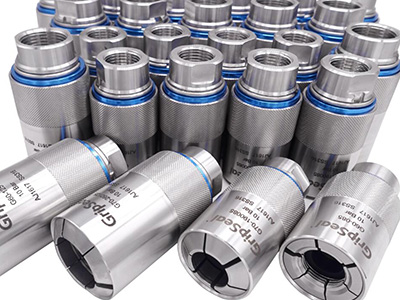

: Ultra high pressure

from1bar，10bar，50bar，200bar，2000bar，3200bar GripSeal has a wide range of products to meet the testing needs of various pressure ranges, and has been validated for long-term use in laboratories and customer sites.

: reference customer

From foreign auto parts manufacturers to domestic engine and parts manufacturers, tens of thousands of GripSeal connectors are helping customers save testing time and reduce test errors in the market.

: Worry-free service

GripSeal worry-free service greatly reduces the risk of customer selection, and effectively protects customers' investment, striving to reduce the cost of use throughout their lifespan.

Use GripSeal connectors to let customers test efficiencylift10doubleConnection leakage risklower90%The proportion of false positives in the test systemlower90%。

Whether it is traditional automotive parts, new energy automotive parts, or some intermediate industrial parts testing
Select GripSeal comprehensive connectivity solution to help improve test efficiency, reduce personnel labor intensity, and reduce the risk of misjudgment
