GripSeal C9 docking board assembly enhances the reliability of tray-type connectors in the new energy industry

New energy customers need to pay attention to batteriespackElectric drive and other core componentsEOL/DCRHow to improve the reliability of connectors in electrical performance testing, especially in pallet production, is an important application challenge.

Some customers may have to use some corresponding female connectors for temporary testing purposes. It is believed that the number of tests is not large, but most of the pins, jacks, clips and other connectors used in automotive part testing cannot meet the long-term number of plugging and unplugging, and many are marked as not pluggable.500This time, in fact, if you add tests such as power-on, it may be100-200Can't be satisfied then. but1-2The workload of rewiring or replacing the connectors of a core interface is tremendous, which can even bring down the entire test system.

GripSealC9Butt plate assemblyIt is mainly an overall solution designed for tray docking testing in the new energy automotive industry. A typical example of a docking board test system may include liquid-cooled test equipment docking, whole package airtight test equipment docking,EOLTest equipment docking,DCRTest equipment docking and other requirements, as well as several tray end docking. And the electrical connection test is more cumbersome and complex application problems. Including communication port test interface,IPSTest connector, fast charge test connector, high voltage test connector, combination test connector, etc.

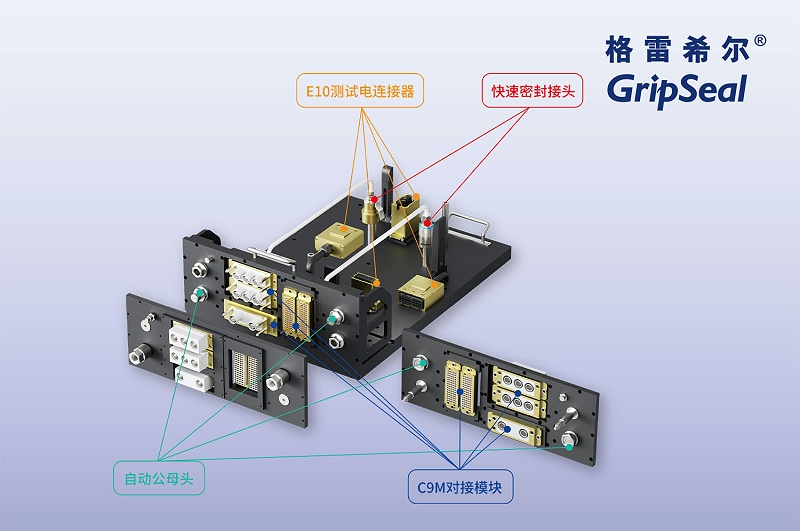

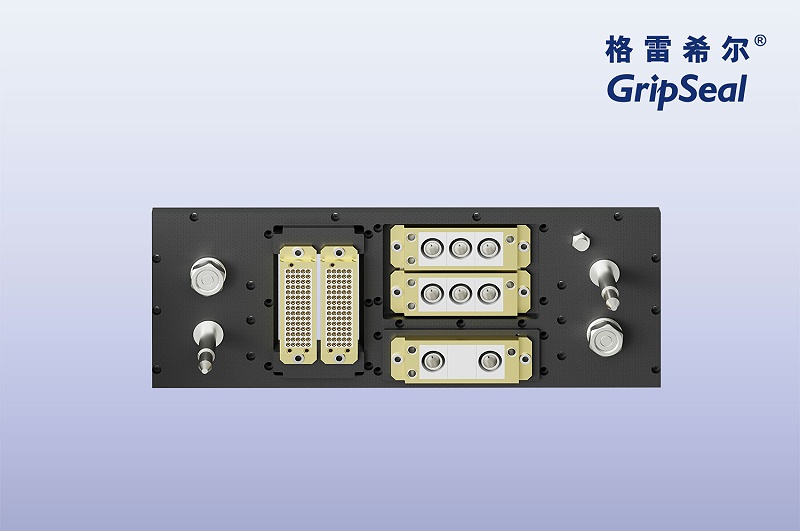

C9The structure of the docking board assembly includes:

1、C9BFixing plate

2、1one or moreC9MAutomatic docking module

3、1one or moreESeries test electrical connectors

4、1one or moreGSeries Quick Seal Coupling

5、1One or twoCSeries automatic male and female head
