Application case of motor controller housing airtight detection quick sealing joint

Case name

Motor controller housing airtight detectionQuick seal joint applicationcase

customer demand

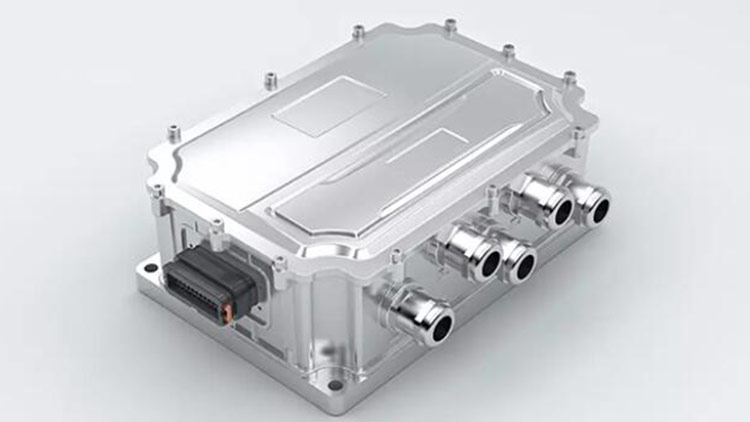

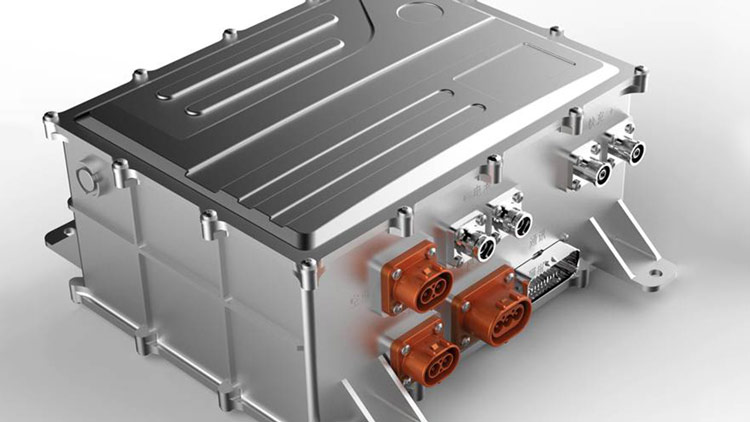

Industry manufacturer customer, is a company that ownsITNew energy vehicles are a key development direction for high-tech private enterprises in the three major industrial groups of automobiles and new energy. Among them, it is necessary to test the airtightness of the motor controller housing. Customers encounter a very cumbersome problem, that is, they need to seal various interfaces on the shell, such as high-voltage interfaces, cable interfaces, explosion-proof valve interfaces, etc., and the interface specifications vary, requiring quick sealing joint applications.

Program introduction

Through contact with customers, we provide them withGripSealQuick sealing connector scheme. When the electric control box shell is tested for airtightness, it is necessary to seal various interfaces on the shell, such as high-voltage interfaces, cable interfaces, and explosion-proof valve interfaces.G25Series manual connector is a sealed joint for different inner diameter interfaces, fast operation and customizationG25Quick connectors can be used to seal various high-voltage interfaces and cable interfaces;G80Series is a sealing joint that can target internal threads, which can be applied to high-pressure airtightness testing of various automotive partsG80The test joint can be plugged with waterproof ventilation holes.

Program advantage

Realize fast sealing connection, complete connector models, high-quality material selection, reliable and durable, fast operation, and improve testing efficiency.

Customer feedback

Use GripSealThe quick-sealing connector is used for the airtightness test of the motor controller housing, which significantly reduces the labor intensity of the operator and reduces the risk of misjudgment in the test. It is connected in one second and sealed instantaneously. We are very satisfied with GripSeal product quality and service.

application development

GripSealQuick sealing joints can also be applied to other test items of new energy vehicles, such as motor cooling nozzle sealing tests, batteriesPACKInclude cooling water plate and corresponding brake system, heat dissipation, axle, steering gear, pipeline, pump valve and other quick sealing connection tests.

related products

G25Series Quick Seal Coupling、G35Series Quick Seal Coupling、G70Series Quick Seal Coupling、G80Series Quick Seal Coupling
