Case name

Airtightness leak detection test Quick seal joint application case

customer demand

A customer of industrial leak detection equipment is an automation manufacturer specializing in air tightness testing equipment, which integrates design and manufacture. The customers it cooperates with are mainly auto parts factories, and they all have customized services for various industrial testing equipment. Among them, the exhaust manifold flow sealing testing equipment customized for auto parts manufacturers involves the problem of plugging and connecting the exhaust manifold, which needs to be usedQuick seal test joint 。

Program introduction

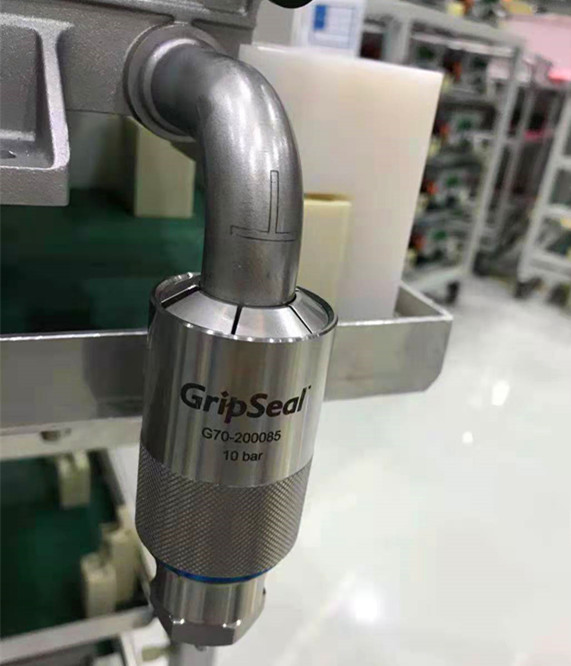

According to the equipment manufacturer's manifold plugging requirements, we provided him with the relevant GripSealSeal joint scheme. Low voltage test selectionG25Series Internal Expansion Series ConnectorsLarger pipe diameter or higher test pressure, large diameter can be selectedG35，G35The series of test joints have their own locking claws, which are pressure-assisted locking to ensure the safety during testing; when the test requires flow, chooseG70Series external card type quick connector,G70The straight-through flow hole ensures the flow rate during the test. The end face adopts a small cone angle sealing ring to achieve sealing, and also ensures the sealing of the joint under a certain lateral load to ensure the safe and stable test.

Program advantage

To achieve fast sealing connection, careful material selection, safe and reliable, in line with high pressure, large flow, high and low temperature requirements, complete connector models, simple operation, improve overall testing efficiency.

Customer feedback

Use GripSealQuick connectors are used for test connections for airtight leak detection. It can improve the customization efficiency of the overall equipment, seal reliably and durably, connect in one second, seal instantaneously, and is very satisfied with GripSeal product quality and service.

application development

GripSealQuick seal joint can also be applied to other items of industrial leak detection, batch industrial leak detection is inseparable from the connection, such as bubble test, air pressure leak detector, helium leak detector, water pressure testing device, oil pressure testing device and other pressure levels of leak testing.

related products

G25Series of low pressure pipe inner diameter sealing connectors,G35Series high pressure pipe inner diameter sealing connector,G70Series special-shaped pipe connectors
