Quick Connector Solutions for Air Conditioning Refrigeration - Operational Test Connectors - Leak Detection Test Connectors

Project introduction

GripSeal Quick connectors for the air conditioning and refrigeration industry provide high pressure and safe and reliable quick connection solutions for compressors, evaporators, condensers, expansion valves, copper pipe fittings, and plate radiators in the air conditioning and refrigeration industry, doubling the testing efficiency.

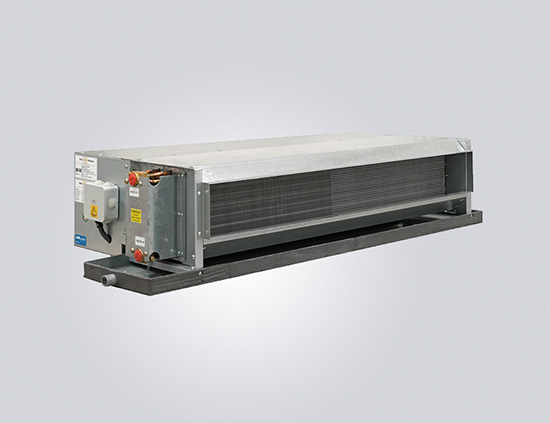

Air conditioning refrigeration quick connector solution

project requirement

In the production process of air conditioning and refrigeration, it is necessary to do high pressure testing, operation testing, or pouring refrigerant or lubricating oil on compressors, evaporators, condensers, copper pipe fittings, plate radiators, etc. test pressure up to50barThe above, especially for some large-diameter pipe fittings, poses a significant challenge in connection. Some traditional methods are plug cap welding, copper pipe fitting welding, thread winding raw material belt, thread plus ordinaryOType rings or use ordinary connectors.

1. Welding poses a risk of high-temperature explosion, and on-site refrigerants are flammable products. Additionally, multiple processes such as welding and cutting are required, which wastes pipe fittings and requires oxidation removal.

2. Threaded wound raw material belt, under high pressure or high airtight requirements, the chance of micro-leakage is greatly increased. Once micro-leakage occurs, the entire test project needs to be re-performed, or misjudged, requiring expensive engineering maintenance analysis. And there is a risk of residual raw material belt, cleaning requires a lot of time.

3. Ordinary low-cost connector, Under high pressure, it cannot be locked or there is no pressure-assisted locking design, which poses a significant risk of flying out. In extreme cases, safety accidents are caused, especially in large-diameter high-pressure testing occasions, which are very unsafe. In order to reduce production costs, some connectors require precise adjustment by the operator. Once there is an adjustment error or unfamiliarity, the probability of the connector flying out is greatly increased.

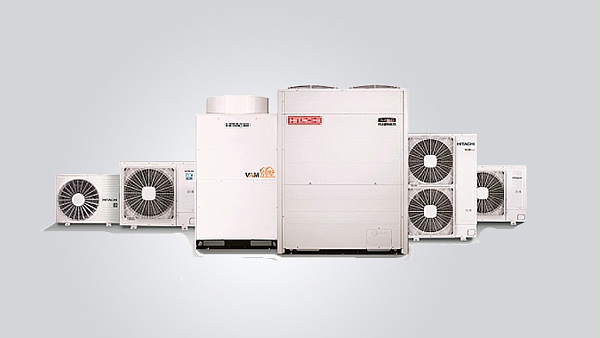

Air conditioning refrigeration quick connector solution

Need a solution that connects quickly and securely under high pressure?

plan description

GripSeal quick connector, one second connection, instant sealing, high voltage safety!

Straight pipe quick connector

For copper pipes, aluminum pipes, low-carbon steel pipes, stainless steel pipes, titanium pipes, etc., the hardness is lower thanHRC35Deuzhituan, ourG30/G35Straight pipe connectors can provide the highest70BarThe reliable seal, with a strong and high-hardness minion mechanism and auxiliary clamping design, securely grips the key and provides10E-6For compressor pressure or other connecting parts, it is a safe and reliable solution.
Expansion tube quick connector

For flaring copper pipes, aluminum pipes, low-carbon steel pipes, etc., the hardness is lower thanHRC35Expansion tube, oursG70KSeries andG70K-HFThe series can satisfy50barReliable seal. among themG70KIt can meet most of the airtight testing and pressure test requirements, andG70K-HFIt is a high-flow version, which meets the requirements of high-flow, high-pressure and high-temperature operation tests such as compressors.
Internal thread connector

forR1/2, R3/4Internal thread, optionalG80Internal thread connector, for some radiators, water pressure will be airtight leak detection, it only takes one second to reach the sealed connection, and it can withstand pressure exceeding350bar。
External thread connector

For someSAEExternal thread orRExternal thread, optionalG60Series orG85Series to do factory test of the whole machine, or parts test or lubricating oil filling, the pressure can reach50baror200barIt is very durable, safe and reliable.
Custom nozzle connector

No matter whether it is a flared pipe or a straight pipe, large or small diameter, based on GripSeal standard sealing technology, we can quickly customize quick connectors that meet customers' high flow, high pressure, temperature, and media requirements to achieve fast sealing.

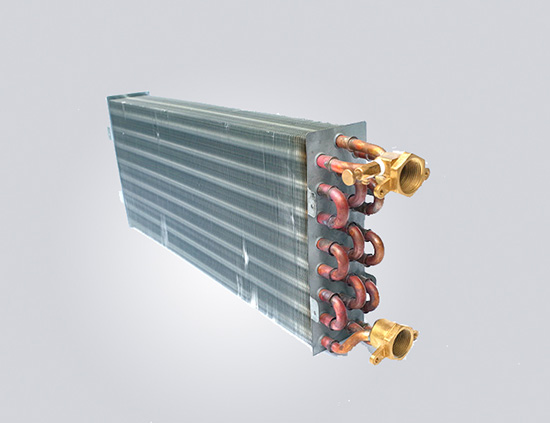

Air conditioner refrigeration quick connector

GripSeal air conditioning and refrigeration quick connectors allow customers to avoid the need for welding, winding raw materials, and flying joints under necessary safety measures. All quick connectors have been tested for pressure resistance and airtightness, and have been verified by on-site customers for many years.

Program advantage

: one second connection

GripSeal connectors are all based on1The second connection is the design point, which improves the connection efficiency at least compared with the traditional welding or winding thread solution10Times more.

: instantaneous seal

The key to GripSeal connectors is an optimized sealing design that reduces the wear of the sealing ring and achieves a reliable seal while connecting. It can be sealed well when connected, especially in the case of leak detection or multi-pipeline sealing, our sealing reliability can be reduced90%The above connection leakage problem caused the test error.

: High pressure safety

Air conditioning and refrigeration connectors are designed with pressure support and sufficient material strength to avoid the risk of the connector flying out under necessary safety measures and proper maintenance.

: customization capability

No matter whether it is a standard nozzle or a special nozzle, GripSeal customizes reliable quick connectors based on a variety of sealing technologies to provide customers with turnkey sealed connection solutions.

: Fast delivery

GripSeal has a large number of standard off-the-shelf connectors that meet the actual needs of most air conditioning and refrigeration customers and can be delivered on the same day.

: Worry-free service

GripSeal worry-free service greatly reduces the risk of customer selection, and effectively protects customers' investment, striving to reduce the cost of use throughout their lifespan.

Using GripSeal connectors eliminates the need to solder and wrap raw tape, allowing customers to test efficiencylift10doubleConnection leakage risklower90%The proportion of false positives in the test systemlower90%Avoid the risk of the connector flying out.

Air conditioning and refrigeration, whether it is household air conditioning, commercial air conditioning or large water cooling units, or floor heating, automotive heat dissipation, automotive air conditioning, cooling-related components
GripSeal products can be used to achieve a safe and reliable high pressure sealed connection
