Hydraulic valve test
Quick Connector Solutions for Hydraulic Valves
Project introduction

GripSeal Hydraulic valve quick connector provides fast and reliable connection solutions for hydraulic pumps, hydraulic cylinders, hydraulic valves, pipe fittings, directional valves, etc. in the hydraulic industry, as well as various steam valves, high pressure valves, ball valves, butterfly valves, diaphragm valves, etc. Pressure resistance up to350barAnd even some2000barConnection solutions for the hydraulic and valve industries/Pressure resistance, water, oil and other test aids make the test safer and double the test speed!

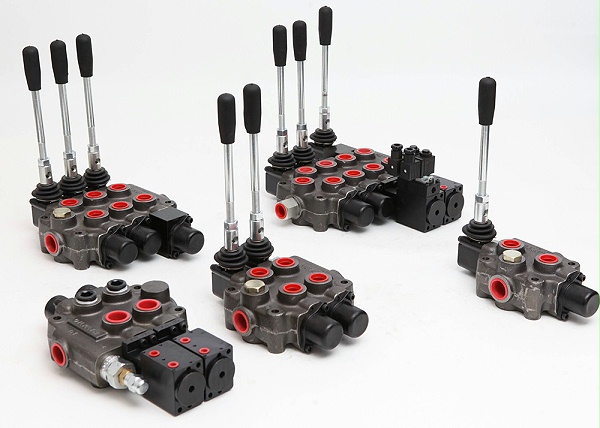

Quick Connector Solutions for Hydraulic Valves

project requirement

Hydraulic components or valve assemblies are generally connected with threaded interfaces, with high test pressure, long test time and large quantity.350barFromR1/4, R3/4, R1/2, R3/4toM22/M24/M27The traditional solution requires many threaded connections or simple hand-screwed joints, or cylinder plugging. But it is very time-consuming, the connection efficiency is low, and there are leaks under high pressure, etc., resulting in a large number of unsuccessful tests or misjudgments. The potential danger caused by high pressure is also a point of great concern.

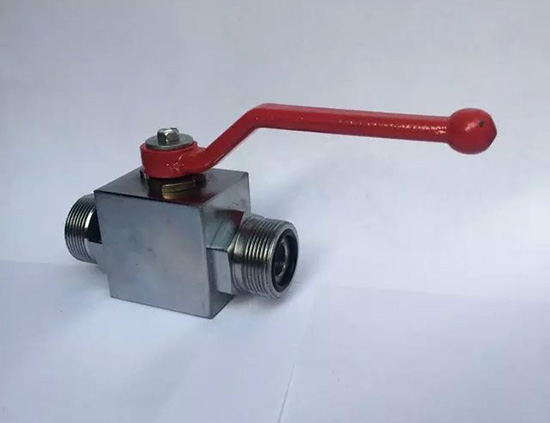

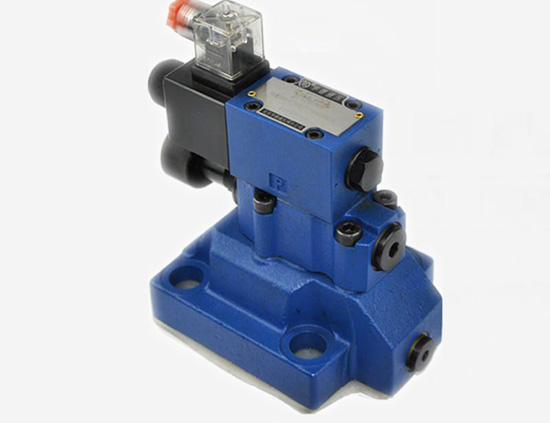

Quick Connector Solutions for Hydraulic Valves  Quick Connector Solutions for Hydraulic Valves

Do you need a fast, safe and reliable connection sealing solution?

plan description

GripSeal quick connector, one-second connection, instant sealing, safe and reliable threaded connection

  • Internal thread connector

    For the hydraulic industryG80HInternal thread connectors, available in various lengthened neck versions, can meet the testing needs of various internal threads, the highest350bar. Handle and pneumatic versions are available. Some regular internal threads are available from stock, and customization can also be provided to meet some special thread or end face needs.

  • External thread connector

    G60CExternal threaded connectors, which focus on GripSeal many years of sealing and joining technology, with pressure up to100barMoreG60UHPModel, pressure level up to2000bar. In addition, we have someG85The handle of/Pneumatic connection solution, easier to use, pressure levels up to300barIt can meet the testing requirements of various inner cone threads.

  • Integrated connectivity solution

    We can also custom-design special connectors for hydraulic and door industry companies with special threaded interfaces or special specifications. Based on GripSeal sealing and connection technology, we can design connectors with different pressures, interfaces, media, and flow requirements.

Program advantage
one second connection

one second connection

GripSeal connectors are all based on1The second connection is the design point, which improves the connection efficiency at least compared with the traditional winding thread and hand twisting scheme10Times more.

instantaneous seal

instantaneous seal

The key to GripSeal connectors is an optimized sealing design that reduces the wear of the sealing ring and achieves a reliable seal while connecting. It can be sealed well when connected, especially in the case of leak detection or multi-pipeline sealing, our sealing reliability can be reduced90%The above connection leakage problem caused the test error.

Ultra high pressure

Ultra high pressure

from1bar，10bar，50bar，200bar，2000bar，3200bar GripSeal has a wide range of products to meet the testing needs of various pressure ranges, and has been validated for long-term use in laboratories and customer sites.

rich spot

rich spot

conventional100barfor a whileG60CIn stock, it can meet some conventional external threads on the market. G80/G85Internal and external threads are also available in large quantities.

Worry-free service

Worry-free service

GripSeal worry-free service greatly reduces the risk of customer selection, and effectively protects customers' investment, striving to reduce the cost of use throughout their lifespan.

GripSeal connector

Using GripSeal Connectivity Scheme
Reduce employee labor intensity and improve testing efficiency
Double the test speed
Risk of connection leakagelower90%

From hydraulic component manufacturers, hydraulic assemblies, heavy industrial hydraulic users, valve manufacturers, valve components, and valve users, there are a large number of threads that need to be quickly connected and sealed
Only one set of manual or automatic connectors is required, which will greatly improve the overall test efficiency and reduce invalid working hours
