Project introduction

GripSeal Instrumentation quick connectors for various pressure sensors/Pressure transmitter industry testing, calibration air pressure, high and low temperature experiments, etc. provide fast and reliable connection solutions. No need to wrap raw material tapes, no need to tighten manually,1Connect in seconds, seal instantly, double the test speed, and the maximum pressure can be reached2000bar。

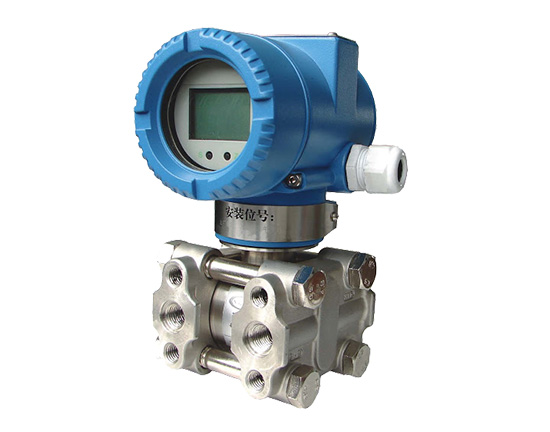

Pressure Transmitter Sensor Quick Connection Solution

project requirement

Instrument manufacturers generally use a large number of threaded interfaces, with external threadsM20X1.5、M14X1.5orG1/2, G1/4And so on, and some internal threaded interfaces1/4NPT， G1/4Or other specifications of threads. During production and testing, it is necessary to frequently1One or more sensors for pressure test, calibration of air pressure or high and low temperature cycle. Traditional solutions require many threaded connections or simple hand-screwed joints, or cylinder plugging. But it is very time-consuming, the connection efficiency is low, and there are leaks under high air pressure.

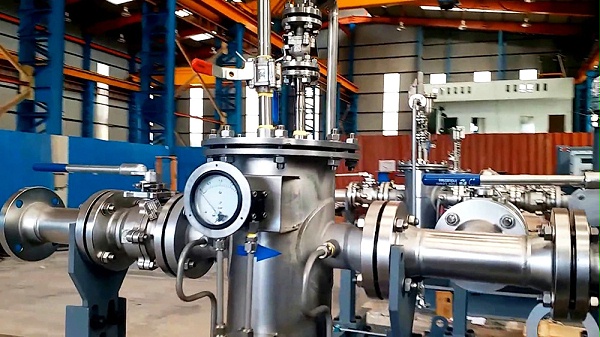

Pressure Transmitter Sensor Quick Connection Solution

Some specialized calibration mechanisms also involve a large number of threaded interfaces that need to be calibrated. High-precision calibration equipment is expensive, but threaded connections waste equivalent calibration time, resulting in low calibration efficiency.

Need a fast and reliable connection solution? Quickly complete sensor connection testing.

plan description

GripSeal quick connector, one-second connection, instant sealing, one-stop connection solution

External thread connector

G60CInstrument special external thread connector, focusing on GripSeal many years of sealing and connection technology, converted to instrument optimization design, and has a unified external thread interface, different specifications of the use of connections. whether it isM20X1.5stillM14X1.5Or something elseG1/2, G1/4And other specifications are available in stock, and the pressure is up to100barMoreG60UHPModel, pressure level up to2000bar. In addition, we have someG85The handle of/Pneumatic connection solution, easier to use, pressure levels up to300barIt can meet the testing requirements of various inner cone threads.
Internal thread connector

You can choose.G80orG80SShort internal thread connectors, available in various lengthened neck versions, can meet the testing needs of various internal threads, pressure from50bar to350barUnequal. Handle and pneumatic versions are available.
Integrated connectivity solution

We can also design multi-connector combination solutions for batch testing for instrumentation companies to meet the collinear testing of connectors of various specifications. By quickly changing connectors, the connection requirements of different threads can be achieved and the convenience can be improved.

Program advantage

: one second connection

GripSeal connectors are all based on1The second connection is the design point, which improves the connection efficiency at least compared with the traditional clock in hoop or winding thread scheme10Times more.

: instantaneous seal

The key to GripSeal connectors is an optimized sealing design that reduces the wear of the sealing ring and achieves a reliable seal while connecting. It can be sealed well when connected, especially in the case of leak detection or multi-pipeline sealing, our sealing reliability can be reduced90%The above connection leakage problem caused the test error.

: Ultra high pressure

from1bar，10bar，50bar，200bar，2000bar，3200bar GripSeal has a wide range of products to meet the testing needs of various pressure ranges, and has been validated for long-term use in laboratories and customer sites.

: rich spot

conventional100barThe followingG60CIn stock, it can meet some conventional external threads on the market. G80/G85Internal and external threads are also available in large quantities.

: Flexibility testing

A variety of specifications share a tail thread, which is convenient for customers to quickly switch product models with a unified fixture interface. Let the same test system be easily compatible with stability testing of different product models.

: Worry-free service

GripSeal worry-free service greatly reduces the risk of customer selection, and effectively protects customers' investment, striving to reduce the cost of use throughout their lifespan.

Use GripSeal connectivity solution to reduce employee labor intensity and improve testing efficiency, doubling the testing speed and exposing the risk of connection leakagelower90%。

From the instrumentation manufacturer to the instrumentation user, or the calibration mechanism, there are a large number of threads that require quick connection and sealing
Only one set of manual or automatic connectors is required, which will greatly improve the overall test efficiency and reduce invalid working hours
