Project introduction

GripSeal Automation integrator Quick Connectors provides high-quality connectivity services to automation customers in a wide range of industries, whether it is automotive parts/Automated production of new energy vehicles, home appliance water heaters, or automated assembly and testing processes such as instrumentation, valves, and pipe fittings all involve a large number of connection problems such as threads, nozzles, and special-shaped nozzles. GripSeal reliable sealing connection technology and customized design capabilities will greatly simplify the internal design requirements of automation companies, ensure connection and sealing performance, and shorten the cycle of automation projects.

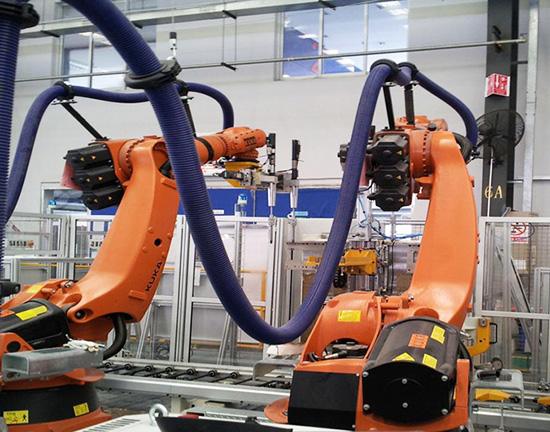

Automation Integrator Quick Connector Solutions

project requirement

Automation integrators, especially automotive parts automation testing is the current trend. Due to the diverse needs of automation companies facing customer parts, in addition to standard products, there are many customized special-shaped nozzles that need to be dealt with, which takes up a lot of project managers' time. These connection and sealing details greatly affect the performance of the overall test equipment, such as low connection efficiency, long test cycle, high test misjudgment, and undurable connectors. Once not handled properly, it may cause the end point customer's experience, and even affect the acceptance of the entire large project. The project cycle is lengthened, and the potential loss and risk are very large. Automation project managers also have some selection risks, many indirect purchases or insufficient communication of connection requirements. If not optimized and selected correctly, it will also lead to some losses due to wrong model selection. These additional losses are all borne by the project. There are also some very challenging applications, such as ultra-high voltage or smart connectors.

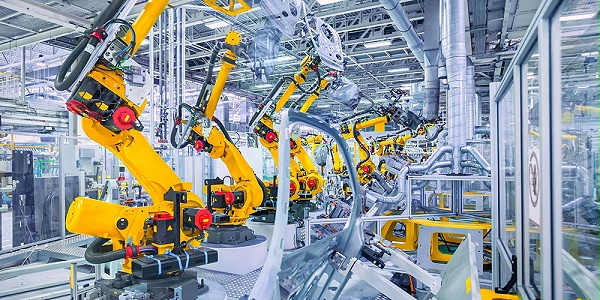

Automation Integrator Quick Connector Solutions

Need to find a reliable and comprehensive connectivity solution company that can participate in the optimization design and selection?

plan description

GripSeal quick connector, one-second connection, instant sealing, one-stop connection solution

Straight pipe or bore connector

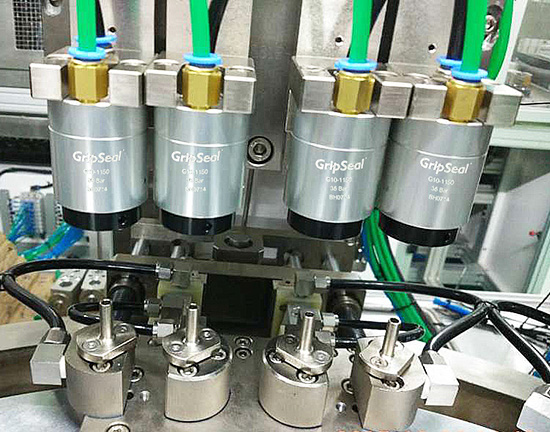

You can choose the one suitable for automation.G10/G15Quick connector, normal pressure8barBelow, it can meet most automated connections, and even flexible pallet testing methods pass test gases or other drive gases, with large tolerance requirements and friendliness to automated alignment. A variety of spot corresponding needs to meet fast delivery. And can customize various bayonet specifications according to needs. Now haveG10Pro、G15ProSmart connector for easy sensing of connector status.
Internal and external thread connector

You can choose.G80orG80SShort internal thread connectors, available in various lengthened neck versions, can be provided, whether it isM10stillM12Or other internal thread specifications,G80It can complete the threaded connection in one second and provide a high sealing level, which is easy to operate. For some larger threaded nozzles, such asM34Above, we also offer aluminum alloy versionsG80, used in some engine cooling ports. Automatic internal thread applications can be selectedG80PA series of pneumatic internal thread fittings meet the requirements of high-frequency automated thread testing.
flanged tube/Water inlet connector

You can choose.G70The flange pipe connector can meet both water and airtight leak detection. If it is only airtight leak detection, you can chooseG35Tube hole connector, light and durable. Can be selected for low voltage occasionsG25Pipe hole connector, there are many types in stock, economical. Automation can be selectedG10orG10ProPneumatic outer tube connector to meet the requirements of automated connection.
J2044Male head inlet and outlet/Fuel nozzle

You can choose.G70JSpecial-shaped pipe connector, to meet the water/Oil can also meet the requirements of airtight leak detection, fast connection, reliable sealing and easy maintenance. According to the situation, you can also choose the shut-off valve versionG70J-VThe connector is automatically cut off to prevent internal fuel or water leakage.
Male and female docking plates and male and female connectors

For male and female connectors in some pallet applications, we provide automation integrators with optimized, drip-free male and female connectors that are durable10More than 10,000 times plugging and unplugging, and can provide male and female docking board design.
Inlet and outlet quick connector

Facing the larger air inlet and outlet, or pipe fittings, low pressure test can be selectedG25Connector, larger pipe diameter or higher test pressure, large diameter can be selectedG35 (Available to80mmInner diameter), and has a grasping function.
Special-shaped nozzle quick connector

For some special nozzles, a customized connector solution can be adopted.G10/G15Pneumatic connectors can meet some casting tests where surface dimensions and tolerances are not very good, and even special buckles are designed to prevent detachment and increase safety.
Ultra high pressure fuel system connector

With the development of high-pressure fuel injection technology, the test pressure of some fuel injection pumps and oil rails has reached2000bareven3000barIt poses a very big challenge to the connector.G60UHPandG60UHP3The series is an ultra-high voltage connector developed for this application, reaching the highest pressure level3200barIt can meet the operation test of the fuel injection pump.
Integrated connectivity solution

GripSeal provides type selection services and custom designs for automation companies, and provides optimized turnkey solutions based on GripSeal sealing and connection technology, which greatly reduces customer lead times and labor investment, and provides worry-free service to reduce type selection risk.

Program advantage

: connectivity scheme

Whether it is a standard nozzle or a special nozzle, GripSeal various sealing technologies are used to customize reliable quick connectors to provide customers with turnkey sealed connection solutions. Ensure the consistency and stability of the sealed connection.

: one second connection

GripSeal connectors are all based on1The second connection is the design point, which improves the connection efficiency at least compared with the traditional clock in hoop or winding thread scheme10Times more.

: instantaneous seal

The key to GripSeal connectors is an optimized sealing design that reduces the wear of the sealing ring and achieves a reliable seal while connecting. It can be sealed well when connected, especially in the case of leak detection or multi-pipeline sealing, our sealing reliability can be reduced90%The above connection leakage problem caused the test error.

: Ultra high pressure

from1bar，10bar，50bar，200bar，2000bar，3200bar GripSeal has a wide range of products to meet the testing needs of various pressure ranges, and has been validated for long-term use in laboratories and customer sites.

: rich spot

2000A variety of spot connectors, delivered on the same day. And different connectors can be quickly customized on a spot basis to meet the diverse requirements of customers.

: Worry-free service

GripSeal worry-free service greatly reduces the risk of customer selection, and effectively protects customers' investment, striving to reduce the cost of use throughout their lifespan.

Use GripSeal connectivity solution to connect automation integrators to the solution design cyclesave70%The cost of developing a connectivity solutionlower50%Connection leakage risklower90%The proportion of false positives in the test systemlower90%。
